SVEN SF-08E-16

8 sockets surge protector, 3680 W

Catalog Electrical Equipment Surge Protectors, Power Strips & Over Voltage Protectors SVEN SF-08E-16

AN: SV-021603 (1,8 m), SV-021610(3 m), SV-021726 (5 m)

SVEN SF-08E-16

8 sockets surge protector, 3680 W

Short product description:

Varistor protection against high-voltage impulse noise
Children protection
Maximum permissible load 3680 W
Wall mountable

All features

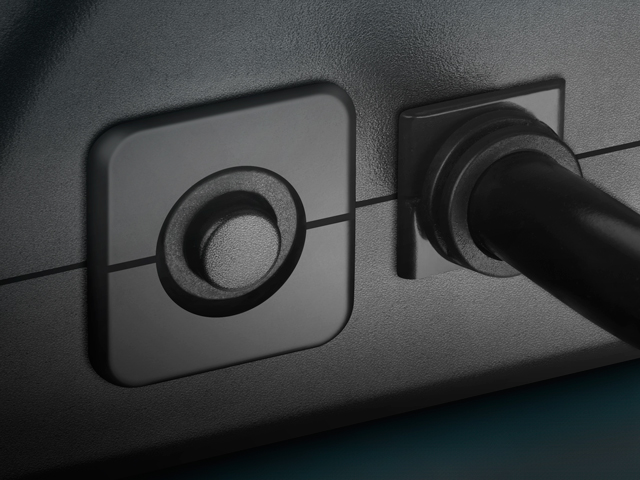

Automatic fuse against overloads and short circuits

Automatic resettable thermal fuse helps quickly continue operation once protection state is restored.

Resistant to all issues

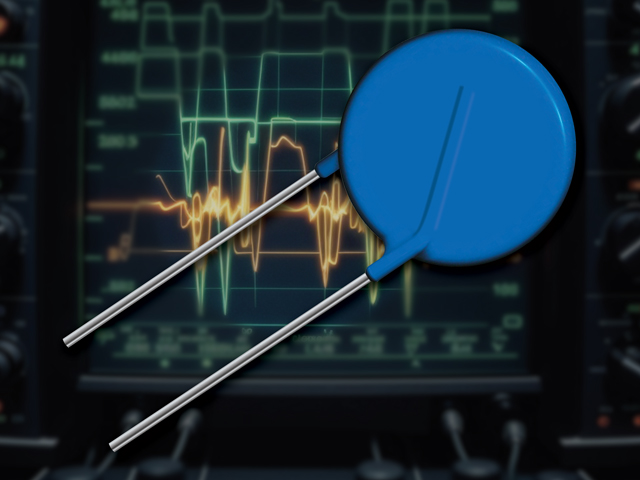

Power strip is ready to operate in the most "troublesome" electrical networks. Varistor protection helps the power strip easily overcome high-voltage and pulse noises.

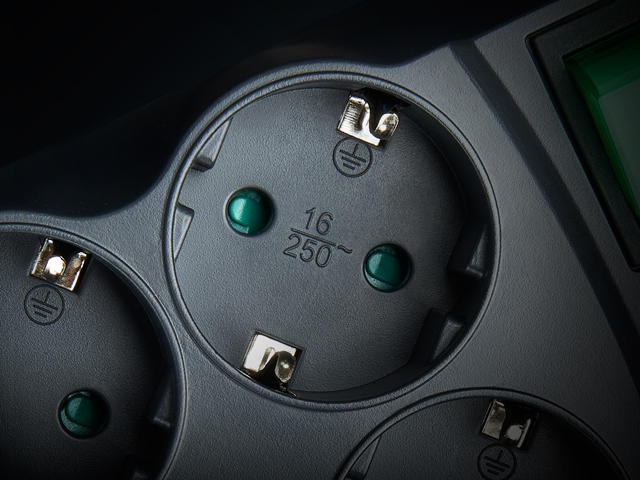

Protective shutters against foreign objects

Durable shutters on the sockets allow not to worry about safety of children or pets.

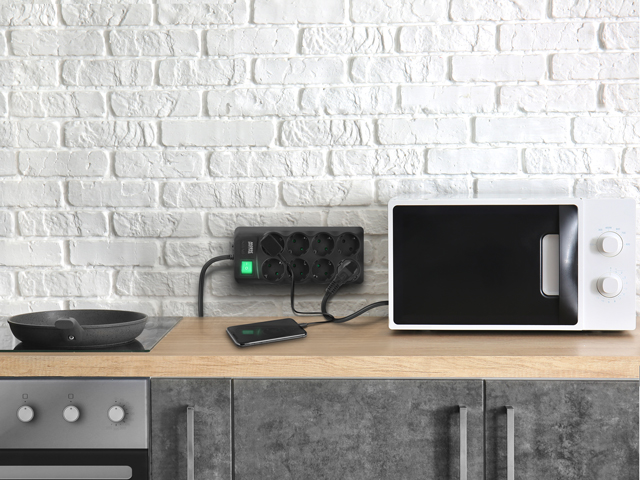

Wall-mounting in any position

Wall fittings help mount the strip on a wall in any position: horizontally, vertically and even at an angle.

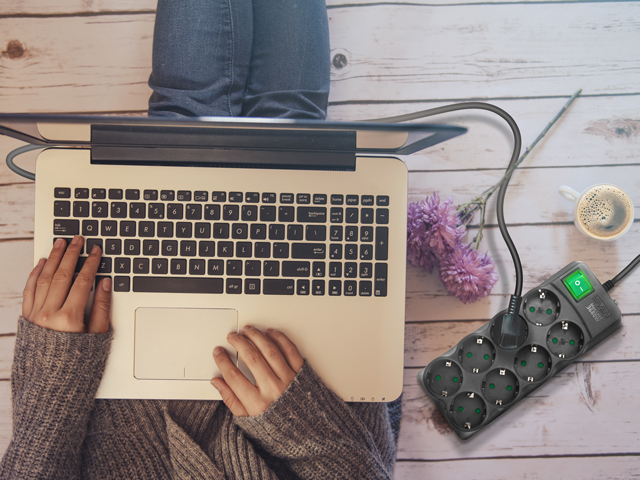

Eight euro sockets with reliable plug fixation

The power strips are fitted with eight sockets of the most widely applied european standard CEE7/4 (EU) with protective shutters to connect various devices.

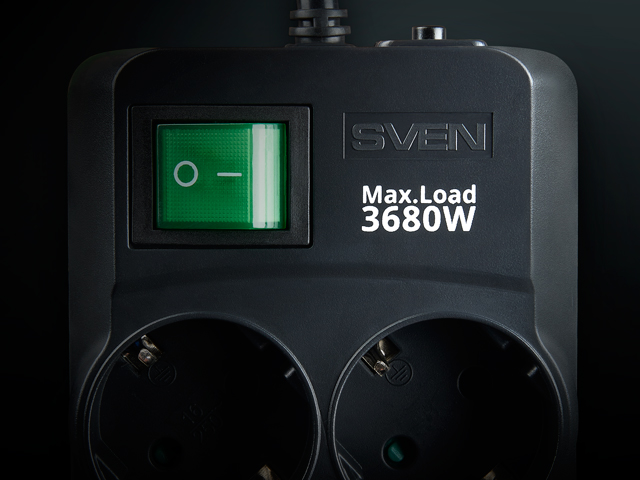

Up to 3680 W of load

Maximum total power rating of the connected devices is 3680 W.

Impact-resistant body made of incombustible material (ABS plastic)
Automatic fuse for protection against overloads and short circuits in the switch key
Varistor protection against high-voltage impulse noise
Children protection
Eight EU sockets CEE 7/4 (EU) with durable fixation of plugs of any type
Maximum permissible load 3680 W
Wall mountable

Output sockets	8 × СЕЕ 7/4
Rated voltage, V	≤250
Connected load total power, kW	3.68 MAX
Maximum absorbed power, J	≤150
Input plug	СЕЕ 7/7
Thermoelectric cut-off fuse operating current, А	≤16
Cord length, m	1.8 3 5
Dimensions (W × H × D), mm	230 × 93 × 50
Weight, g	474 674 850
Color	black

Package contents

Surge protector — 1 pc
User Manual — 1 pc
Warranty card — 1 pc

Other items

SVEN MP-01

Fabric mouse pad with rubber backing

SVEN 150

Compact speakers with cable volume control

SVEN PS-655

Multifunctional portable karaoke speaker system with backlight

SVEN RX-170

Wired mouse

SVEN VR-A1000

Relay automatic voltage regulator, 600 W, socket

SVEN GC-W900 Racing Wheel

Windows/Android/PS3/PS4/XB1/XB360/N-Switch/X-Input/Direct Input compatible gaming steering wheel with shift lever

SVEN SF-06E

6 sockets surge protector, 2300 W

SVEN AP-U988MV

Gaming headset with RGB backlight and 7.1 virtual sound

SVEN PS-235

Portable speaker with backlight

SVEN GC-W150 Racing Wheel

Windows/PS3/PS4/Nintendo Switch/Android compatible gaming steering wheel with shift lever

SVEN MP-04 Valley

Fabric mouse pad with rubber backing

SVEN SF-10E-16

10 sockets surge protector, 3680 W

Let’s introduce SVEN SF-08E-16 surge protector – a multi-socket surge protector with childproofing, with the possibility of connecting up to 8 devices with a maximum total load current up to 16 A. This model is designed to protect appliances from short-circuits, overloads, impulse and industrial interferences in the mains. SVEN SF-08E-16 case is made of shockproof nonflammable plastic.

The model is equipped with protective shutters, which prevent ingress of foreign objects into the surge protector. The surge protector can be mounted on the wall with the help of special slots located on the back of the device. Wires are made of pure copper with a cross section:

- SF-08E-16 1,8m: 3×1 mm²

- SF-08E-16 3,0m: 3×1,5 mm²

- SF-08E-16 5,0m: 3×1,5 mm²

The model is equipped with 8 CEE 7/4 euro sockets and a convenient two-position switch with light indication of operating status. SVEN SF-08E-16 is a practical, thoughtful and safe choice for home or office.
