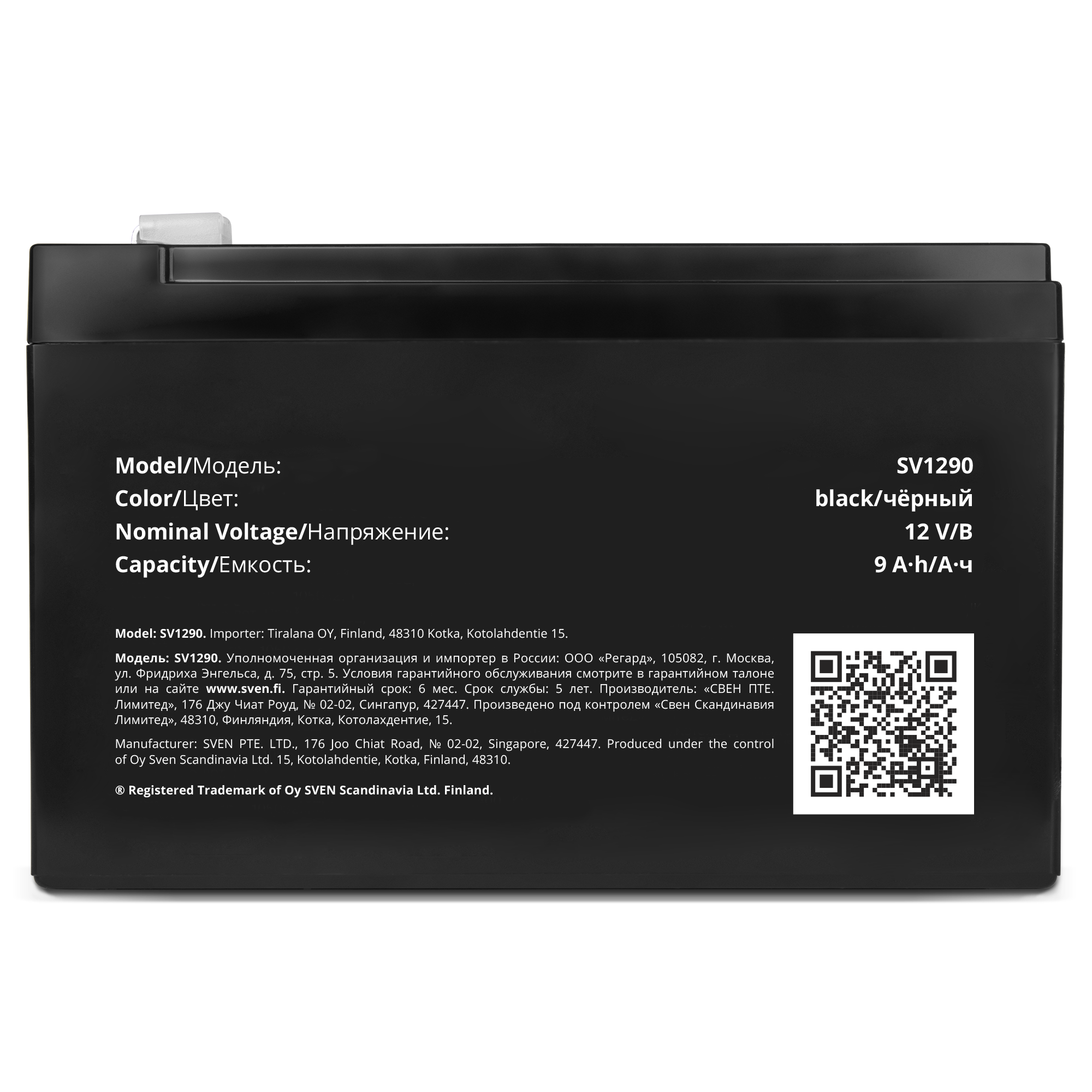

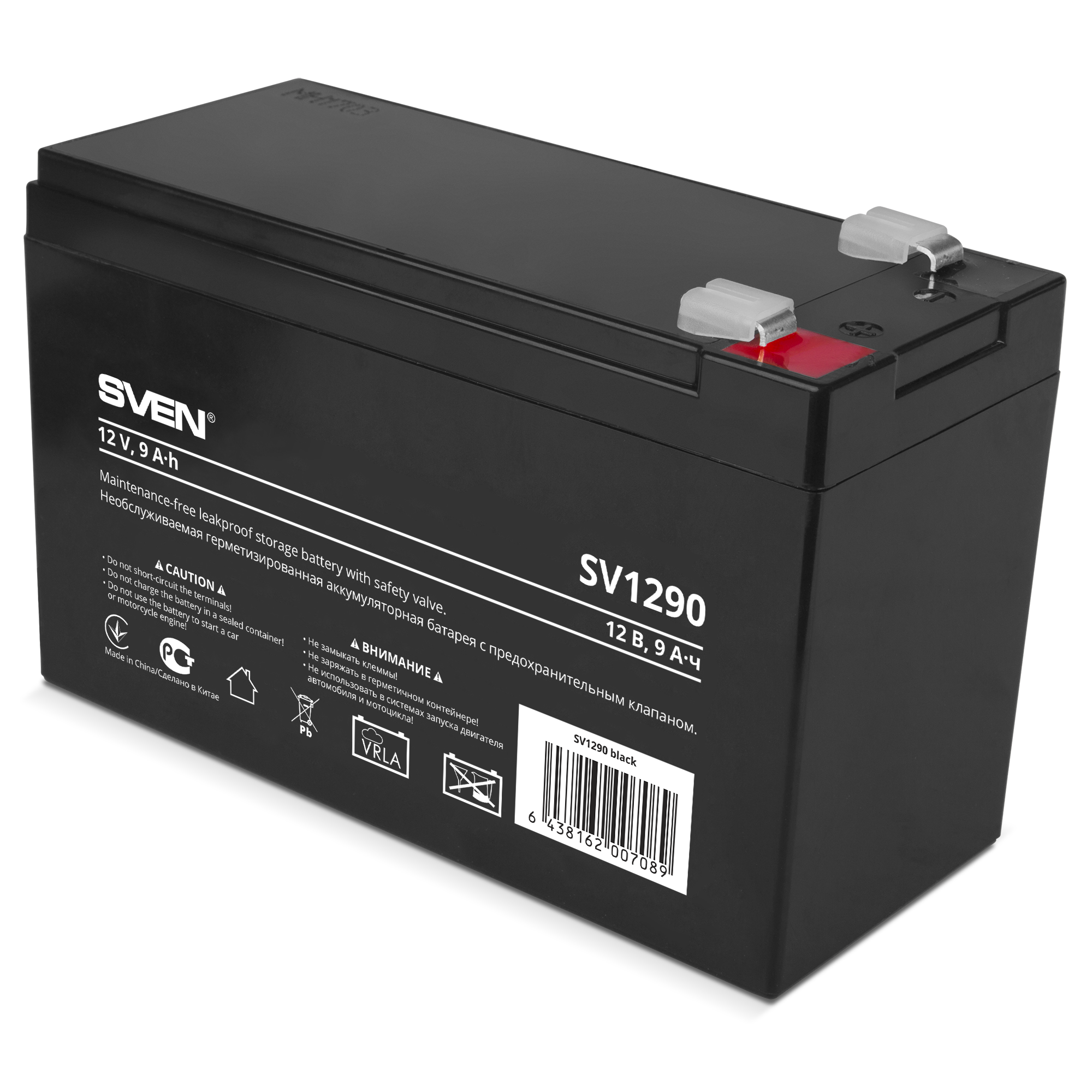

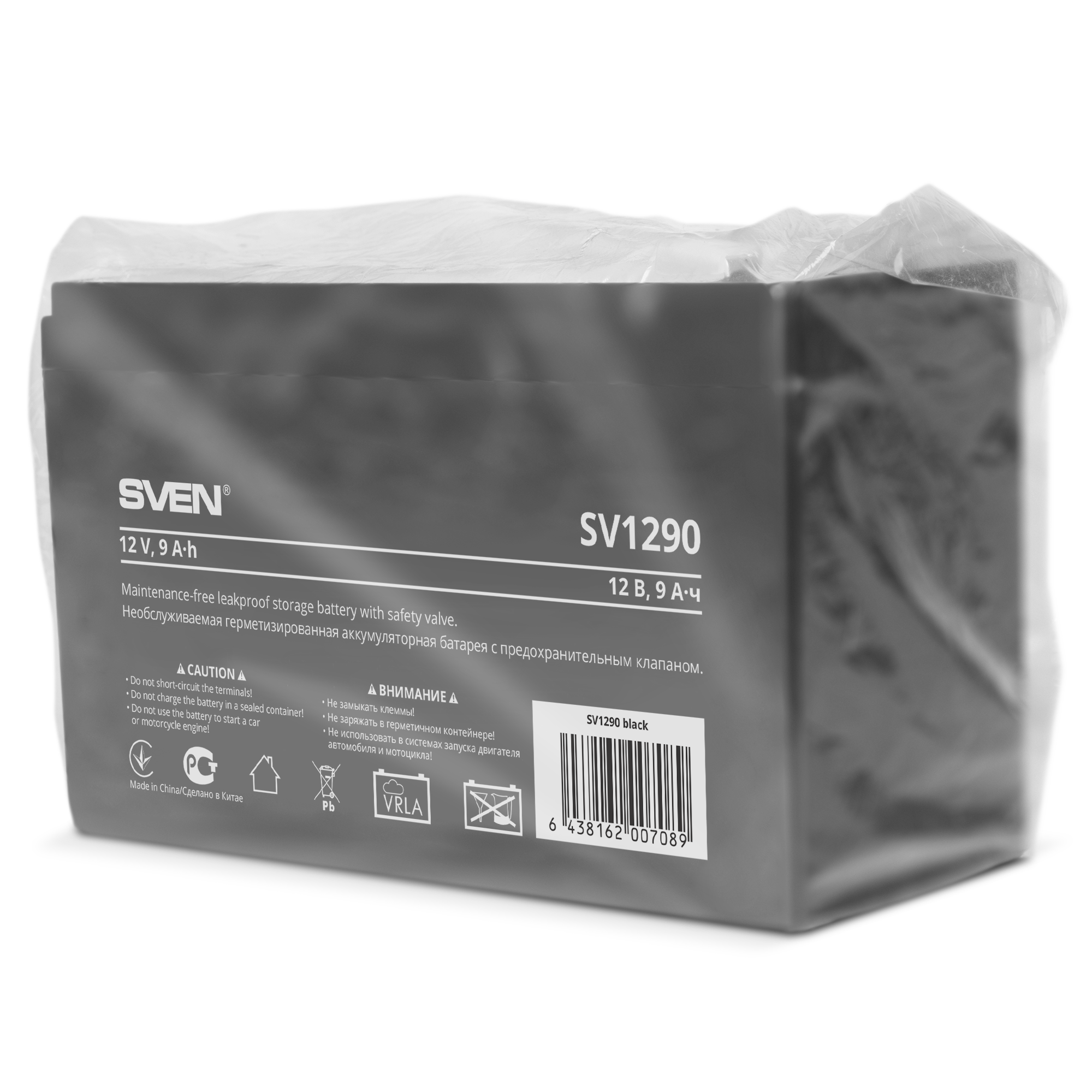

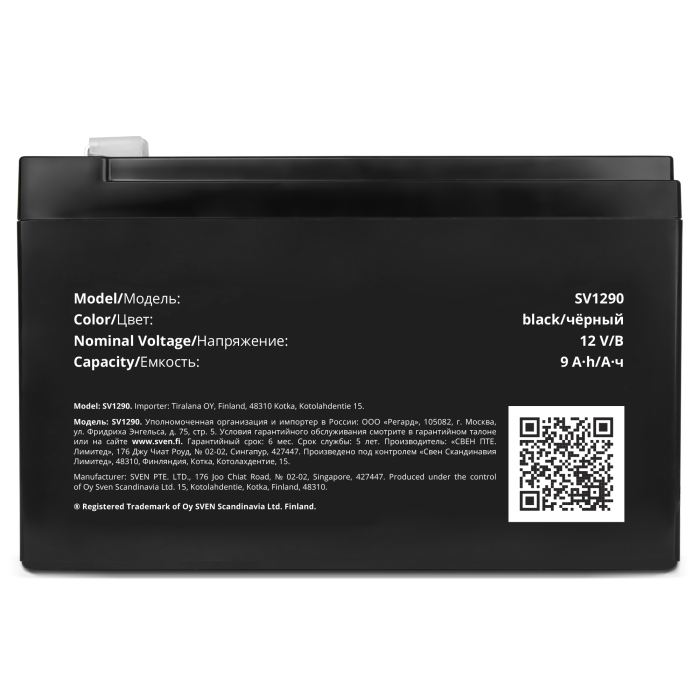

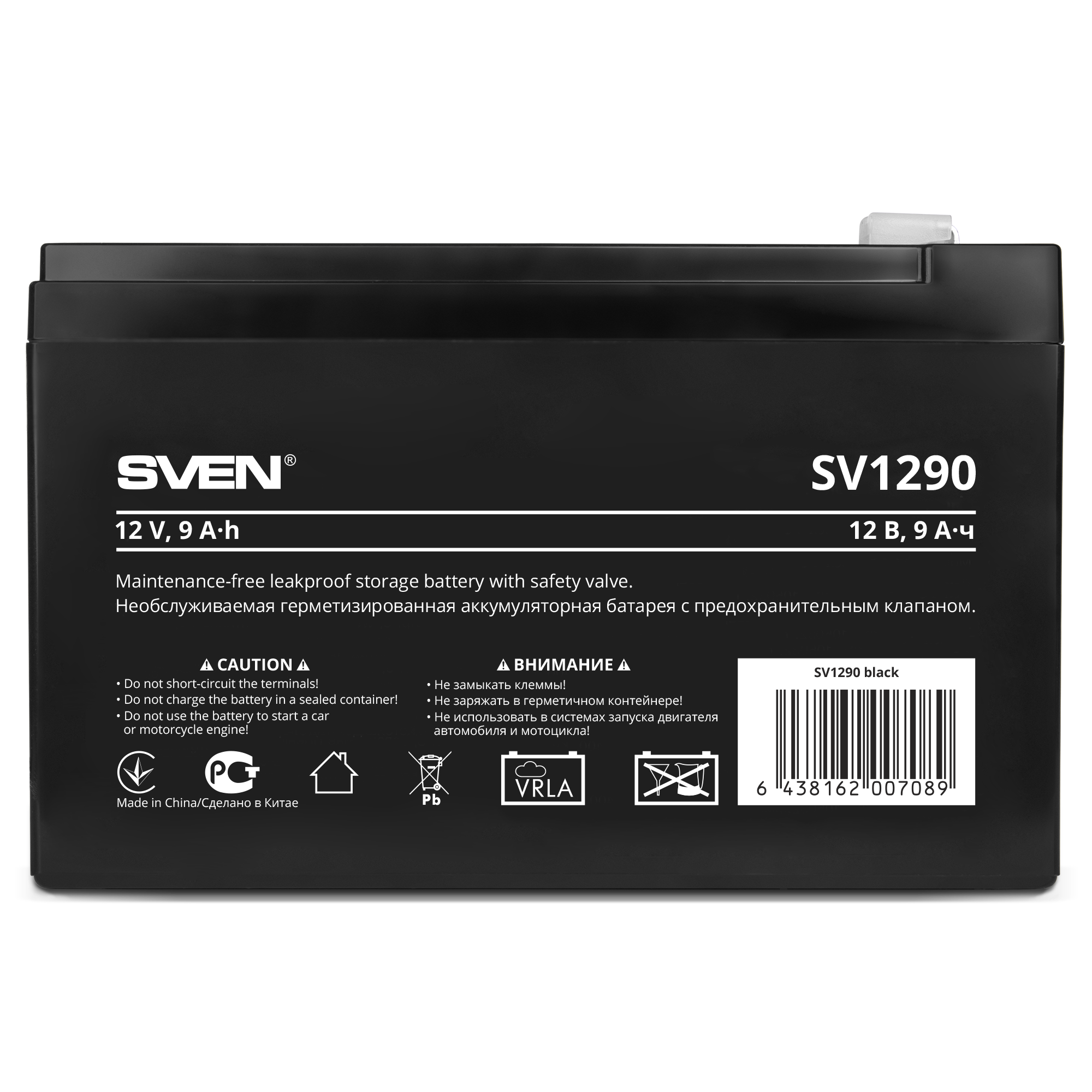

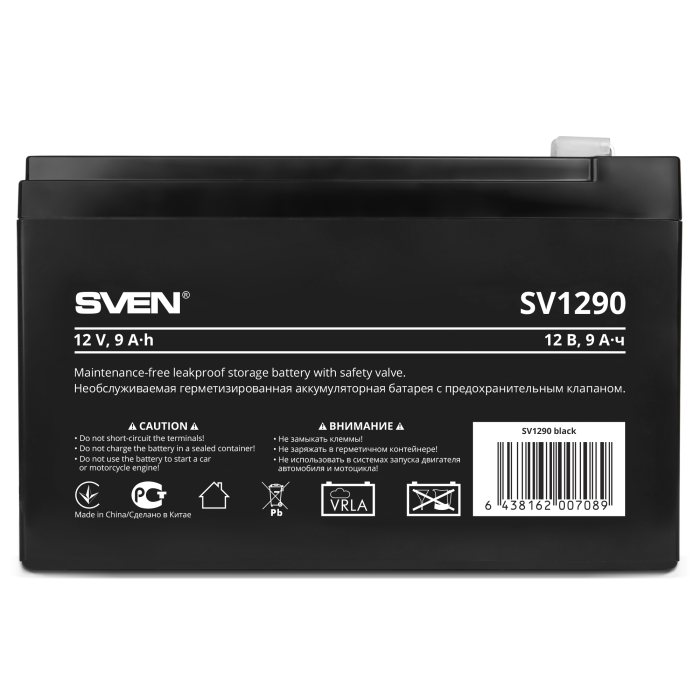

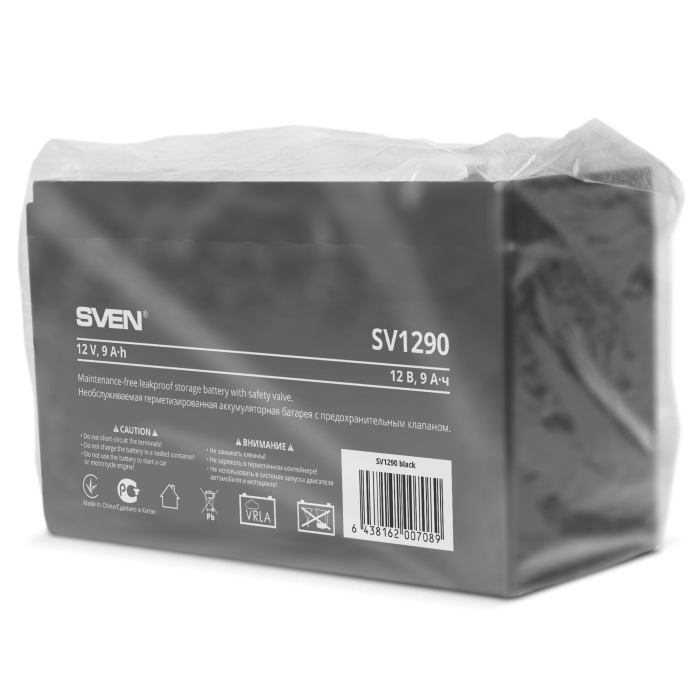

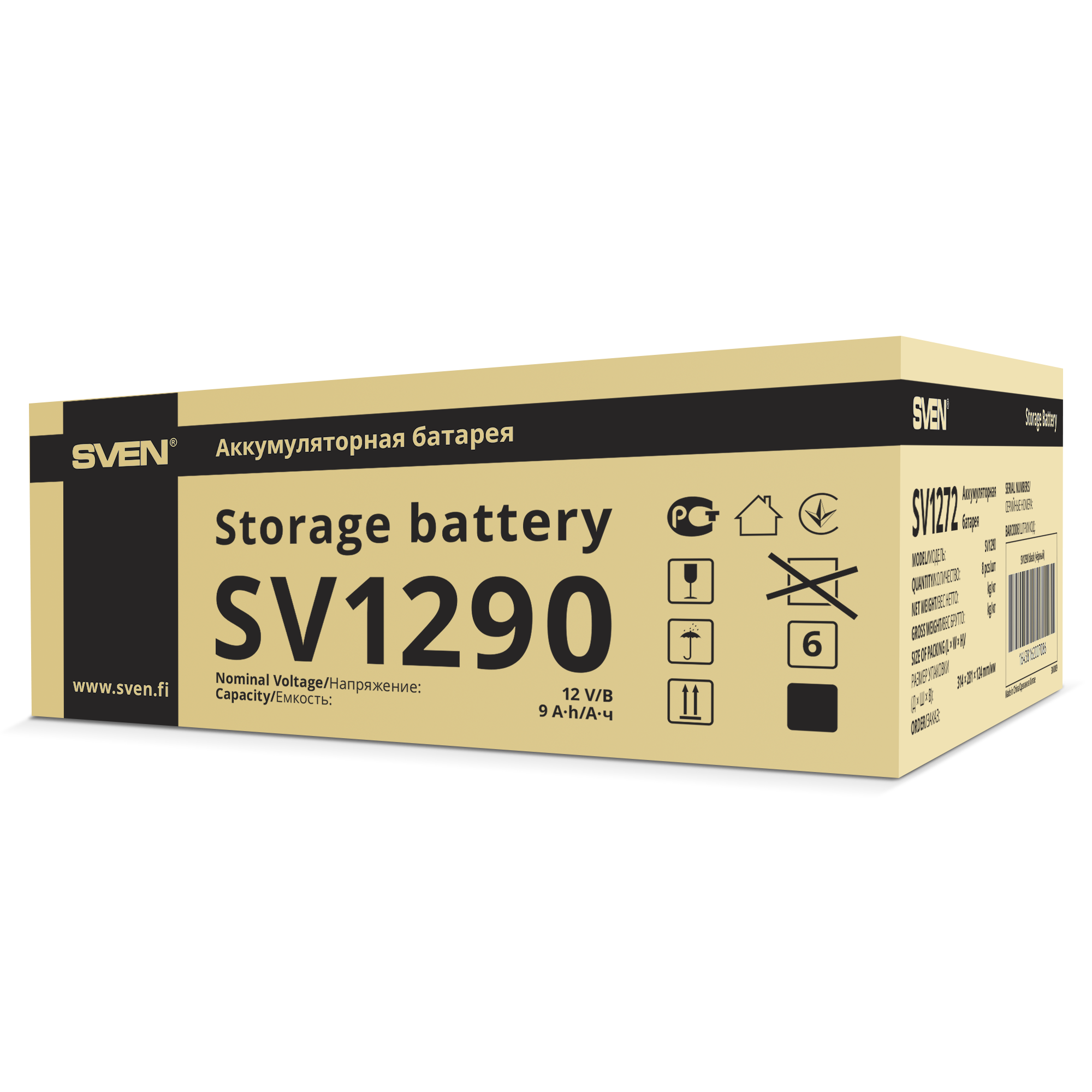

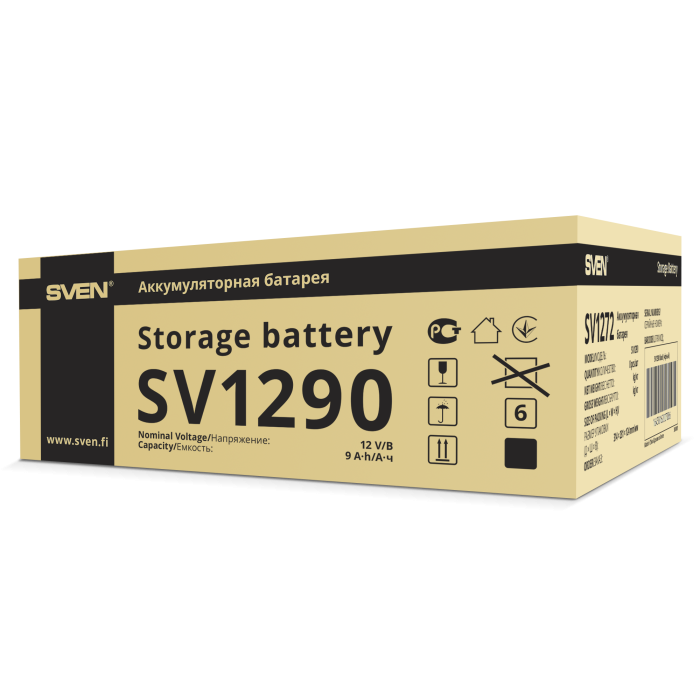

SVEN SV1290

UPS battery 12V 9Ah

Catalog Electrical Equipment Batteries SVEN SV1290

AN: SV-0222009

SVEN SV1290

UPS battery 12V 9Ah

Short product description:

Lead-acid battery of AGM type
Leak-proof design
Doesn't require maintenance and service
Increased service life

All features

Similar products

SVEN SV645

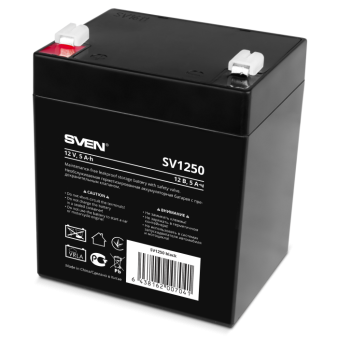

SVEN SV1250

SVEN SV1270

SVEN SV1272

SVEN SV12120

SVEN SV12170

SVEN SV121000

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Lead-acid battery of AGM type
Leak-proof design
Maintenance-free: doesn't require maintenance and can operate in any position
Design of interelectrode separators made of glass fiber increases service life
Does not liberate gas during operation
Valve system protecting the battery against increased pressure
Highly effective lead-calcium electrode grids increasing capacity
Lowered self-discharge current

Battery type	Lead-acid AGM type storage battery
Rated voltage, V	12
Maximum discharge current, A	128
Capacity (20 hours discharge), А • h	9
Maximum charging current, A	2.7
Internal resistance, MOhm	16
Self-discharge (at 25 °C of initial capacity) during the year	up to 36 %
Rated operating temperature, °C	25
Operating temperature range, °C	-20 up to +50
Terminal type	F2
Length, mm	151
Width, mm	65
Hight, mm	94
Total hight, mm	100
Weight, kg	2.4
Color	black
Life time	5 years

Other items

SVEN 325

Speaker system with illuminated volume control

SVEN 450

Gaming mini soundbar for computer with Bluetooth and dynamic switchable lighting

SVEN VR-F1500

Relay automatic voltage regulator, 500 W, 4 sockets

SVEN PS-860

Party speaker system with Bluetooth, karaoke and FM radio

SVEN PS-670

Multifunctional portable karaoke speaker system with backlight

SVEN E-10 BK (SEB 10 BK)

Wired in-ear earbuds

New

SVEN GC-W1000 Racing Wheel

XB1S/X/P4/Windows compatible gaming steering wheel

SVEN SB-2035

Soundbar for TV

SVEN MC-5

Speaker system with Bluetooth, optical input and remote control

SVEN PS-930

Party speaker system with Bluetooth, karaoke and FM radio

SVEN KB-G9200

Mechanical backlit gaming keyboard

SVEN AP-G988MV

Gaming headset

As of today the lead-acid maintenance-free batteries of AGM type are the most widespread type of batteries for the reserve power supply. The main fields of application are UPS; light, alarm and security systems; direct-current power supply; automatic control system.

Batteries of SVEN SV series are notable for the following specifications: low self-discharge current, wide operation temperature range, high coefficient of efficiency and quality of manufacture.
