SVEN С77-22
SVEN С77-22
Short product description:
- VESA range: 100 × 100 / 200 × 100 / 200 × 200 mm
- Diagonal compatibility: 26" – 40" / 66 – 101.6 cm
- Adjustable tilt angle from -5° to +15°
- Rotation angle: ~ ±90°
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- VESA range: 100 × 100 / 200 × 100 / 200 × 200 mm
- Diagonal compatibility: 26" – 40" / 66 – 101.6 cm
- Adjustable tilt angle from -5° to +15°
- Rotation angle: ~ ±90°
- Easy installation and mounting
- High-strength polymer coating

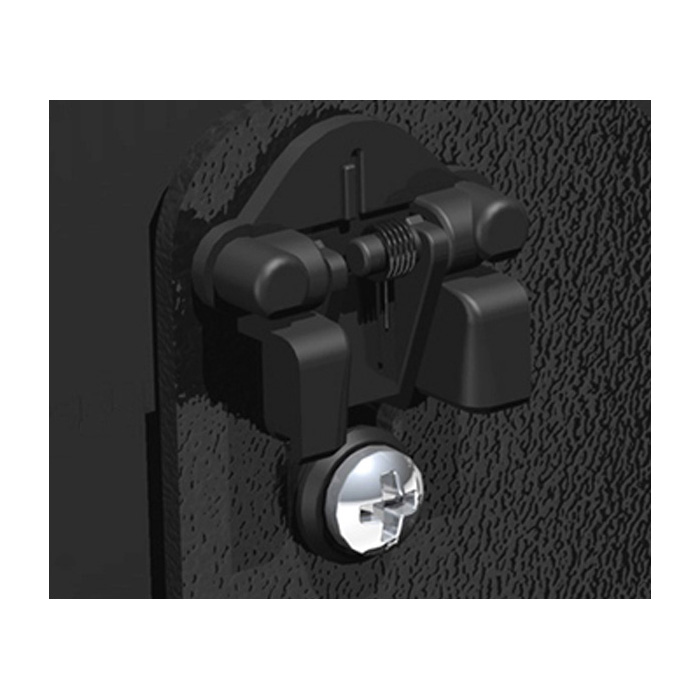

- Security locks

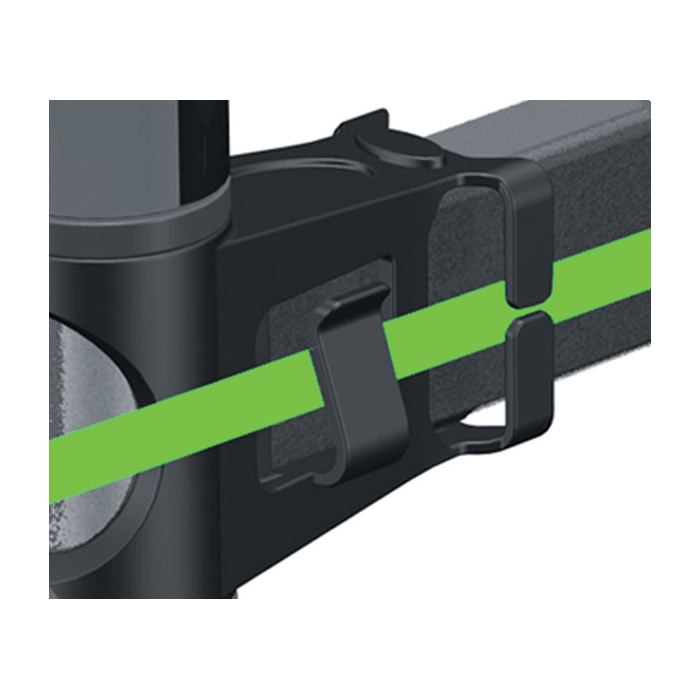

- Guides for cable mounting

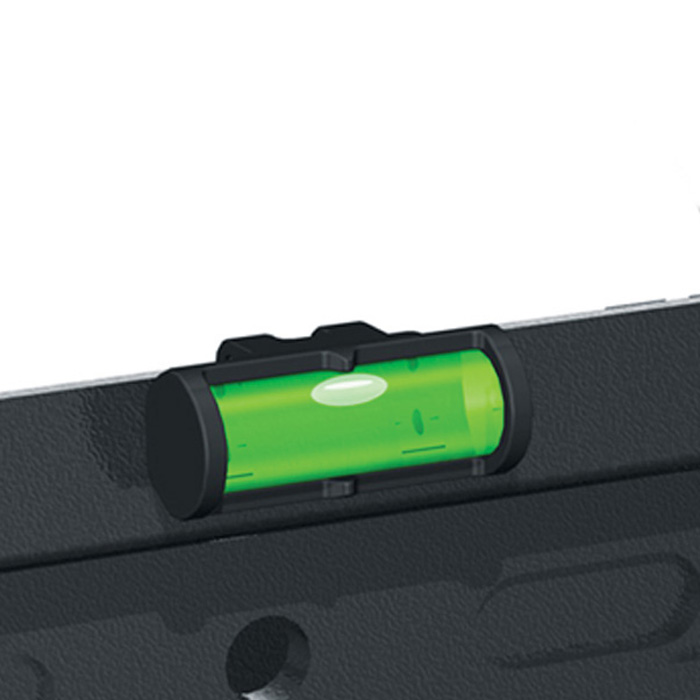

- Level gauge included
| VESA range, mm |
100 × 100 200 × 100 200 × 200 |
| Diagonal compatibility, inch/cm | 26 – 40 / 66 – 101.6 |
| Maximum load, kg | 35 |
| Number of degrees of freedom | 4 |

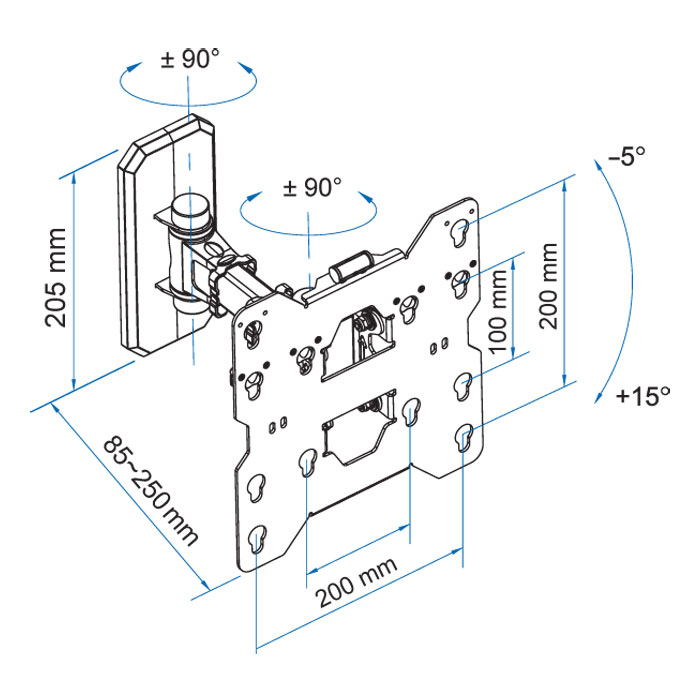

| Distance from wall, mm | 85 ~ 250 |

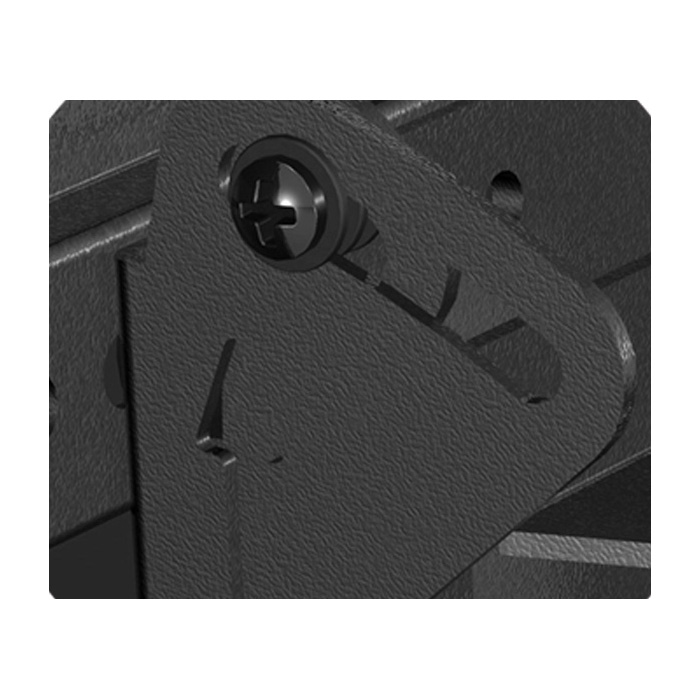

| Adjustable tilt angle, degrees | -5 to +15 |
| Swivel angle, degrees | ~ ±90 |
| Mounting type | tilt-swivel |
| Coating type | high-strength polymer |
| Weight, kg | 2.4 |
| Color | black |
| Life time | 15 years |
Other items
Multifunctional speaker system with Bluetooth, USB/SD player, FM radio, display, remote control
News
SVEN PS-375 PORTABLE SPEAKER — DEEP BASS AND DYNAMIC RGB LIGHTING
Introducing the new portable speaker system, the SVEN PS-375 — designed for those who appreciate powerful bass, crisp high frequencies, and the freedom to move without being tethered to a power outlet.
Details >>
SVEN G345 SPEAKER SYSTEM — VIVID CHARACTER IN A SMALL CASE
Again we delight you with a device in the family of desktop acoustics - compact, technological and with character. The new model SVEN G345 is a 2.0 speaker system that fits easily into a workspace and at the same time pleases not only with high-quality sound, but also with an impressive visual presentation.
Details >>
SVEN G342 SPEAKER SYSTEM — STYLISH SOUND ON THE WORK DESK
We continue to develop a family of compact acoustics that combines high sound quality, stylish design and the ability to occupy a minimum of space. The new device SVEN G342 is a 2.0 speaker system created for those who appreciate minimalism, functionality and spectacular visual presentation.
Details >>SVEN Company, a well-known company for a long time as a producer of speaker systems and computer peripherals, in 2013 starts supplying VESA standard wall mounts for LED/LCD/Plasma TV sets and monitors. VESA is the standardization of TV sets, LCD monitors, plasma panels including mechanical elements as well (i.e. brackets) used during installation and fastening of TV sets or monitors to walls and ceilings.
Reliability and quality of construction, ease of mounting and installation, a possibility to adjust an angle of inclination, application of special high-strength polymeric painting are the features of the presented ТМ SVEN mounts. All models are equipped with safety locks for reliable fixation. All required installation accessories are included in delivery sets.
С-series comprising models, С71-11, С77-22 and С81-44, is the rotary-cum-inclined mount type with the number of degrees of freedom from 4 (rotation by the angle ±90°, angle of inclination from -5° to +15°) up to 6 (rotation by the angle ±90°, angle of inclination from -5° до +15°, horizon adjustment from -3° to +3°). These models are designed for TV sets and monitors with VESA dimensions from 75 to 400 mm. They are also equipped with fixation cable guides.
All the models have 5-year warranty. Life time is 15 years.
If you are looking for universality, functionality and affordability, ТМ SVEN products are just for you!
