SVEN UP-L800

Line interactive UPS, 400W, 3 sockets

Catalog Electrical Equipment Uninterruptible Power Supplies SVEN UP-L800

2 MORE

AN: SV-021627

SVEN UP-L800

Line interactive UPS, 400W, 3 sockets

Short product description:

Line Interactive UPS Type
Thermal protection of the transformer
Automatic self-testing
Wall mountable

All features

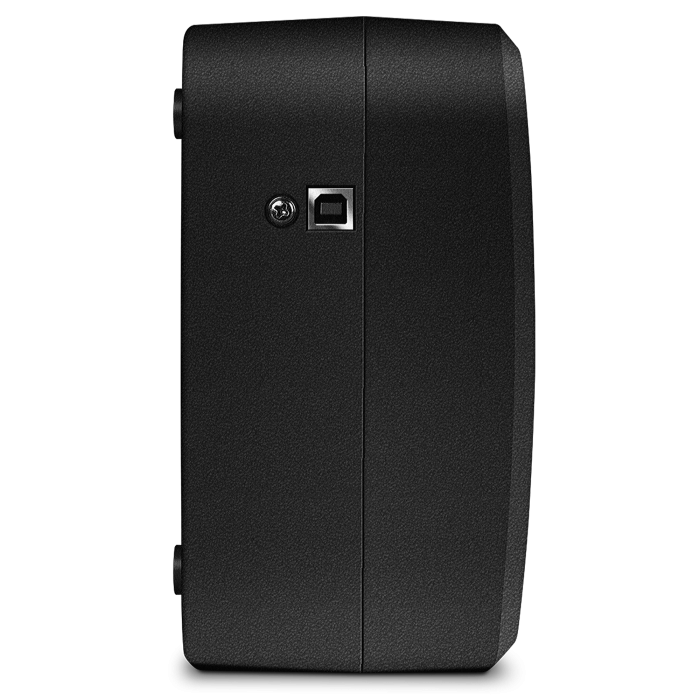

Connection to PC for configuration and control

UPS can connect to a PC for interaction with software for configuration and monitoring.

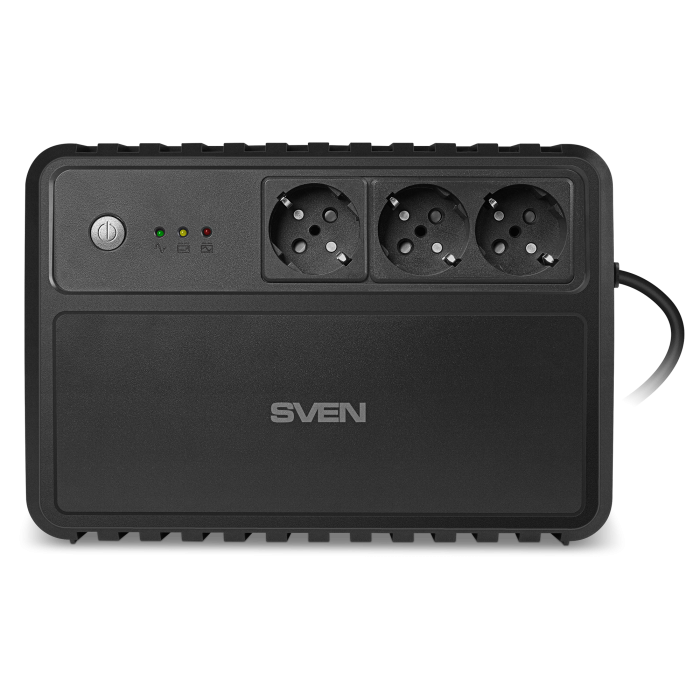

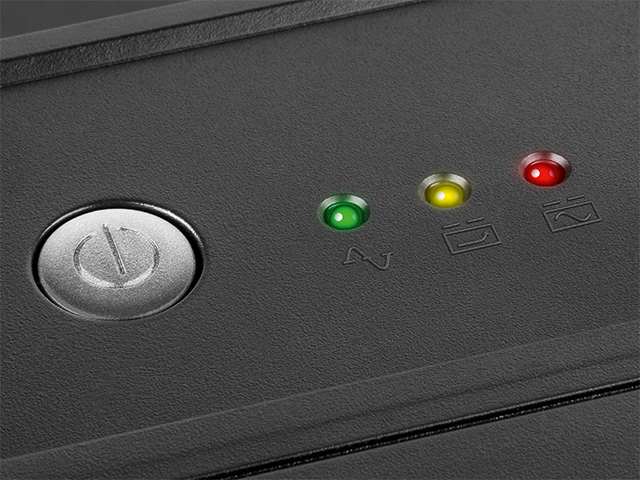

LED indication of operation modes

LED indicators allow to monitor current state and operation mode of the device.

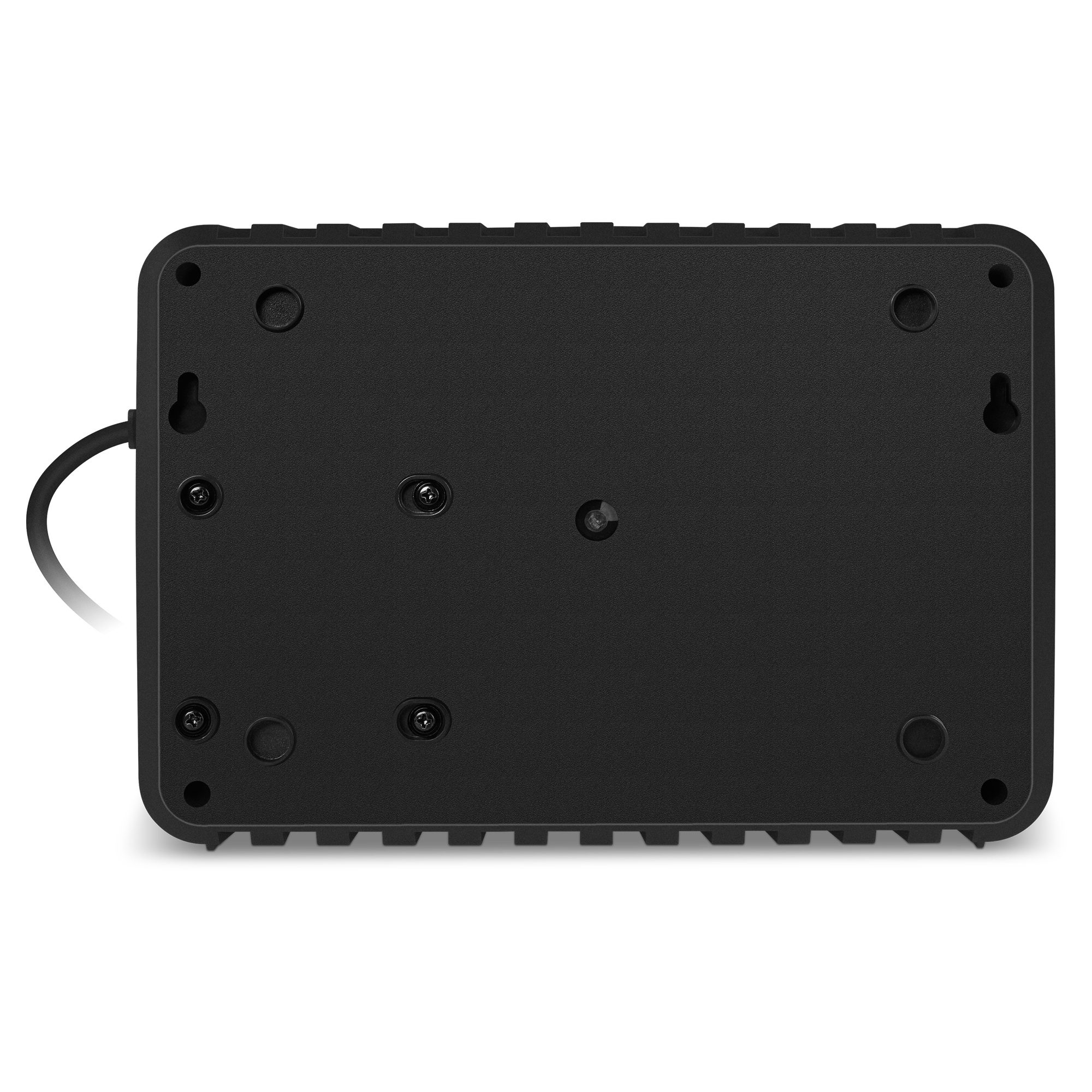

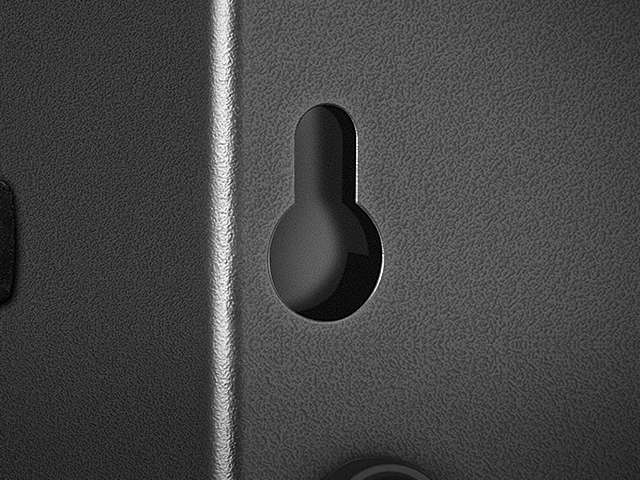

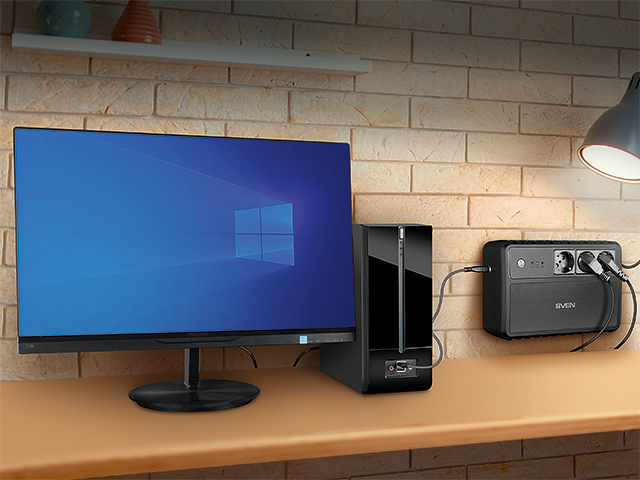

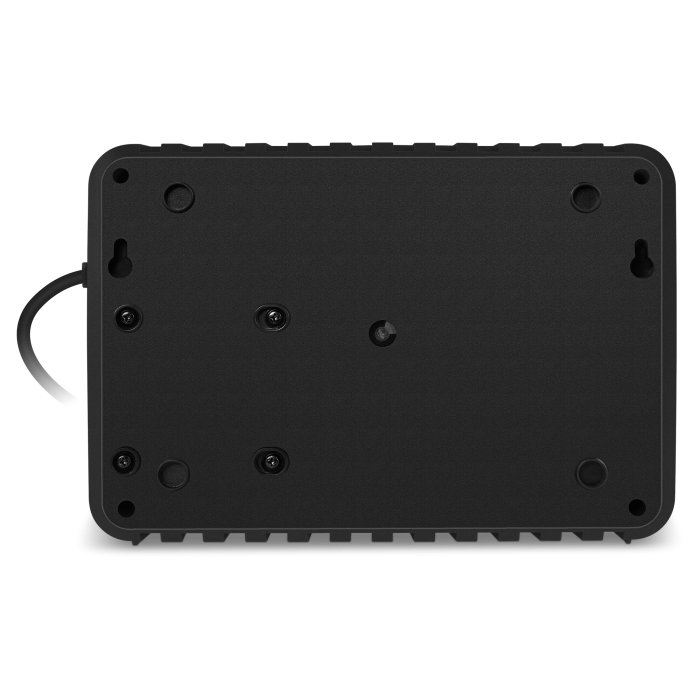

Possibility of wall mounting

Wall mounting allows to position the device in limited space and ensure its complete cooling.

Line Interactive UPS Type

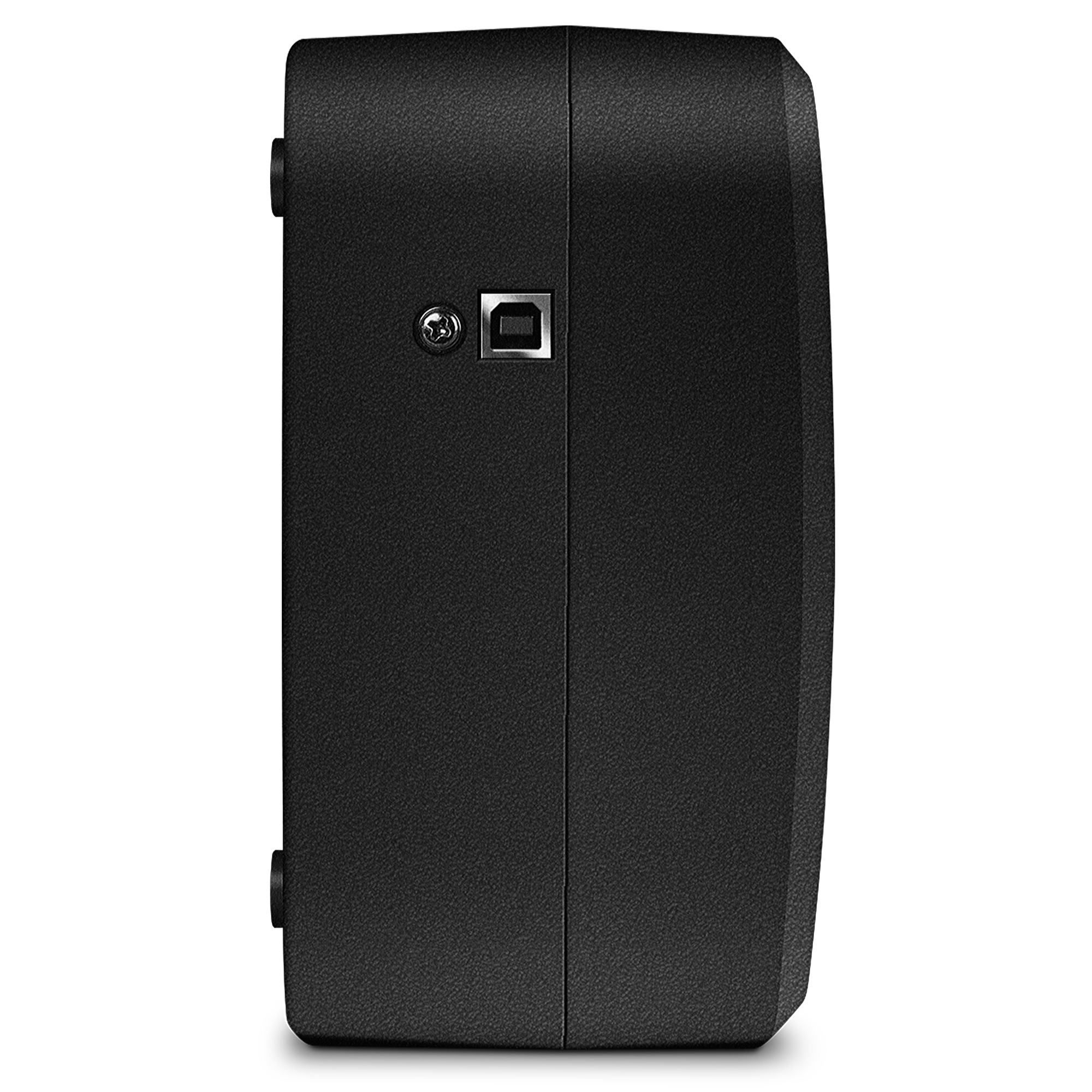

Connection to a computer via USB port to control the operation of the UPS
Thermal protection of the transformer
Automatic self-testing when turned on
Protection against high voltage, low voltage, HF and impulse noise
Input voltage ~175-290 V (±3%)

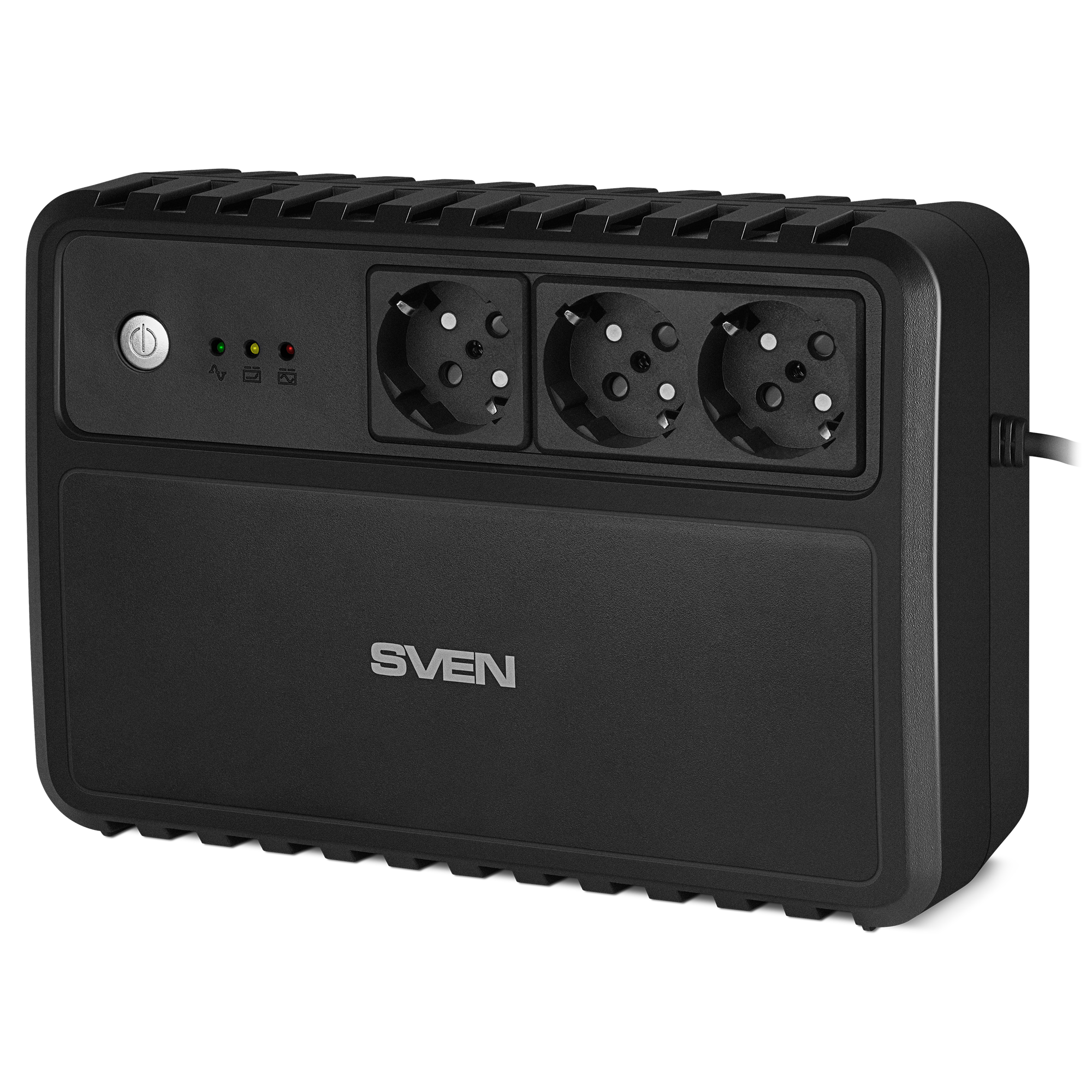

Three euro sockets CEE7/4 (EU) with durable fixation of plugs of any type
Wall mountable
"Autostart" function when connecting / restoring mains power
Children protection
Built-in AVR with wide input voltage range
Output voltage ~230 V (-14/+10%)

UPS type	line-interactive
Total power, VА	800
Active power, W	400
Type of load	computer, monitor
Input voltage level, V	~175 – 290 (± 3 %)
Output voltage level, V	~230 (-14/+10%)
Input frequency, Hz	50
Output frequency, Hz	50
Number of phases	1
Communication port	USB
Output sockets	3 × CEE7/4
Battery voltage, V	12
Battery capacity, А•h	7
Typical switching time, ms	≤ 10
Batteries operation time, min	3 - 20 (dependent on connected load)
Environmental temperature, °С	5 - 40
Relative humidity, %	10 - 90
Dimensions (W × H × D), mm	175 × 98 × 255
Weight, kg	5.2
Color	black

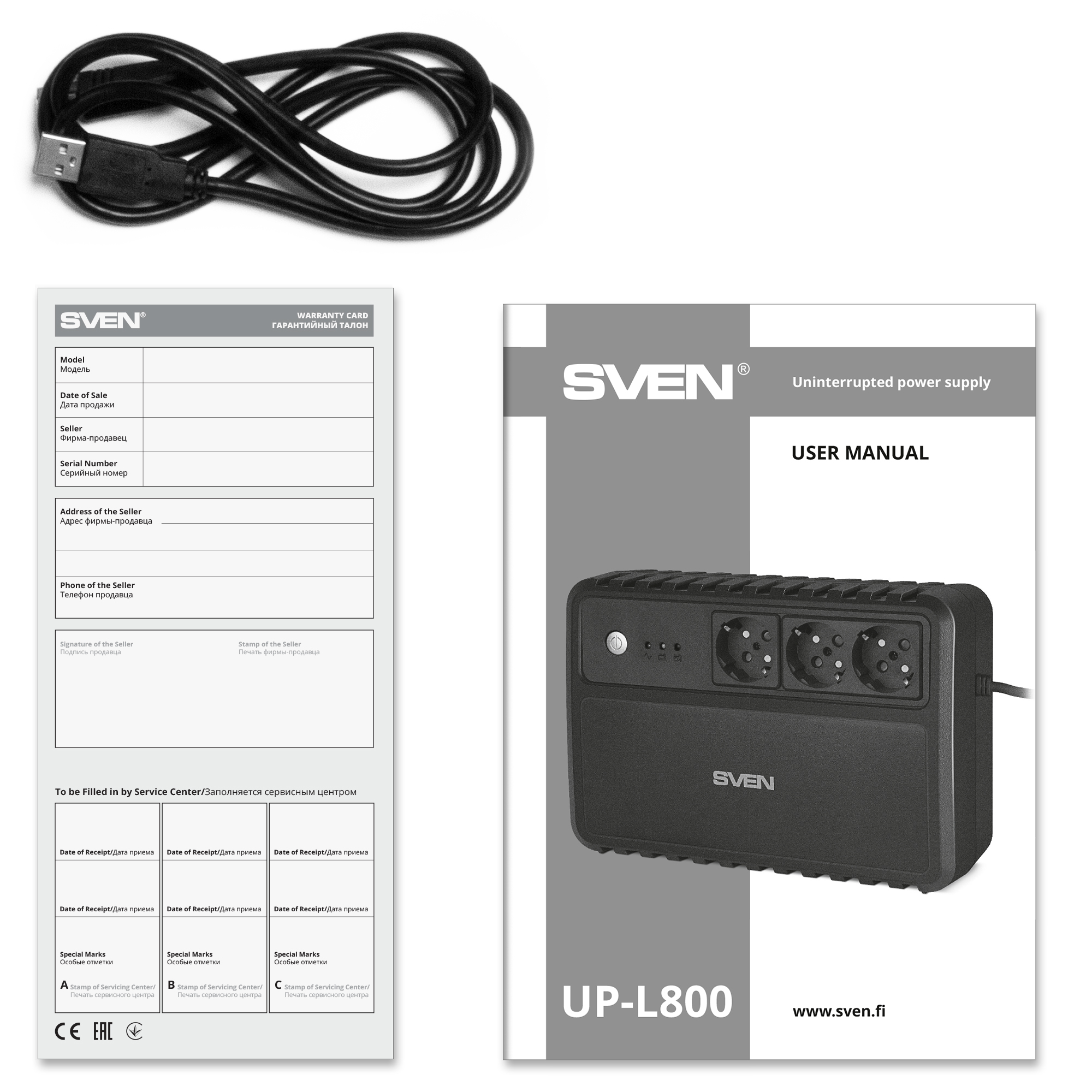

Package contents

Uninterruptible power supply — 1 pc
Connection cable — 1 pc
Operation manual — 1 pc
Warranty card — 1 pc
