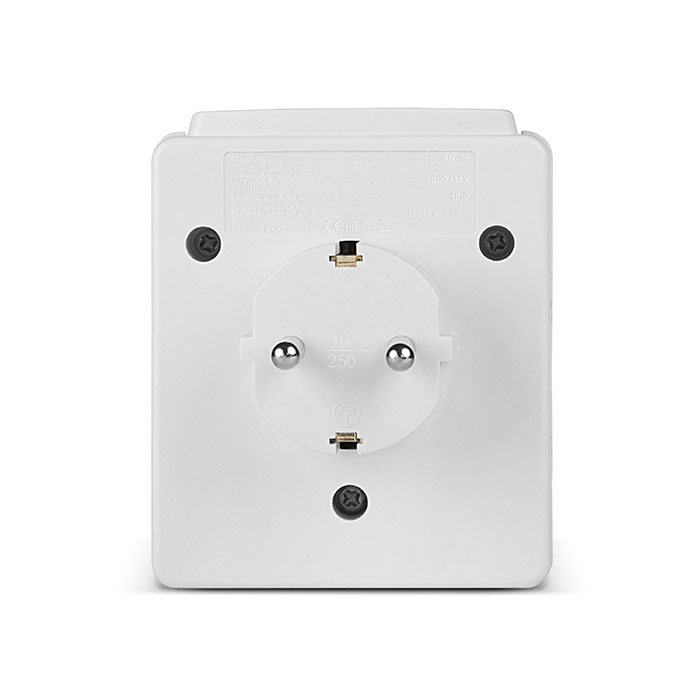

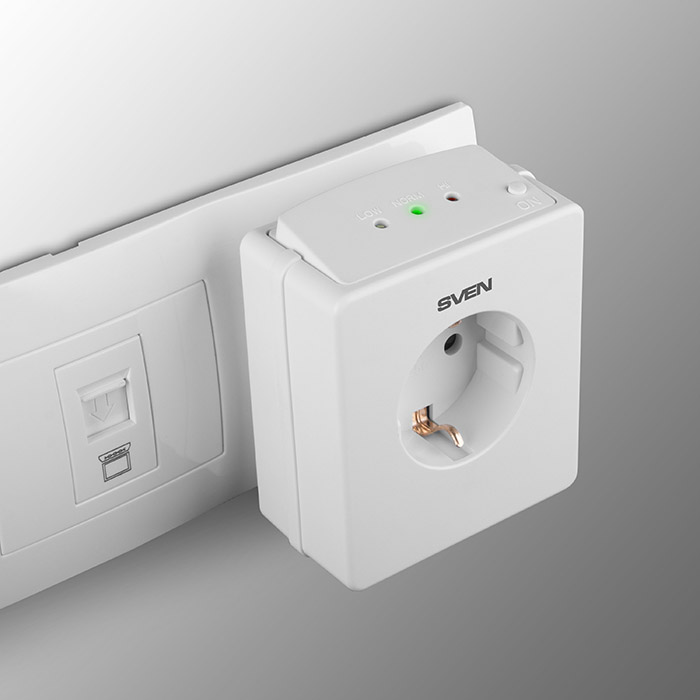

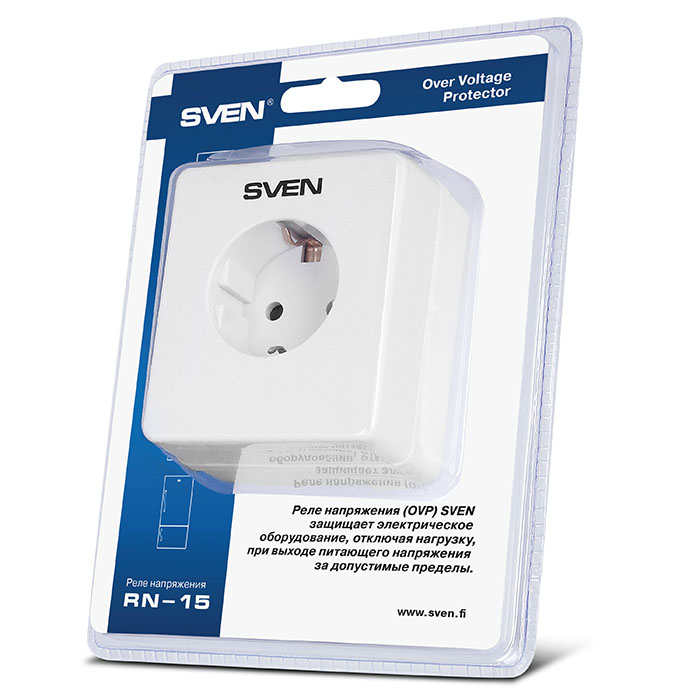

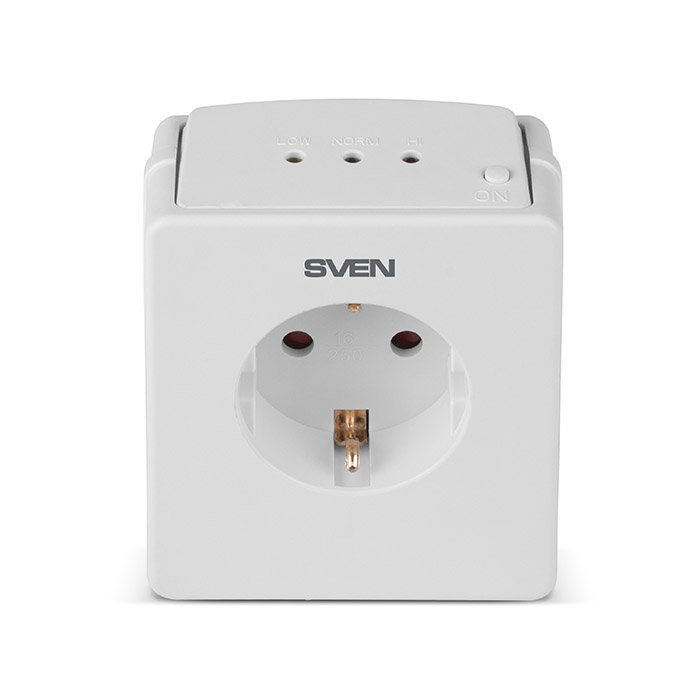

SVEN RN-15
SVEN RN-15
Short product description:
- Protection of connected devices against high/low overvoltage...
- Protecting from high-frequency and impulsive noises
- Delay on to protect against repeated failures
- Fixed protection parameters for operation simplicity
Similar products
SVEN SF-05LU
SVEN Optima 6 sockets
SVEN SF-10E-16
SVEN SF-08E-16
SVEN SF-06E-16
SVEN SF-05PL
SVEN SF-06E
SVEN SF-05E
SVEN SF-05LU
SVEN Optima 6 sockets
SVEN SF-10E-16
SVEN SF-08E-16
SVEN SF-06E-16
SVEN SF-05PL
SVEN SF-06E
SVEN SF-05E
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Protection of connected devices against high/low overvoltage in the power supply network
- Protecting from high-frequency and impulsive noises
- Delay on to protect against repeated failures
- Fixed protection parameters for operation simplicity
- The possibility of manual power-on of the load, before the expiration of the pause
- Voltage relay status indication
- Protective shutters in the output socket
- Protective grounding contacts, fusible safety device 15А
| Measured voltage, V | ~100-280 |
| Operating frequency, Hz | 50 |
| Maximum load current, А | 15 |
| Maximum power, kVА | 3.3 |
| Maximum absorbed power, J | ≤125 |
| Maximum absorbed current of pulse distortion, A | 4500 |
| Operation threshold to decrease power supply voltage, V | 199 ± 2% |
| Operation threshold to increase power supply voltage, V | 252 ± 2% |
| Output sockets | 1× СЕЕ 7/4 |
| Protection actuation time, sec | ≤ 0,3 sec |
| Dimensions (W × H × D), mm | 73 × 78 × 86.7 |
| Weight, kg | 0.126 |
| Color | white |
| Life time | 2 years |
