SVEN RN-16D Voltage relay with LCD, 3300W

SVEN RN-16D

Voltage relay with LCD, 3300W

Catalog Electrical Equipment Surge Protectors, Power Strips & Over Voltage Protectors SVEN RN-16D

AN: SV-016586

SVEN RN-16D

Voltage relay with LCD, 3300W

Short product description:

Protection of connected devices against high/low voltage in ...
Protection of connected devices against impulse noises in th...
Programmable disconnection thresholds and turn-on delay time...
Nonvolatile memory of programmed settings

All features

Similar products

SVEN SF-05LU

SVEN Optima 6 sockets

SVEN SF-10E-16

SVEN SF-08E-16

SVEN SF-06E-16

SVEN SF-05PL

SVEN SF-06E

SVEN SF-05E

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Protection of connected devices against high/low voltage in the power supply network
Protection of connected devices against impulse noises in the power supply network (varistor)
Programmable disconnection thresholds and turn-on delay time
Nonvolatile memory of programmed settings

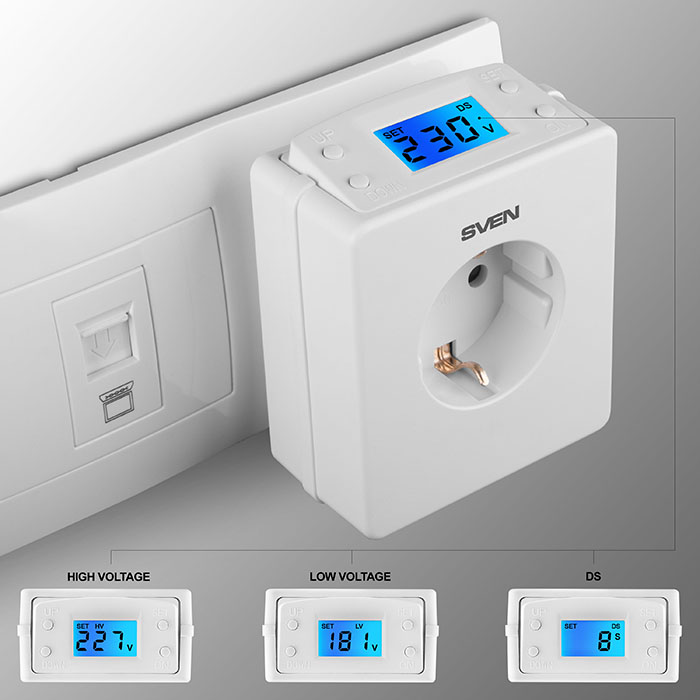

Multifunctional LCD display to show voltage level in the power supply net work, delay time and protection status indication
Protective shutters in the output socket
Presence of protective, fuse * 15А

Measured voltage, V	140 – 280
Operating frequency, Hz	50
Maximum load current, А	15
Maximum power, kVА	≤3.3
Maximum absorbed power, J	≤125
Maximum absorbed current of pulse distortion, A	operating mode: 2500 protective mode: 4500
Operation threshold to decrease power supply voltage, V	~150 - 215 ± 2%
Operation threshold to increase power supply voltage, V	~ 225 - 275 ± 2%
Output sockets	1× СЕЕ 7/4
Protection actuation time, sec	≤ 0,3 sec
Dimensions (W × H × D), mm	73 × 78 × 86.7
Weight, kg	0.128
Color	white
Life time	2 years
