SVEN C81-44
SVEN C81-44
Short product description:
- VESA range: 100 × 100 / 200 × 200/300 × 300/400 × 400 mm
- Diagonal compatibility: 26 – 55 / 66 – 140 cm
- Adjustable tilt angle from -5° to +15°
- Horizontal adjustment -3° to +3°
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- VESA range: 100 × 100 / 200 × 200/300 × 300/400 × 400 mm
- Diagonal compatibility: 26 – 55 / 66 – 140 cm
- Adjustable tilt angle from -5° to +15°
- Horizontal adjustment -3° to +3°
- Swivel angle: ~ ±90°
- Easy installation and mounting
- High-strength polymer coating

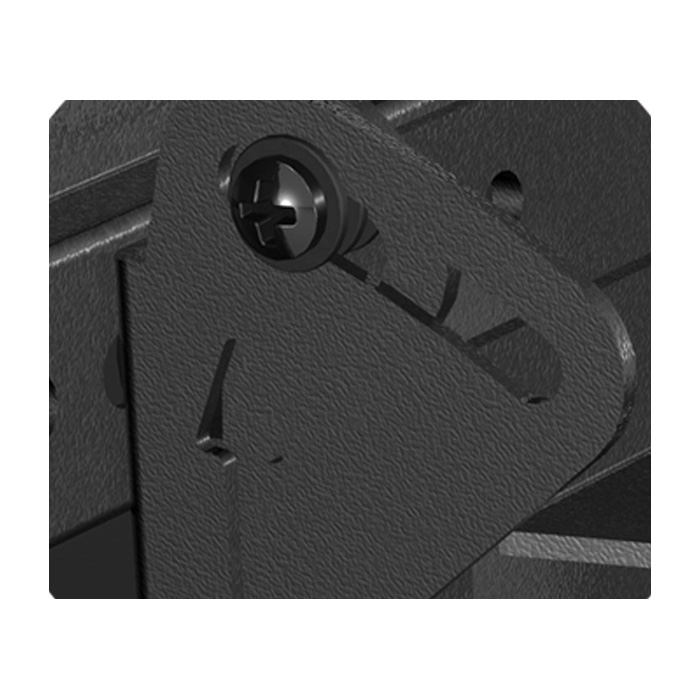

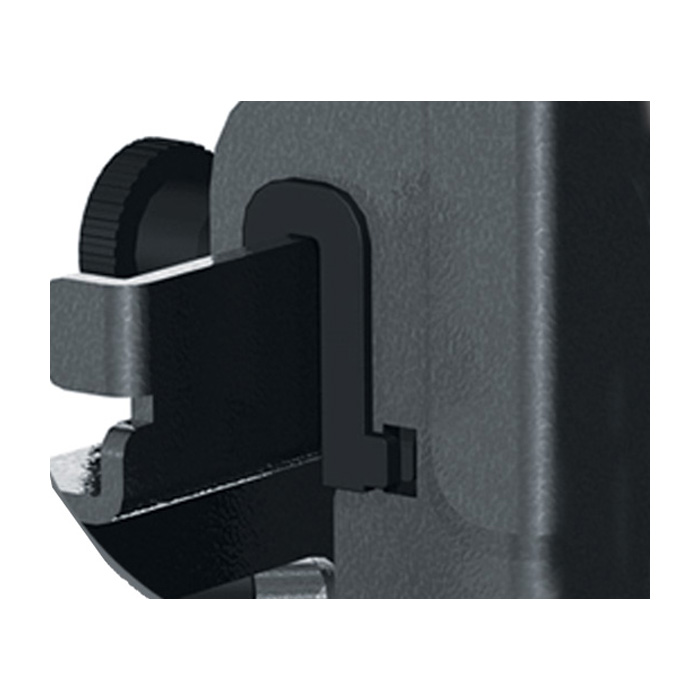

- Security locks

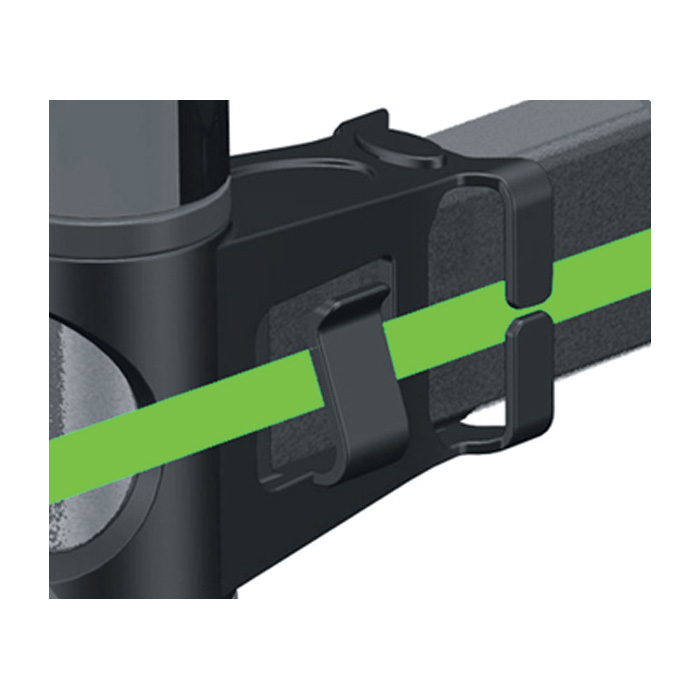

- Guides for cable mounting

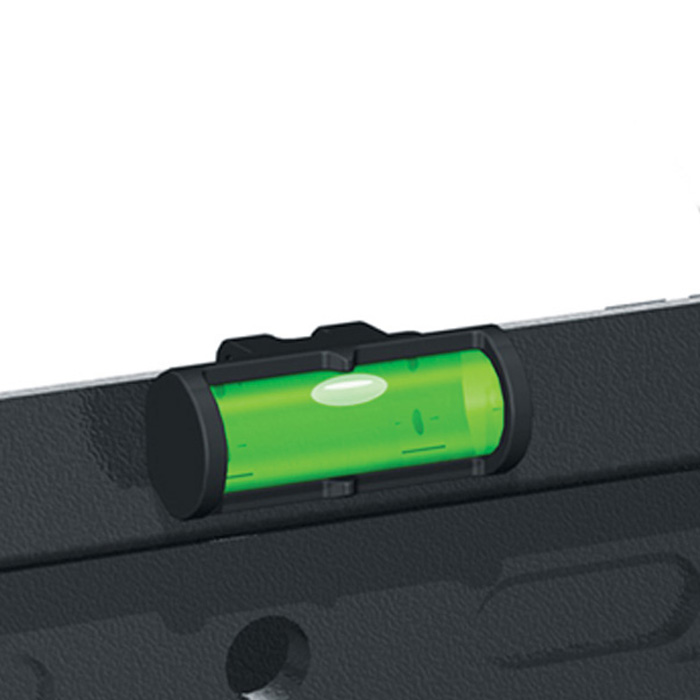

- Level gauge included

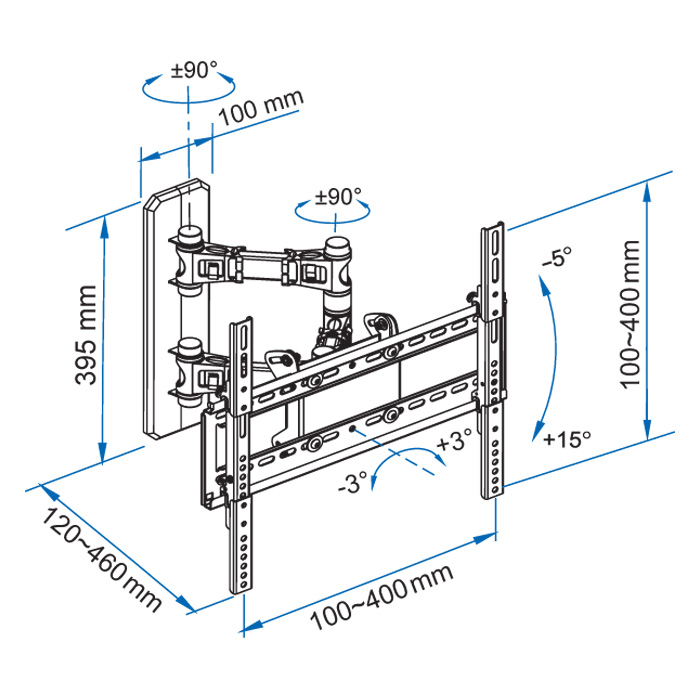

| VESA range, mm |
100 × 100 200 × 200 300 × 300 400 × 400 |
| Diagonal compatibility, inch/cm | 26 – 55 / 66 – 140 |
| Maximum load, kg | 45 |
| Number of degrees of freedom | 6 |
| Distance from wall, mm | 120 ~ 460 |
| Adjustable tilt angle, degrees | -5 to +15 |
| Swivel angle, degrees | ~ ±90 |
| Horizontal adjustment, degrees | ~ ±3 |
| Mounting type | tilt-swivel |
| Coating type | high-strength polymer |
| Weight, kg | 6.2 |
| Color | black |
| Life time | 15 years |
Other items
Multifunctional speaker system with Bluetooth, USB/SD player, FM radio, display, remote control
SVEN Company, a well-known company for a long time as a producer of speaker systems and computer peripherals, in 2013 starts supplying VESA standard wall mounts for LED/LCD/Plasma TV sets and monitors. VESA is the standardization of TV sets, LCD monitors, plasma panels including mechanical elements as well (i.e. brackets) used during installation and fastening of TV sets or monitors to walls and ceilings.

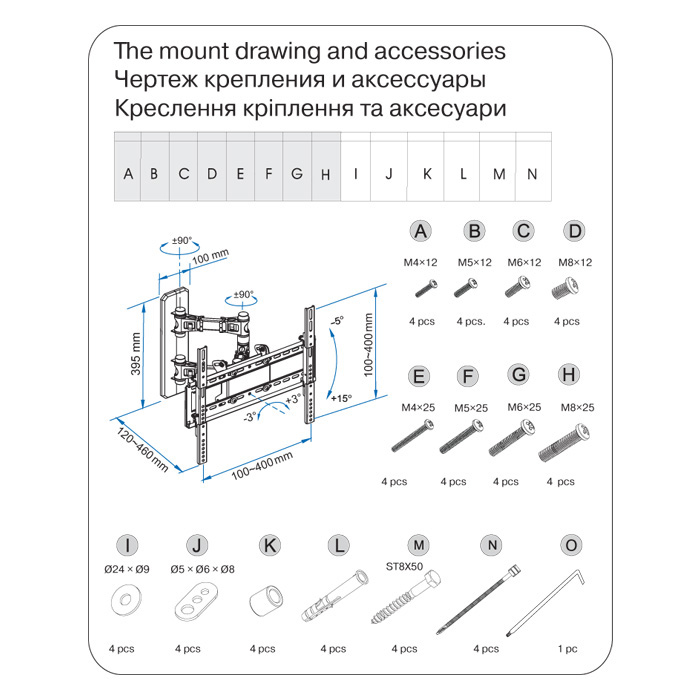

Reliability and quality of construction, ease of mounting and installation, a possibility to adjust an angle of inclination, application of special high-strength polymeric painting are the features of the presented ТМ SVEN mounts. All models are equipped with safety locks for reliable fixation. All required installation accessories are included in delivery sets.
С-series comprising models, С71-11, С77-22 and С81-44, is the rotary-cum-inclined mount type with the number of degrees of freedom from 4 (rotation by the angle ±90°, angle of inclination from -5° to +15°) up to 6 (rotation by the angle ±90°, angle of inclination from -5° до +15°, horizon adjustment from -3° to +3°). These models are designed for TV sets and monitors with VESA dimensions from 75 to 400 mm. They are also equipped with fixation cable guides.
All the models have 5-year warranty. Life time is 15 years.
If you are looking for universality, functionality and affordability, ТМ SVEN products are just for you!
