SVEN VR-F600 Relay automatic voltage regulator, 200 W, 2 sockets

SVEN VR-F600

Relay automatic voltage regulator, 200 W, 2 sockets

New

Catalog Electrical Equipment Automatic Voltage Regulators SVEN VR-F600

New

5 MORE

AN: SV-022570

SVEN VR-F600

Relay automatic voltage regulator, 200 W, 2 sockets

Short product description:

Single-phase relay-type stabilizer
Thermal protection of the transformer
LED indication of operating modes
Two EU sockets CEE7/4 (EU)

All features

Protection against overloads and short circuits in the switch key

Automatic fuse protecting against overloads and short circuit is located in the switch key, allowing to quickly return the AVR to operation after it is triggered.

Wide range of input voltage

Input voltage, enabling stable operation of the device, varies between 170 and 285 V.

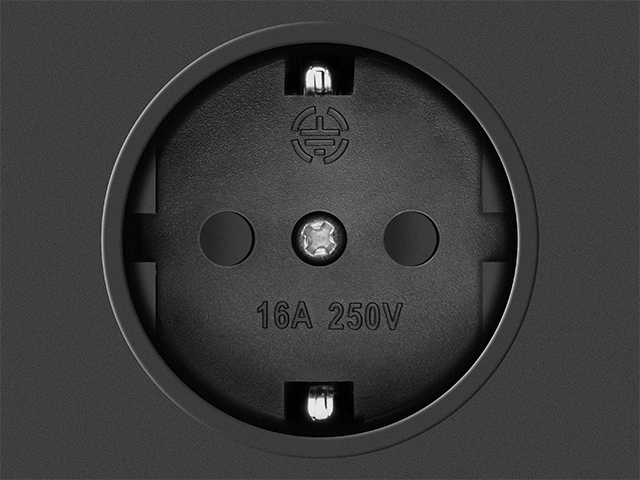

Two euro sockets CEE7/4 (EU) with high quality plug fixation

The device is fitted with two sockets of the european standard CEE7/4 (EU) with a high quality fixation of the plug.

Compact design

Compact design allows the stabilizer to be placed even in confined spaces.

Single-phase relay-type stabilizer
Thermal protection of the transformer
Safe shutdown at high and low mains voltage levels
LED indication of operating modes
Automatic fuse for protection against overloads and short circuits in the switch key
Input voltage ~170-285 V (±3%)
Output voltage ~230 V (-10/+10%)
Two EU sockets CEE7/4 (EU) with durable fixation of plugs of any type
Built-in surge protector for protection against HF pulses and interference

Maximal output power, W	≤200
Input voltage, V	~170 - 285 (±3%)
Output voltage, V	~230 (-10/+10%)
Input frequency, Hz	50
Output frequency, Hz	50
Input socket	1 × СЕЕ7/7
Output sockets	2 × CEE7/4
Protection operating current, A	5
Typical switching time, ms	≤10
Maximum absorbed impulse noise power, J	≤320
Environmental temperature, °С	0 to +40
Relative humidity, %	10 ~ 90 (without condensation)
Dimensions (W × H × D), mm	120 × 120 × 110
Weight, kg	1.35

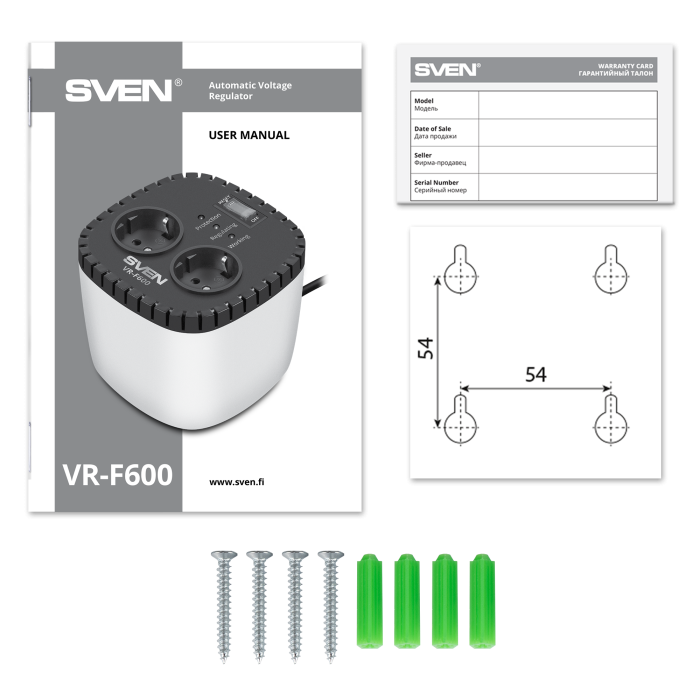

Package contents

Automatic voltage regulator — 1 pc
User manual — 1 pc
Warranty card — 1 pc

Other items

SVEN KB-S307M

Wired keyboard

SVEN GC-400 Gamepad

Windows/PS3/PS4 compatible wired gamepad

SVEN MK-600

Desktop gaming microphone with backlight

SVEN GS-9200

Gaming set: keyboard + mouse + mousepad

SVEN MS-305

Multifunctional speaker system with Bluetooth, USB/SD player, FM radio, display, remote control

SVEN 320

Speaker system with illuminated volume control

SVEN HDMI High Speed Flat

HDMI to HDMI (2.0) cable

SVEN MS-312

Backlit gaming speaker system, Bluetooth, USB/SD player, FM radio, display, remote control

SVEN GC-5050 Gamepad

Windows/iOS/Android/PS-3/4/N-Switch compatible wireless gamepad

SVEN RX-560SW

Wireless mouse with silent buttons

SVEN SPS-509

USB powered speakers with cabled volume control

New

SVEN G342

Speaker system with Bluetooth and dynamic switchable backlight

SVEN automatic voltage regulators range is well known to users seeking for truly high-quality and reliable protection of electrical appliances as comfortable as possible and without excessive costs. SVEN automatic voltage regulators range has recently been completed with the VR-F600 model, which takes the best of its predecessors and receives a number of important improvements. In particular, the design of the case has been seriously improved, which has become more attractive externally, and also received special mounts for wall mounting, which can greatly facilitate its installation.

Obviously, maximum attention has been paid to safety: housing is traditionally made of durable, non-combustible plastic, with thermal protection of the transformer. However, the main characteristic of SVEN VR-F600 is, of course, full availability for any unpleasant surprises from power grids: from voltage fluctuations to high-frequency and impulse disturbances, which are successfully managed by the integrated varistor. All these features allow the product to be used not only in a standard apartment, but also in country houses or villages, where the quality of power supply is traditionally poor.

SVEN VR-F600 input voltage can vary from 170 to 285 V, while the output will always be 230 V with no more than 10% deviation either upwards or downwards. In case of excessively high or low mains voltage, an automatic switch-off is performed. Upon normalisation of the voltage, the power supply of the appliances is restored, however, a pause of 6 seconds is maintained before the restoration of the power supply. This prevents the connected load from being switched on and off repeatedly when repeated voltage fluctuations occur. In case of serious malfunctions, the automatic fuse integrated in the switch key is triggered.

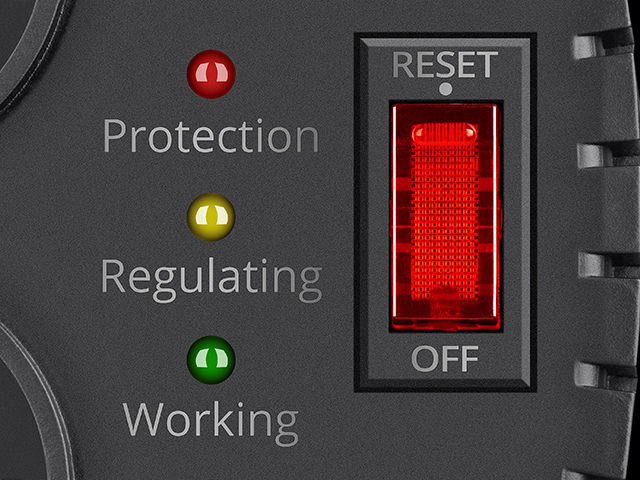

2 CEE7/4 (EU) Euro sockets with safe locking of all types of plugs are used to connect electrical appliances. Three LED status indicators are located near the switch, indicating connection to the mains, stabilisation and overload - the developers have done everything to ensure that the stabiliser is as user-friendly as possible.
