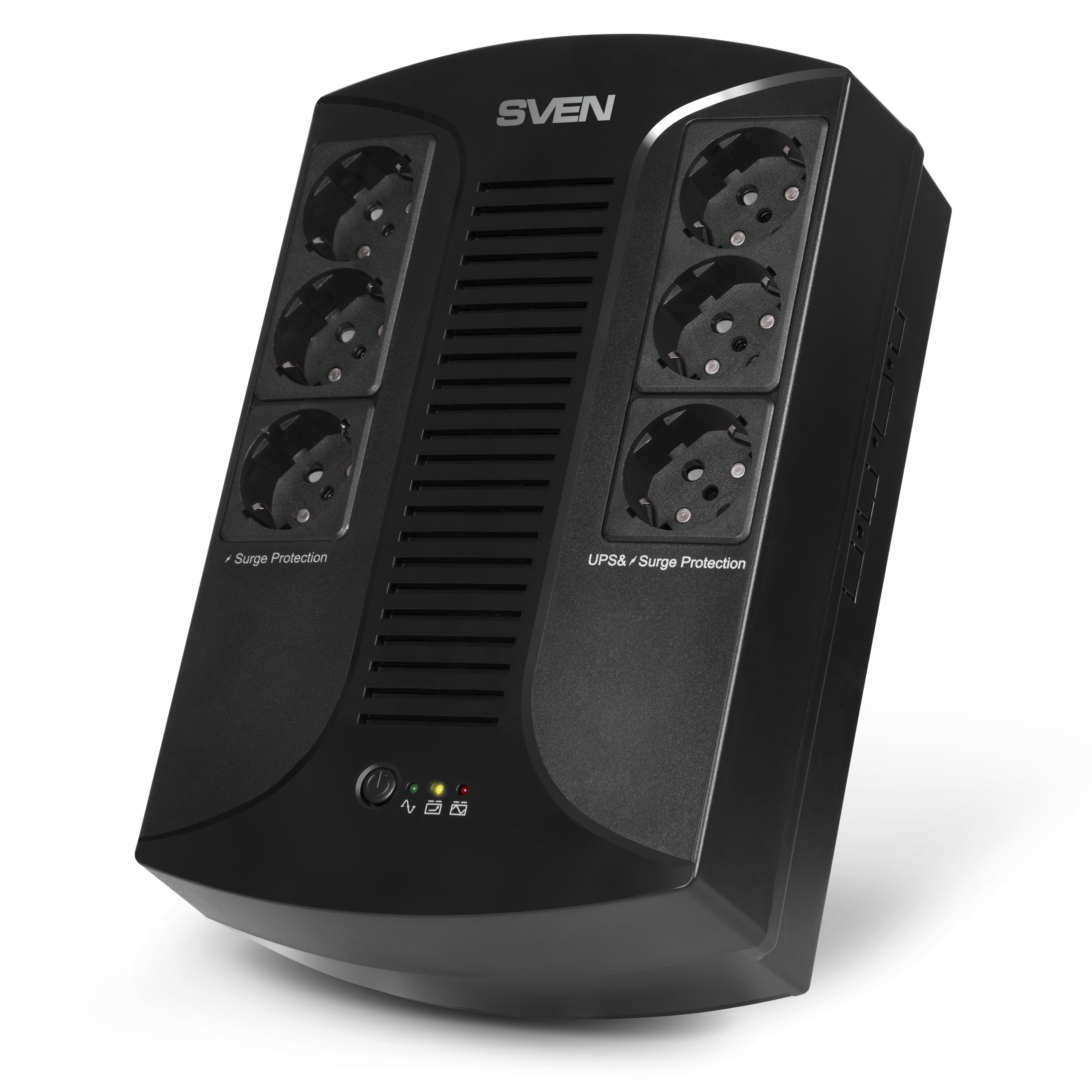

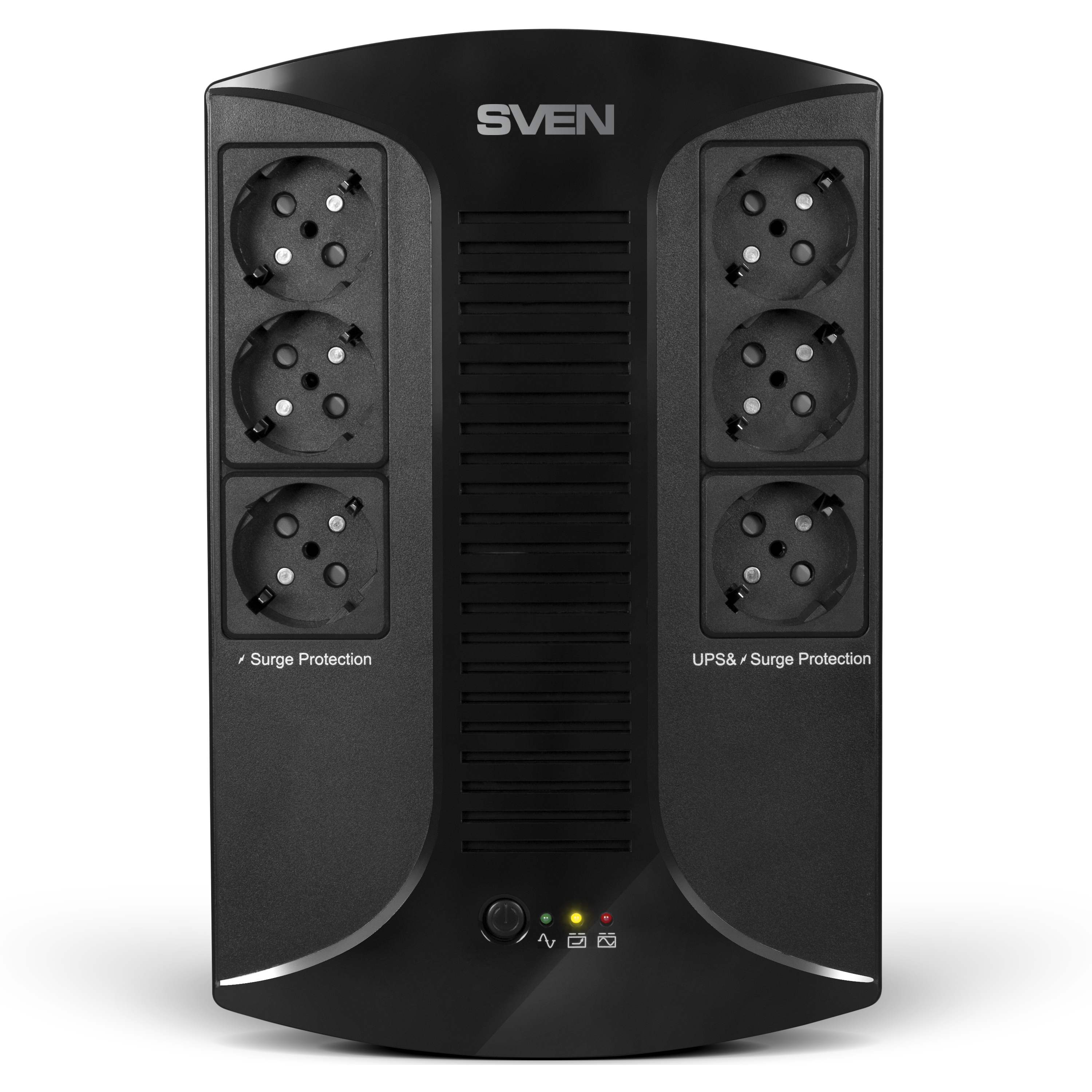

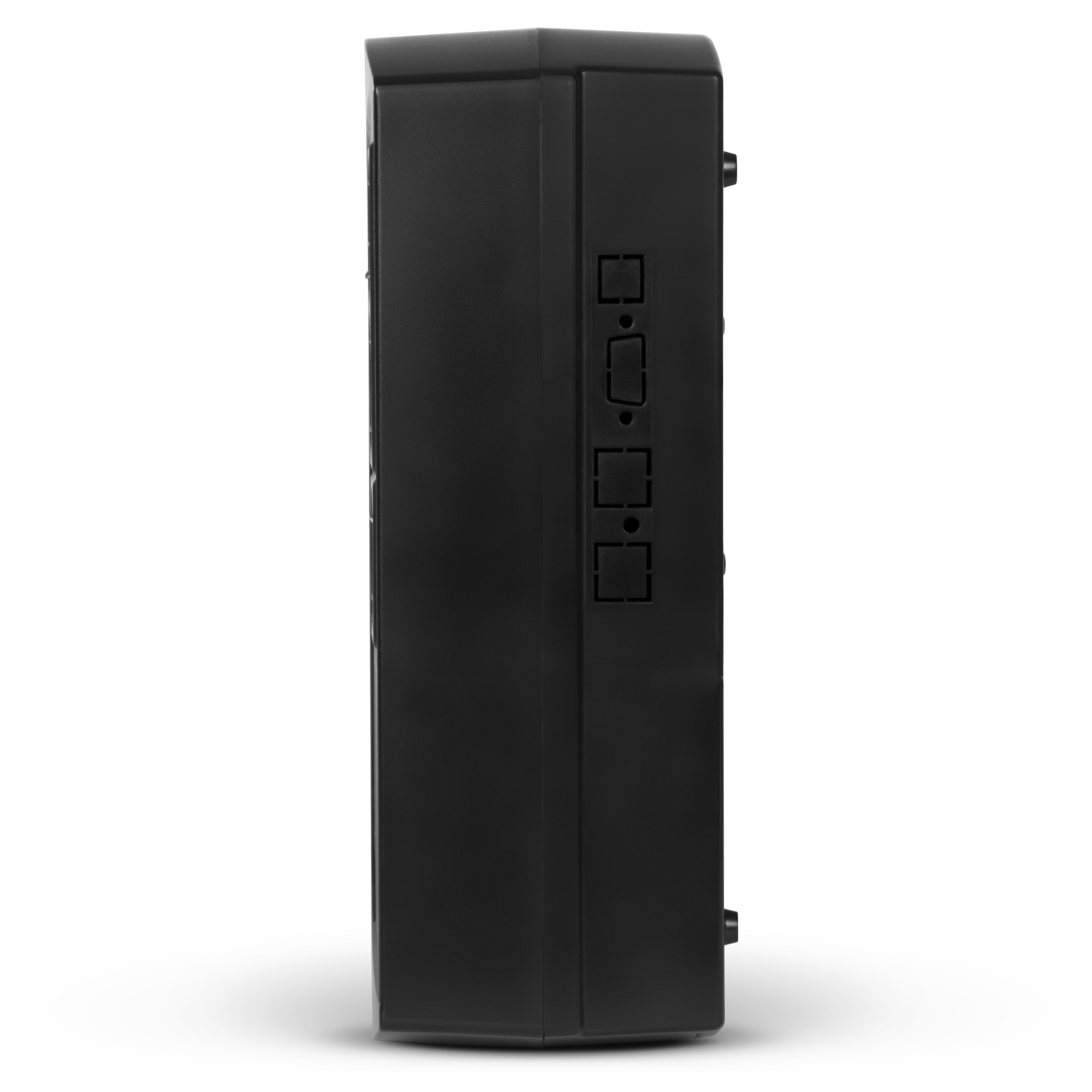

SVEN UP-L1000E
Line interactive UPS, 510W, 6 sockets
.png "Built-in automatic voltage regulator")
.png "Output voltage range")
AN: SV-016593
SVEN UP-L1000E
Line interactive UPS, 510W, 6 sockets
Short product description:
- Line Interactive UPS Type

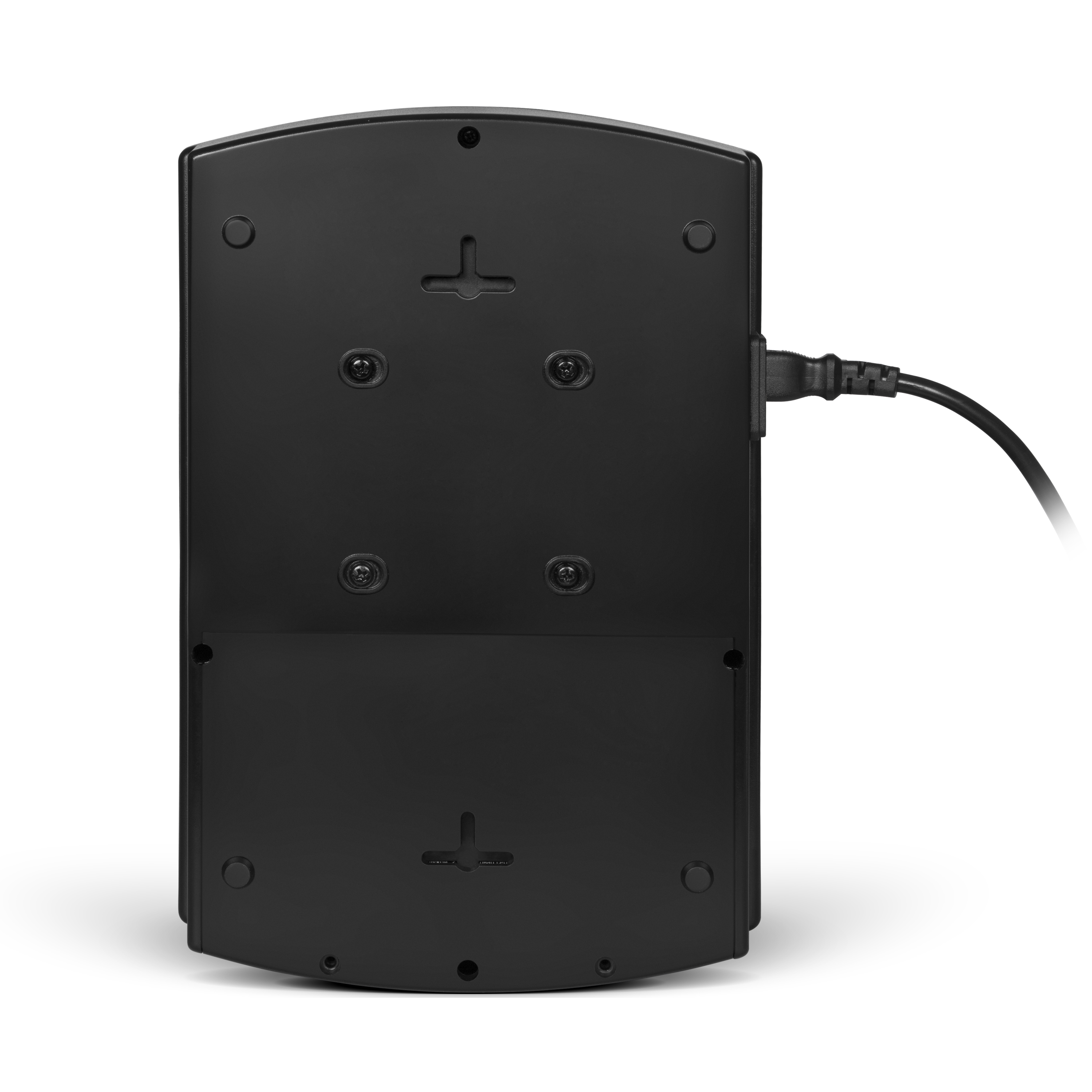

- Wall mountable
- Microprocessor control
- Built-in AVR with wide input voltage range
Similar products
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1000 (USB)
SVEN Pro 1500 (LCD, USB)
SVEN UP-L800
SVEN RT-500
SVEN RT-1000
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1000 (USB)
SVEN Pro 1500 (LCD, USB)
SVEN UP-L800
SVEN RT-500
SVEN RT-1000
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Line Interactive UPS Type
- Wall mountable
- Microprocessor control
- Input voltage ~175–290V (±3%)
- Output voltage ~230V (-14/+10%)
- Built-in AVR with wide input voltage range
- Automatic self-testing when turned on
- Cold start function
- "Autostart" function when connecting/ restoring mains power
- Sinusoidal output voltage during battery operation
- Built-in surge protector for protection against HF pulses and interference
- Six euro sockets CEE7/4 (EU) with durable fixation of plugs of any type
- Children protection
- Thermal protection of the transformer
| UPS type | line-interactive |
| Total power, VА | 1000 |
| Active power, W | 510 |
| Input voltage level, V | ~175 – 290 (± 3 %) |
| Output voltage level, V | ~230 (-14/+10%) |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 |
| Number of phases | 1 |
| Battery voltage, V | 12 |
| Battery capacity, А•h | 9 |
| Typical switching time, ms | ≤ 10 |
| AGM battery model recommended for use in this model of UPS | SV1272 / SV1290 |
| Environmental temperature, °С | from 5 to 40 |
| Relative humidity, % | 10 ~ 90, without condensation |
| Dimensions (W × H × D), mm | 185 × 95 × 280 |
| Weight, kg | 5.38 |
| Color | black |
| Life time | 5 years |

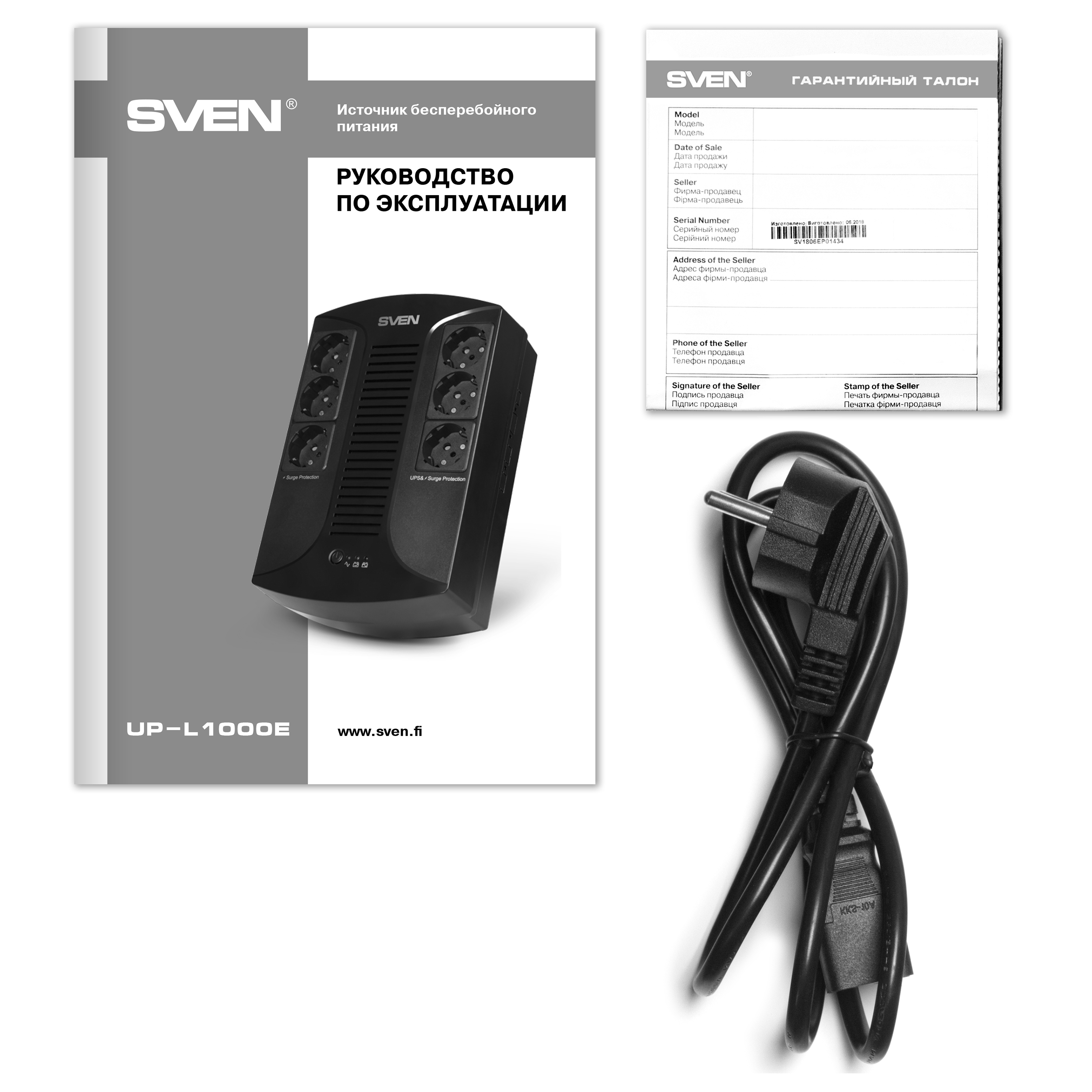

Package contents
- Uninterruptible power supply — 1 pc
- Operation manual — 1 pc
- Warranty card — 1 pc
