SVEN Pro 1500 (LCD, USB)
Line interactive UPS with LCD, 900W, 3 sockets, USB
.png "Built-in automatic voltage regulator")
AN: SV-013875
SVEN Pro 1500 (LCD, USB)
Line interactive UPS with LCD, 900W, 3 sockets, USB
Short product description:
- Line Interactive UPS Type
- Multifunctional LCD display
- Built-in AVR with wide input voltage range
- Automatic self-testing when turned on
Similar products
SVEN USB 2.0 Am-Bm
SVEN USB 2.0 Am-Af Extension
SVEN USB 2.0 PRO Am-Bm
SVEN USB 2.0 A-microUSB
SVEN HDMI (2.0)
SVEN HDMI High Speed Rotate
SVEN HDMI High Speed Flat
SVEN USB 2.0 Am-Bm
SVEN USB 2.0 Am-Af Extension
SVEN USB 2.0 PRO Am-Bm
SVEN USB 2.0 A-microUSB
SVEN HDMI (2.0)
SVEN HDMI High Speed Rotate
SVEN HDMI High Speed Flat
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT

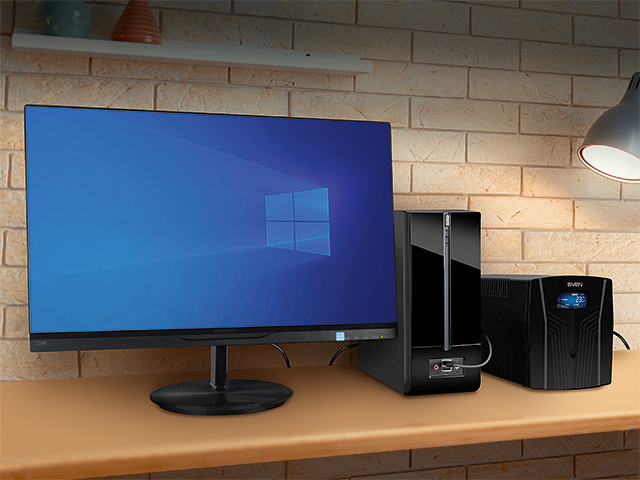

CONNECTION TO PC FOR CONFIGURATION AND CONTROL
UPS can connect to a PC for interaction with software* for configuration and monitoring.
* The software only works with Windows 7/8/10/11

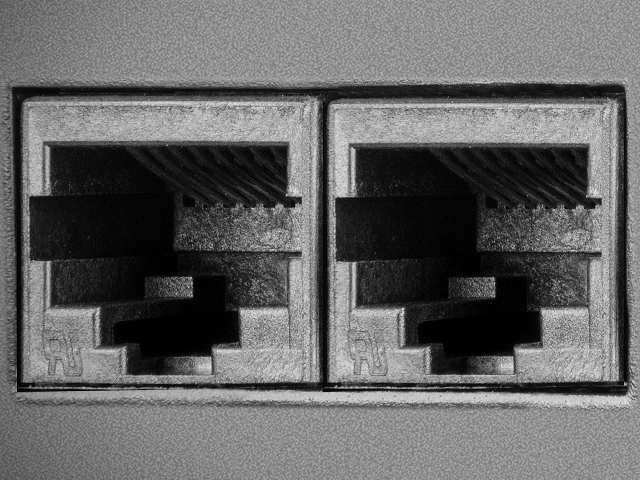

Protection of connected equipment via RJ-45 port
Built-in RJ-45 ports allow to protect network and other applicable equipment.

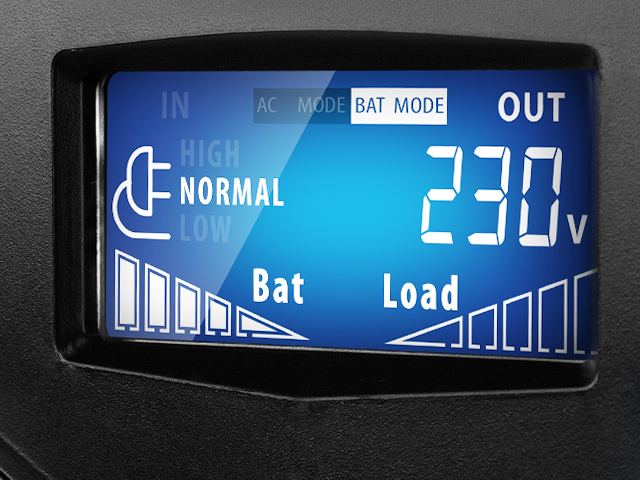

Multifunctional LCD display
Multi-functional LED display gives a user full range of information about current state and operation modes of the device.

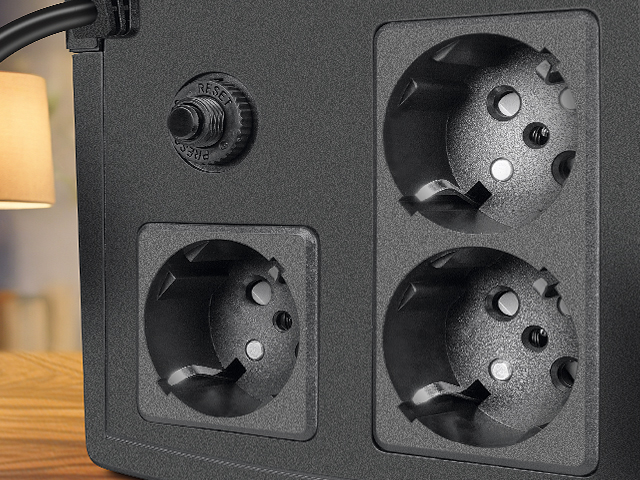

Three euro sockets CEE7/4 (EU)
UPS is fitted with three euro sockets CEE7/4 (EU) with reliable fixation of any plugs.
- Line Interactive UPS Type
- Multifunctional LCD display
- Input voltage ~175-280V (±3%)
- Output voltage ~230V (-14/+10%)
- Built-in AVR with wide input voltage range
- Automatic self-testing when turned on
- Cold start function
- "Autostart" function when connecting / restoring mains power
- Sinusoidal output voltage during battery operation
- Built-in surge protector for protection against HF pulses and interference
- Three euro sockets CEE7/4 (EU) with durable fixation of plugs of any type
- Children protection
- Thermal protection of the transformer
- Protection of connected equipment via RJ-45 port
- Connection to a computer via USB port to control the operation of the UPS*
* The software only works with Windows 7/8/10/11
| UPS type | line-interactive |
| Total power, VА | 1500 |
| Active power, W | 900 |
| Type of load | computer, monitor |
| Input voltage level, V | 175 – 280 ± 3% |
| Output voltage level, V | ~230 (-14/+10%) |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 ± 1 % (backup mode) |
| Battery voltage, V | 2 × 12 |
| Battery capacity, А•h | 2 × 9 |
| Typical switching time, ms | ≤ 10 |
| Batteries operation time, min | 3-20 (dependent on connected load) |
| AGM battery model recommended for use in this model of UPS | 2 × SV1272 / 2 × SV1290 |
| Environmental temperature, °С | 0 – 40 |
| Relative humidity, % | 10 – 90 |
| Efficiency, % | > 70 |
| Dimensions (W × H × D), mm | 175 × 140 × 350 |
| Weight, kg | 9.48 |
| Color | black |
| Life time | 5 years |

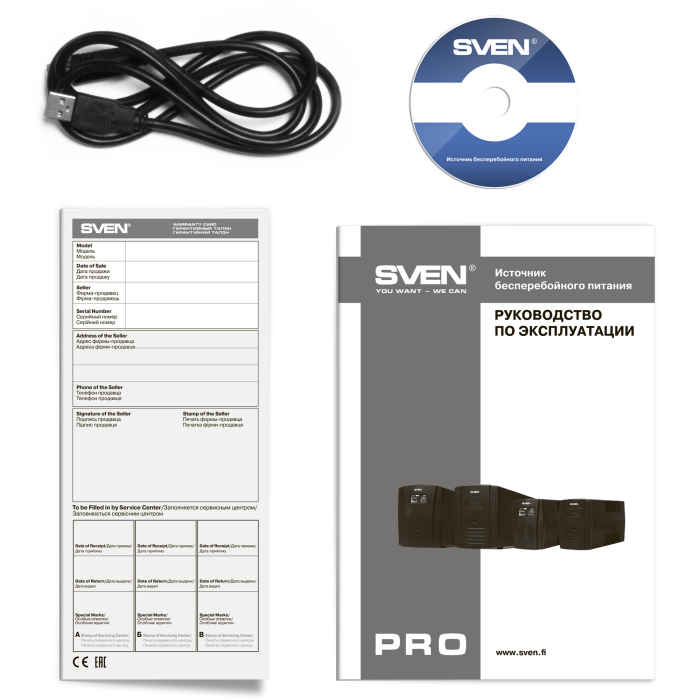

Package contents
- Uninterruptible power supply — 1 pc
- Software CD disk — 1 pc
- Interface cable — 1 pc
- Operation manual — 1 pc
- Warranty card — 1 pc
