SVEN RN-16D
Voltage relay with LCD, 3300W
AN: SV-016586
SVEN RN-16D
Voltage relay with LCD, 3300W
Short product description:
- Protection of connected devices against high/low voltage in ...
- Protection of connected devices against impulse noises in th...
- Programmable disconnection thresholds and turn-on delay time...
- Nonvolatile memory of programmed settings
Similar products
SVEN PS-1000
SVEN PS-950
SVEN PS-930
SVEN HA-930
SVEN PS-860
SVEN PS-850
SVEN PS-800
SVEN PS-770
SVEN PS-750
SVEN PS-740
SVEN PS-730
SVEN PS-720
SVEN PS-710
SVEN PS-680
SVEN PS-670
SVEN PS-655
SVEN PS-650
SVEN PS-550
SVEN PS-555
SVEN PS-390
SVEN PS-380
SVEN PS-370
SVEN PS-360
SVEN PS-340
SVEN PS-315
SVEN PS-265
SVEN PS-260
SVEN PS-255
SVEN PS-235
SVEN PS-165
SVEN PS-155
SVEN PS-150
SVEN PS-99
SVEN PS-1000
SVEN PS-950
SVEN PS-930
SVEN HA-930
SVEN PS-860
SVEN PS-850
SVEN PS-800
SVEN PS-770
SVEN PS-750
SVEN PS-740
SVEN PS-730
SVEN PS-720
SVEN PS-710
SVEN PS-680
SVEN PS-670
SVEN PS-655
SVEN PS-650
SVEN PS-550
SVEN PS-555
SVEN PS-390
SVEN PS-380
SVEN PS-370
SVEN PS-360
SVEN PS-340
SVEN PS-315
SVEN PS-265
SVEN PS-260
SVEN PS-255
SVEN PS-235
SVEN PS-165
SVEN PS-155
SVEN PS-150
SVEN PS-99
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Protection of connected devices against high/low voltage in the power supply network
- Protection of connected devices against impulse noises in the power supply network (varistor)
- Programmable disconnection thresholds and turn-on delay time
- Nonvolatile memory of programmed settings

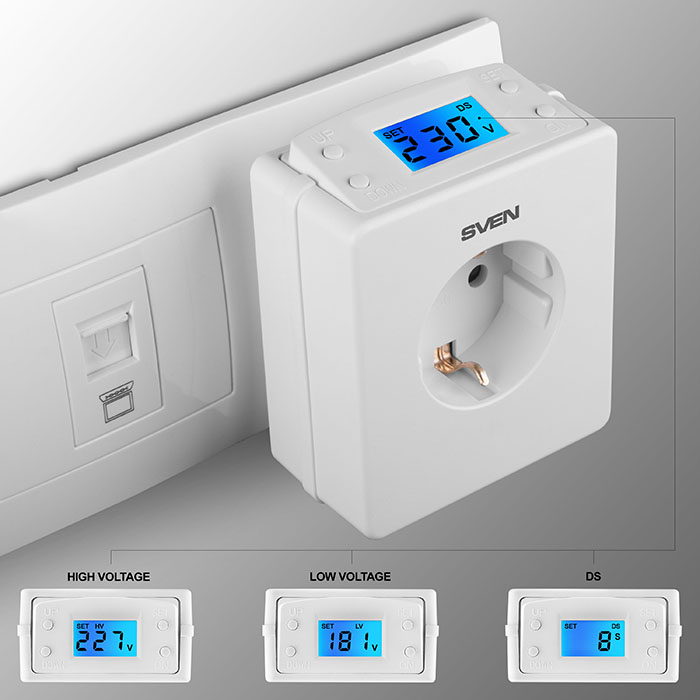

- Multifunctional LCD display to show voltage level in the power supply net work, delay time and protection status indication
- Protective shutters in the output socket
- Presence of protective, fuse * 15А
| Measured voltage, V | 140 – 280 |
| Operating frequency, Hz | 50 |
| Maximum load current, А | 15 |
| Maximum power, kVА | ≤3.3 |
| Maximum absorbed power, J | ≤125 |
| Maximum absorbed current of pulse distortion, A |
operating mode: 2500 protective mode: 4500 |
| Operation threshold to decrease power supply voltage, V | ~150 - 215 ± 2% |
| Operation threshold to increase power supply voltage, V | ~ 225 - 275 ± 2% |
| Output sockets | 1× СЕЕ 7/4 |
| Protection actuation time, sec | ≤ 0,3 sec |
| Dimensions (W × H × D), mm | 73 × 78 × 86.7 |
| Weight, kg | 0.128 |
| Color | white |
| Life time | 2 years |
