SVEN VR-F600
Relay automatic voltage regulator, 200 W, 2 sockets
New
AN: SV-022570
SVEN VR-F600
Relay automatic voltage regulator, 200 W, 2 sockets
Short product description:
- Single-phase relay-type stabilizer
- Thermal protection of the transformer
- LED indication of operating modes
- Two EU sockets CEE7/4 (EU)
Similar products
SVEN VR-L600
SVEN VR-L1000
SVEN VR-L1500
SVEN VR-A1000
SVEN AVR SLIM-500 LCD
SVEN AVR SLIM-1000 LCD
SVEN AVR SLIM-2000 LCD
SVEN VR-F1000
SVEN VR-F1500
SVEN VR-L600
SVEN VR-L1000
SVEN VR-L1500
SVEN VR-A1000
SVEN AVR SLIM-500 LCD
SVEN AVR SLIM-1000 LCD
SVEN AVR SLIM-2000 LCD
SVEN VR-F1000
SVEN VR-F1500
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT

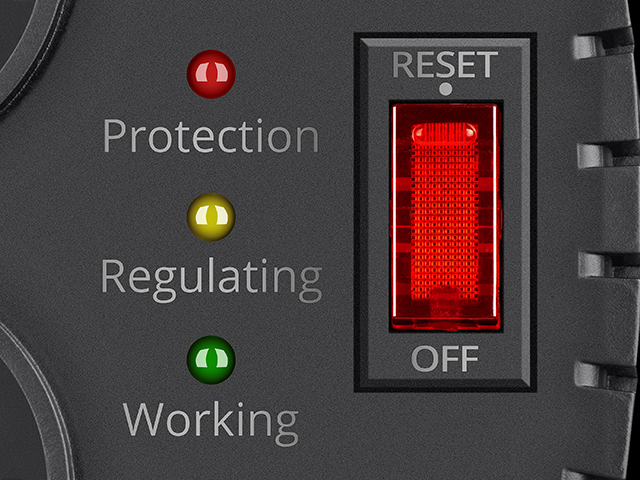

Protection against overloads and short circuits in the switch key
Automatic fuse protecting against overloads and short circuit is located in the switch key, allowing to quickly return the AVR to operation after it is triggered.
Wide range of input voltage
Input voltage, enabling stable operation of the device, varies between 170 and 285 V.

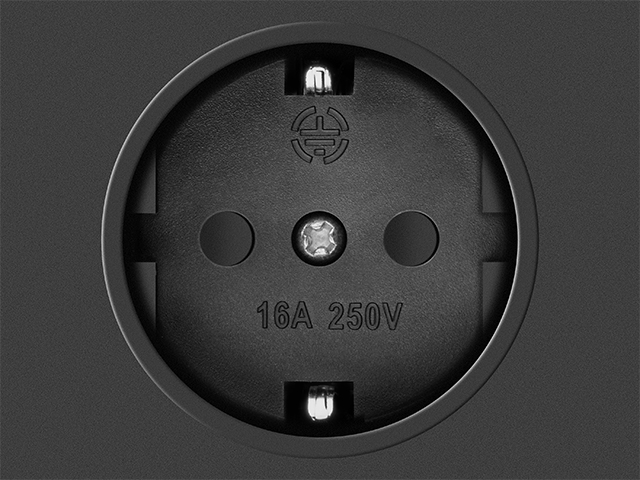

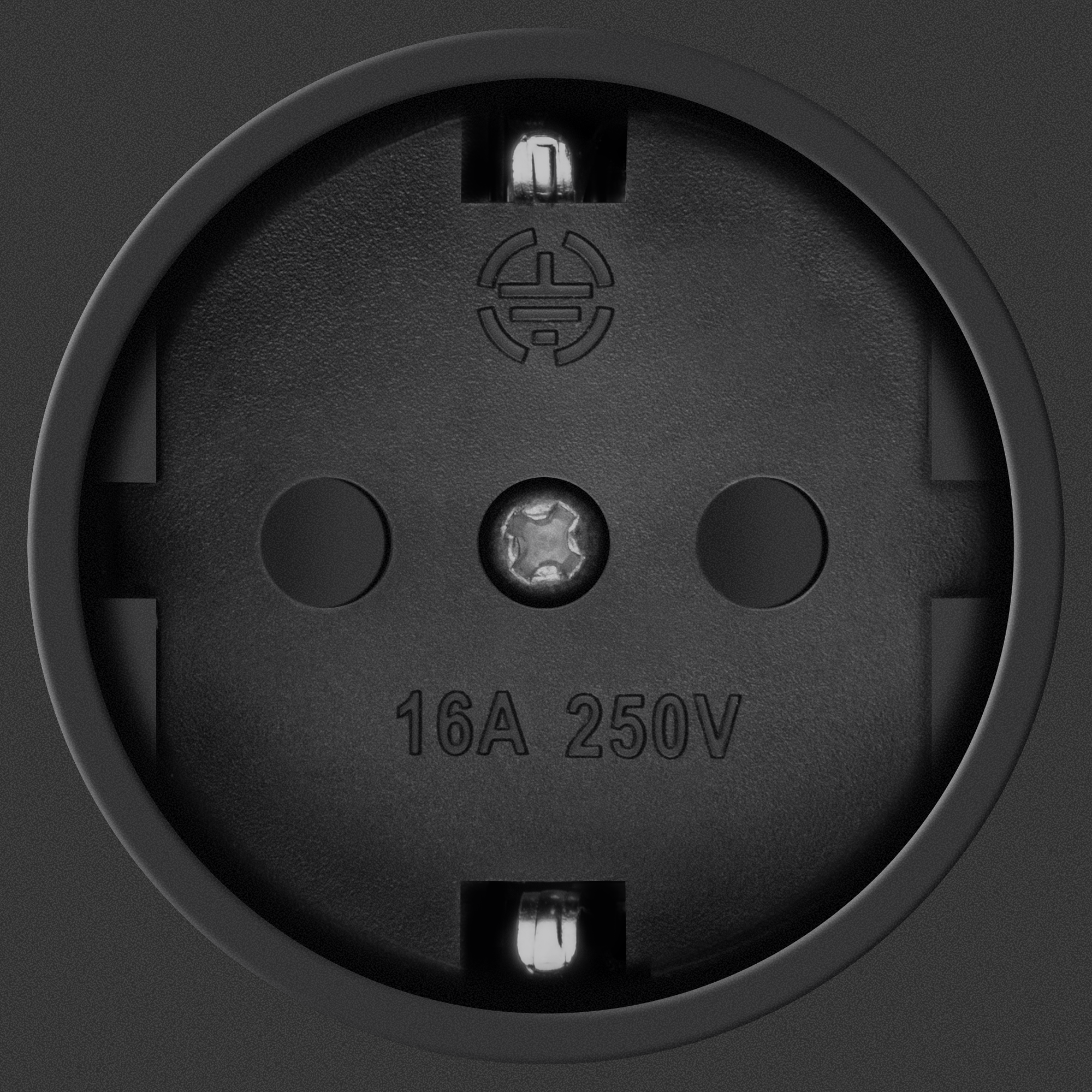

Two euro sockets CEE7/4 (EU) with high quality plug fixation
The device is fitted with two sockets of the european standard CEE7/4 (EU) with a high quality fixation of the plug.
Compact design
Compact design allows the stabilizer to be placed even in confined spaces.
- Single-phase relay-type stabilizer
- Thermal protection of the transformer
- Safe shutdown at high and low mains voltage levels
- LED indication of operating modes
- Automatic fuse for protection against overloads and short circuits in the switch key
- Input voltage ~170-285 V (±3%)
- Output voltage ~230 V (-10/+10%)
- Two EU sockets CEE7/4 (EU) with durable fixation of plugs of any type
- Built-in surge protector for protection against HF pulses and interference
| Maximal output power, W | ≤200 |
| Input voltage, V | ~170 - 285 (±3%) |
| Output voltage, V | ~230 (-10/+10%) |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 |
| Input socket | 1 × СЕЕ7/7 |
| Output sockets | 2 × CEE7/4 |
| Protection operating current, A | 5 |
| Typical switching time, ms | ≤10 |
| Maximum absorbed impulse noise power, J | ≤320 |
| Environmental temperature, °С | 0 to +40 |
| Relative humidity, % | 10 ~ 90 (without condensation) |
| Dimensions (W × H × D), mm | 120 × 120 × 110 |
| Weight, kg | 1.35 |

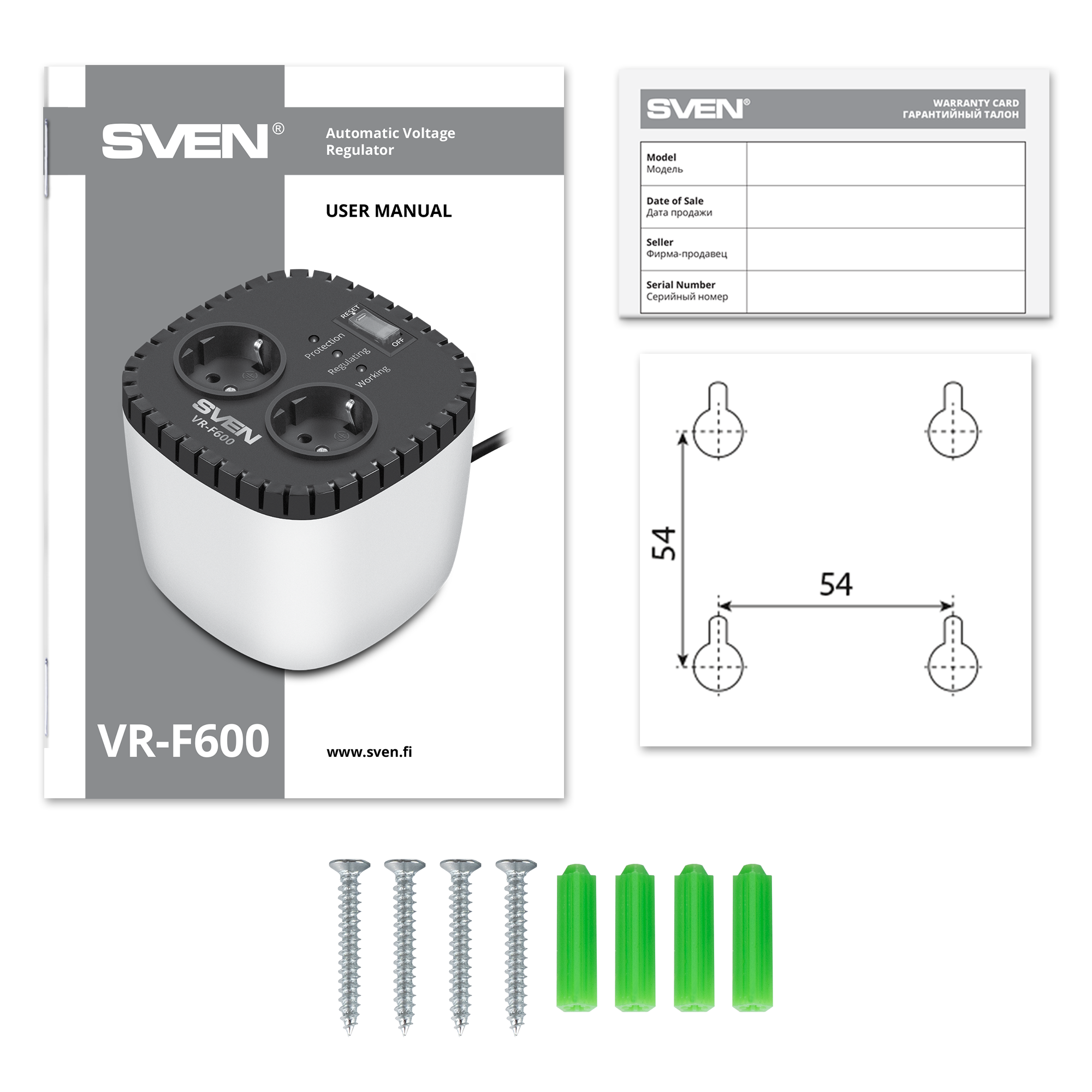

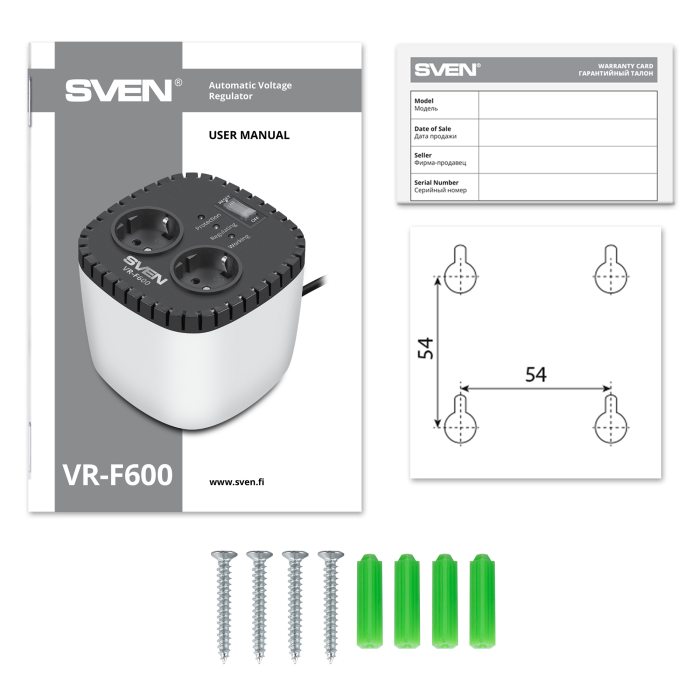

Package contents
- Automatic voltage regulator — 1 pc
- User manual — 1 pc
- Warranty card — 1 pc
.png)
Other items
PS-3/4/XB1/XB360/N-Switch/Windows/Android compatible gaming steering wheel with shift lever
News
06.05.2025
SVEN VR-F600 AUTOMATIC VOLTAGE REGULATOR — FULL POWER SAFETY CONFIDENCE
SVEN automatic voltage regulators range is well known to users seeking for truly high-quality and reliable protection of electrical appliances as comfortable as possible and without excessive costs.
Details >>
17.04.2025
SVEN SF-10E-16 EXTENSION SURGE PROTECTOR — SAFE CONNECTION OF UP TO TEN DEVICES
The main thing that is interesting about SVEN SF-10E-16 is, undoubtedly, the safe and convenient connection of up to 10 devices at once, and with a solid total power.
Details >>
07.04.2025
SVEN MC-50 ACOUSTIC HI-FI SYSTEM — PEOPLE'S FLAGSHIP FROM THE LEGENDARY LINE
For decades, multimedia 2.0 acoustics from our company have enabled a wide range of music lovers to experience real Hi-Fi. Our speakers have always been appreciated not only for their good sound, but also for their affordable price.

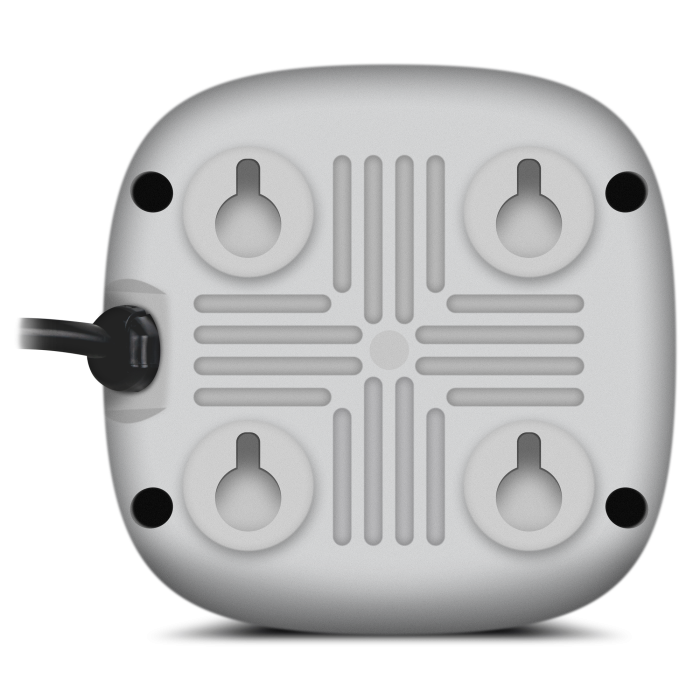

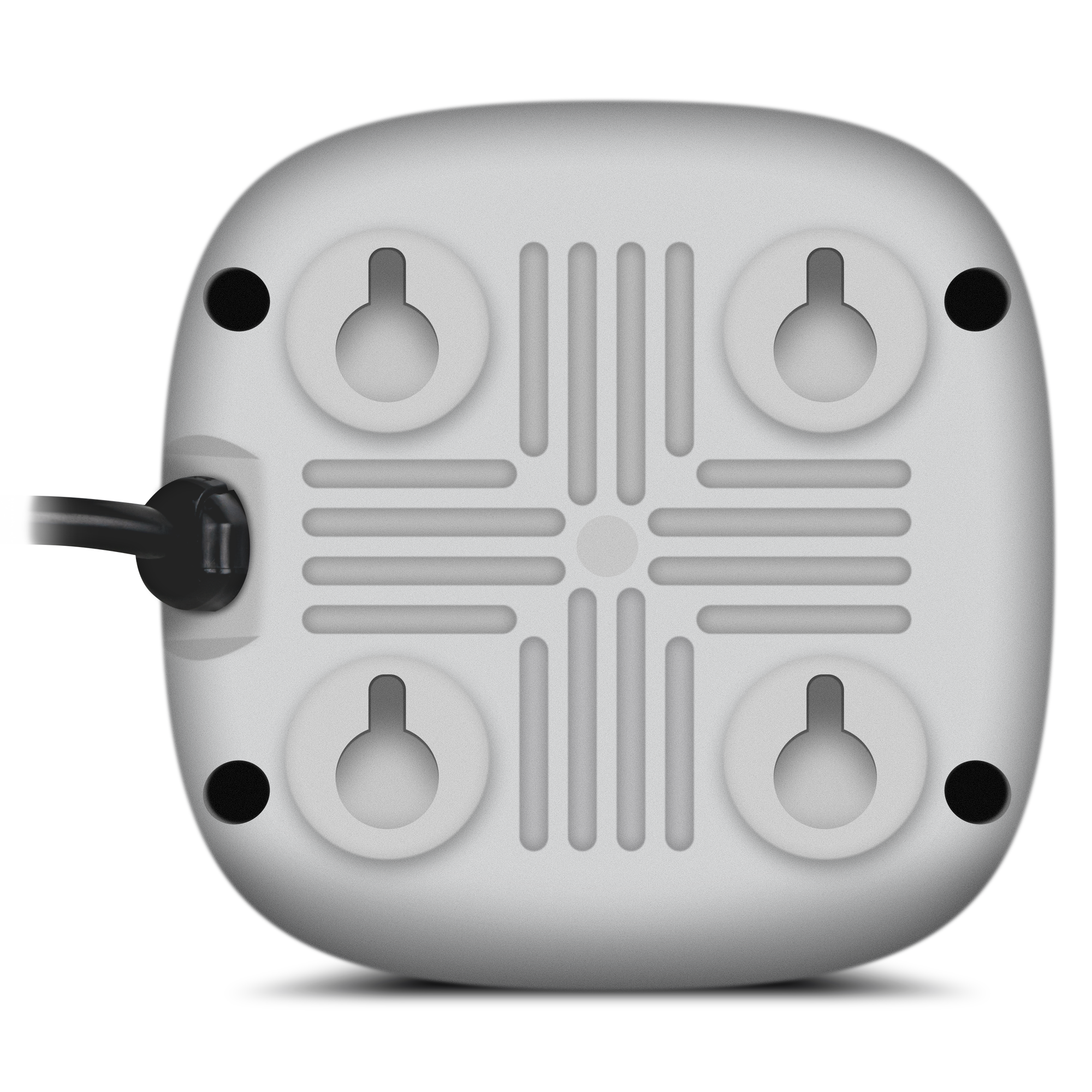

Details >>SVEN automatic voltage regulators range is well known to users seeking for truly high-quality and reliable protection of electrical appliances as comfortable as possible and without excessive costs. SVEN automatic voltage regulators range has recently been completed with the VR-F600 model, which takes the best of its predecessors and receives a number of important improvements. In particular, the design of the case has been seriously improved, which has become more attractive externally, and also received special mounts for wall mounting, which can greatly facilitate its installation.
Obviously, maximum attention has been paid to safety: housing is traditionally made of durable, non-combustible plastic, with thermal protection of the transformer. However, the main characteristic of SVEN VR-F600 is, of course, full availability for any unpleasant surprises from power grids: from voltage fluctuations to high-frequency and impulse disturbances, which are successfully managed by the integrated varistor. All these features allow the product to be used not only in a standard apartment, but also in country houses or villages, where the quality of power supply is traditionally poor.
SVEN VR-F600 input voltage can vary from 170 to 285 V, while the output will always be 230 V with no more than 10% deviation either upwards or downwards. In case of excessively high or low mains voltage, an automatic switch-off is performed. Upon normalisation of the voltage, the power supply of the appliances is restored, however, a pause of 6 seconds is maintained before the restoration of the power supply. This prevents the connected load from being switched on and off repeatedly when repeated voltage fluctuations occur. In case of serious malfunctions, the automatic fuse integrated in the switch key is triggered.

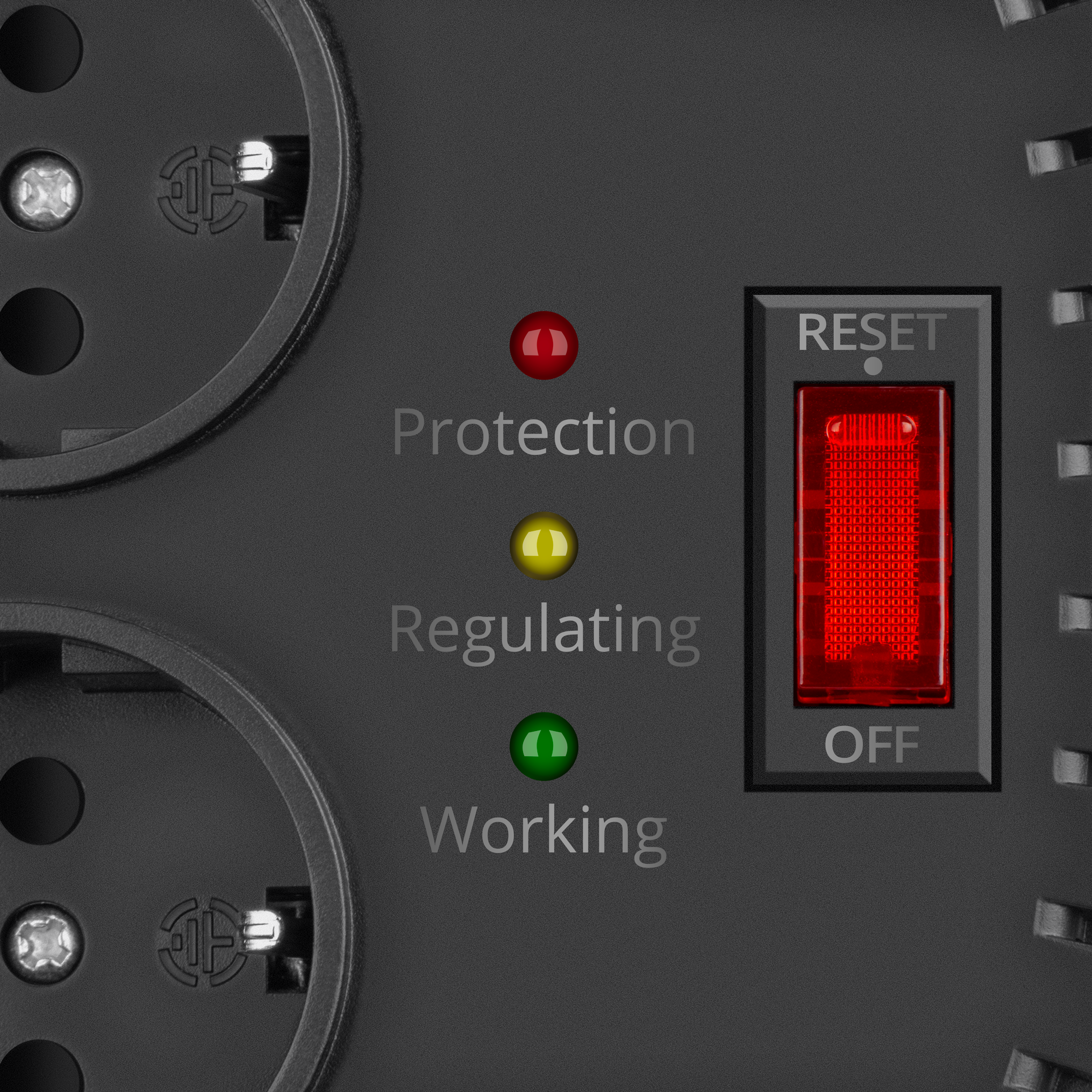

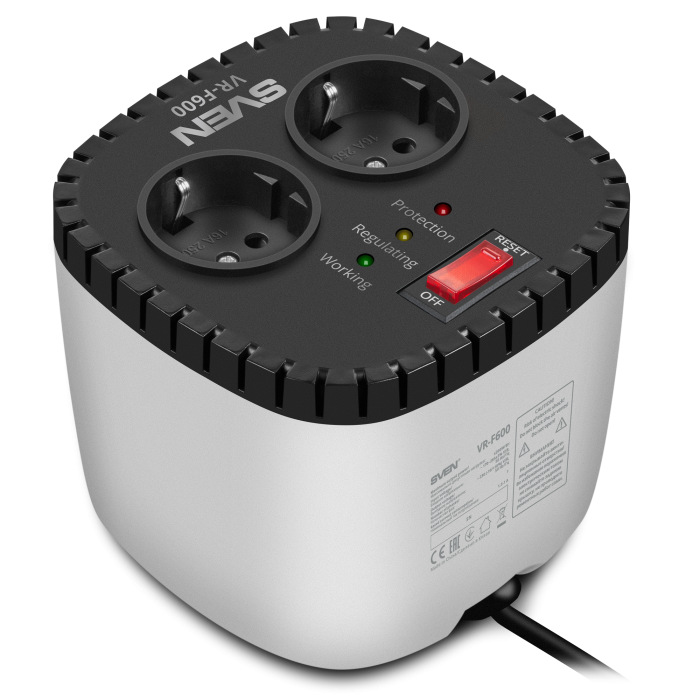

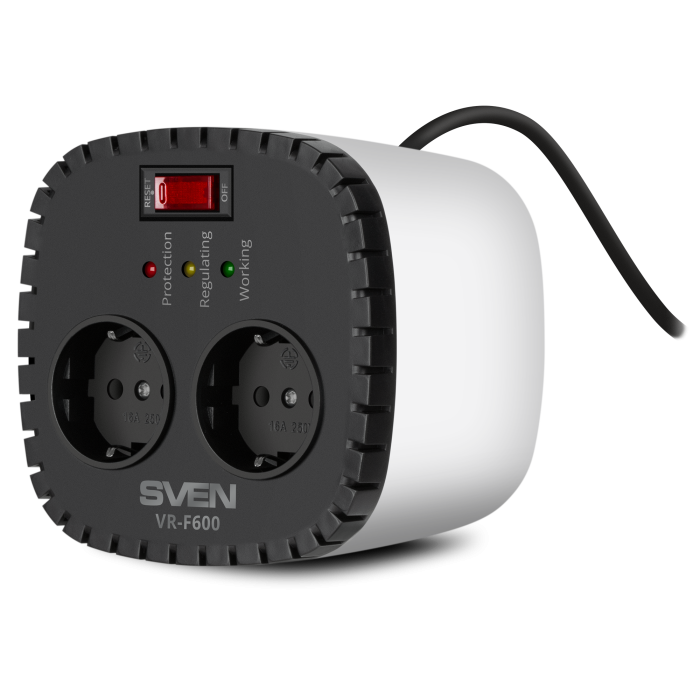

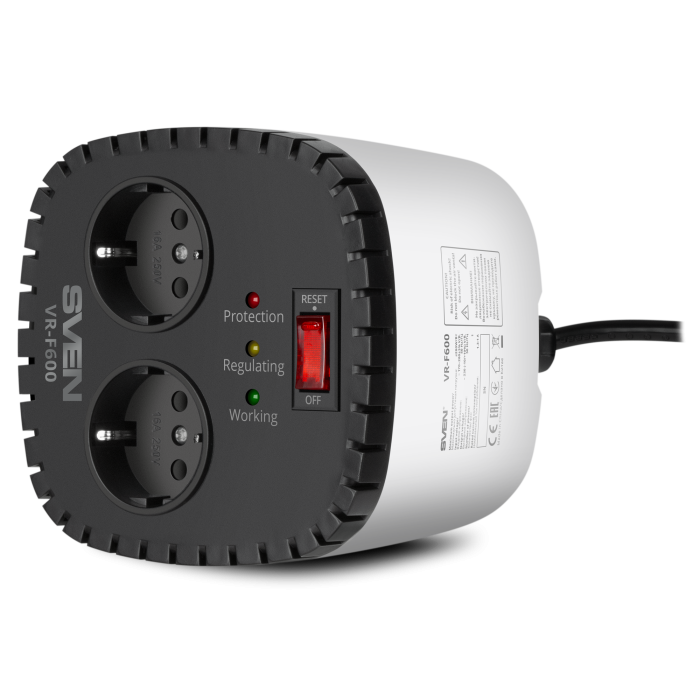

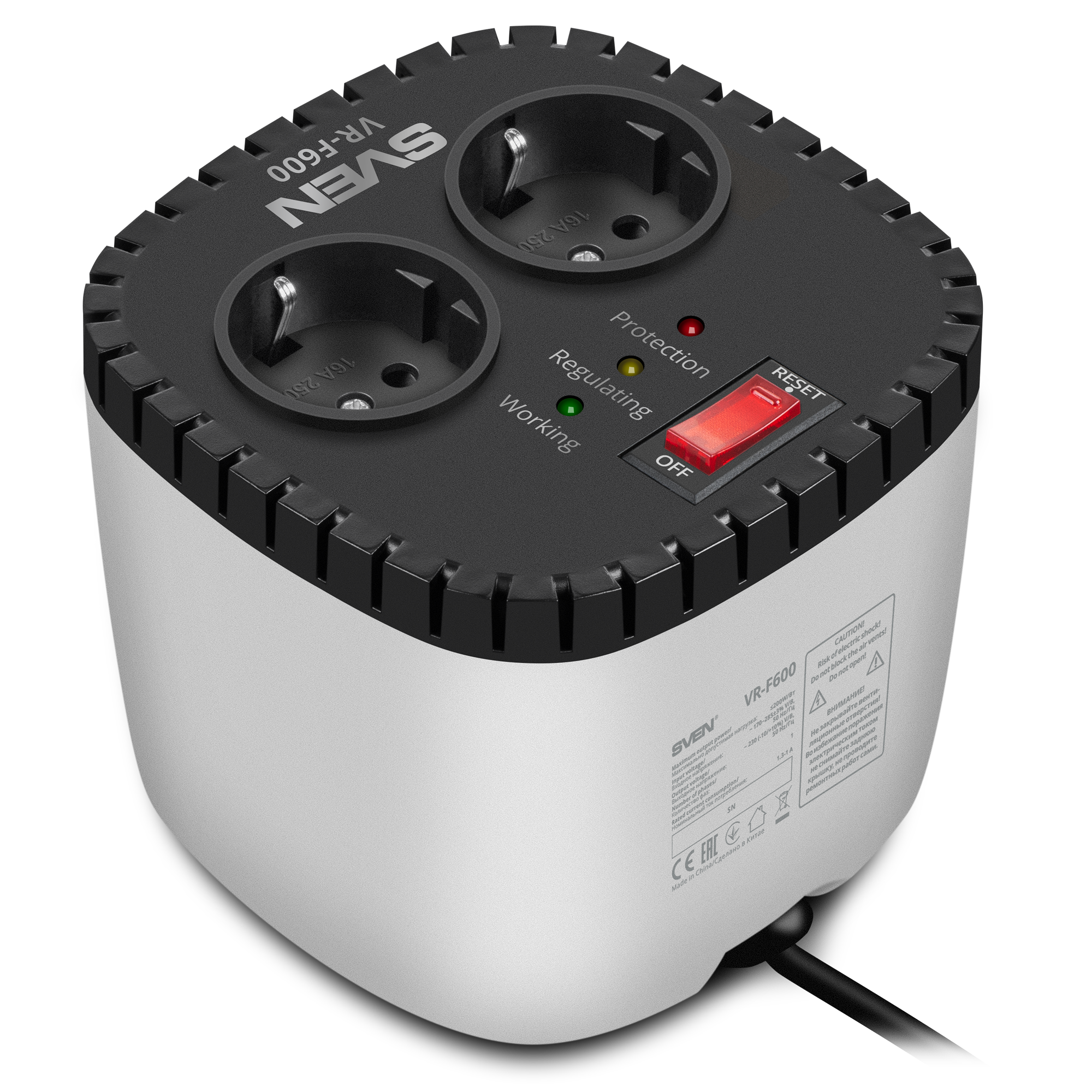

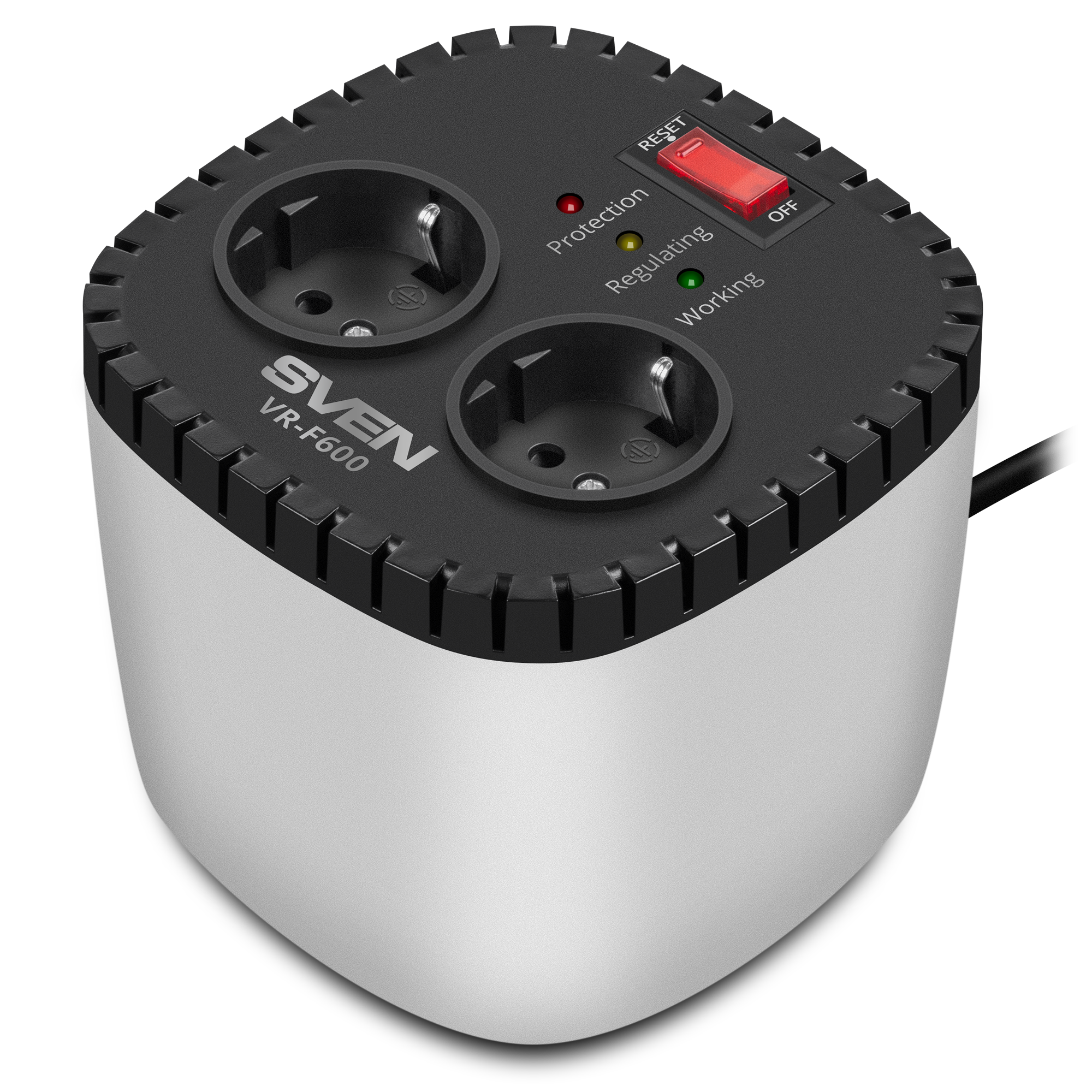

2 CEE7/4 (EU) Euro sockets with safe locking of all types of plugs are used to connect electrical appliances. Three LED status indicators are located near the switch, indicating connection to the mains, stabilisation and overload - the developers have done everything to ensure that the stabiliser is as user-friendly as possible.
