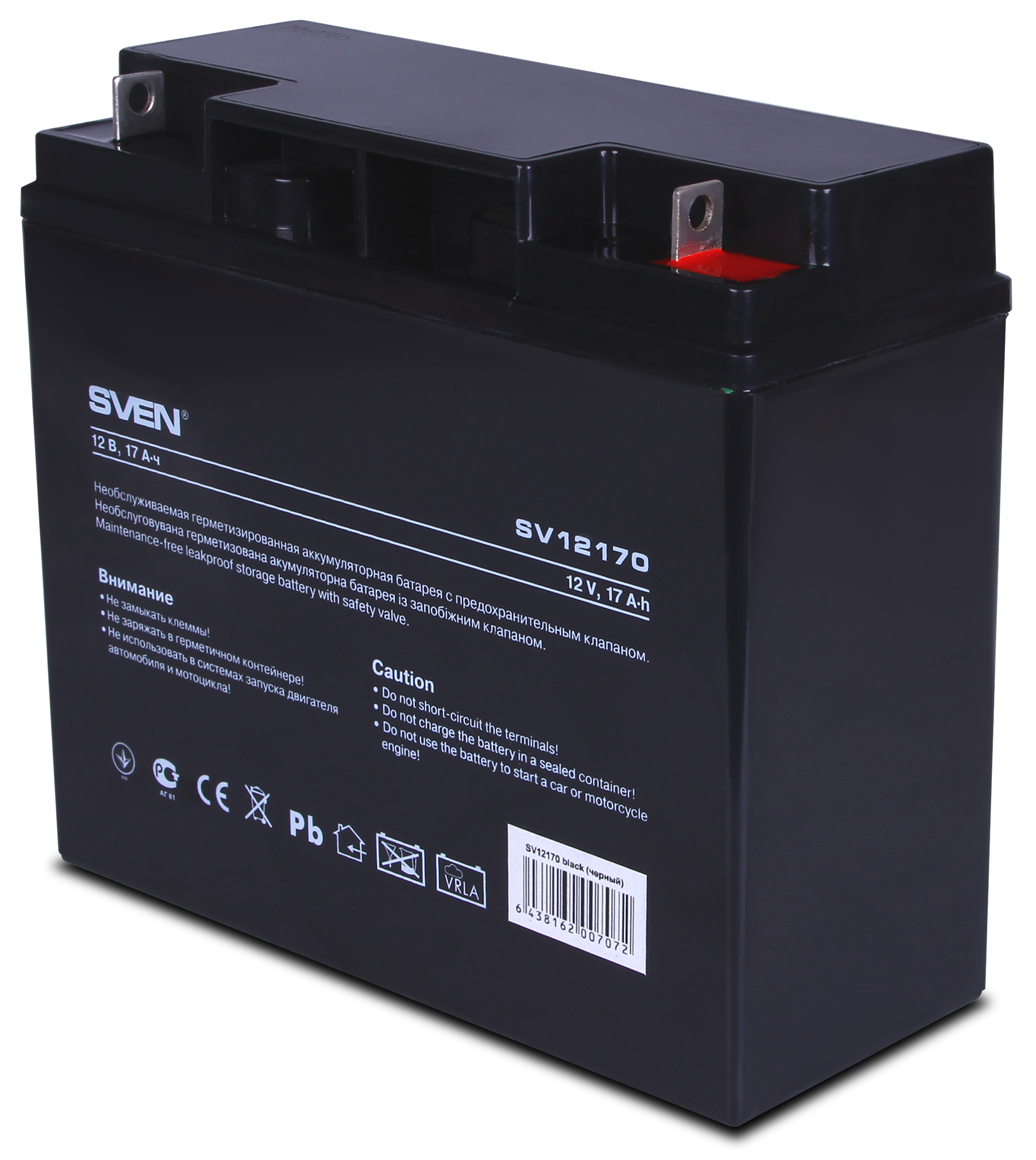

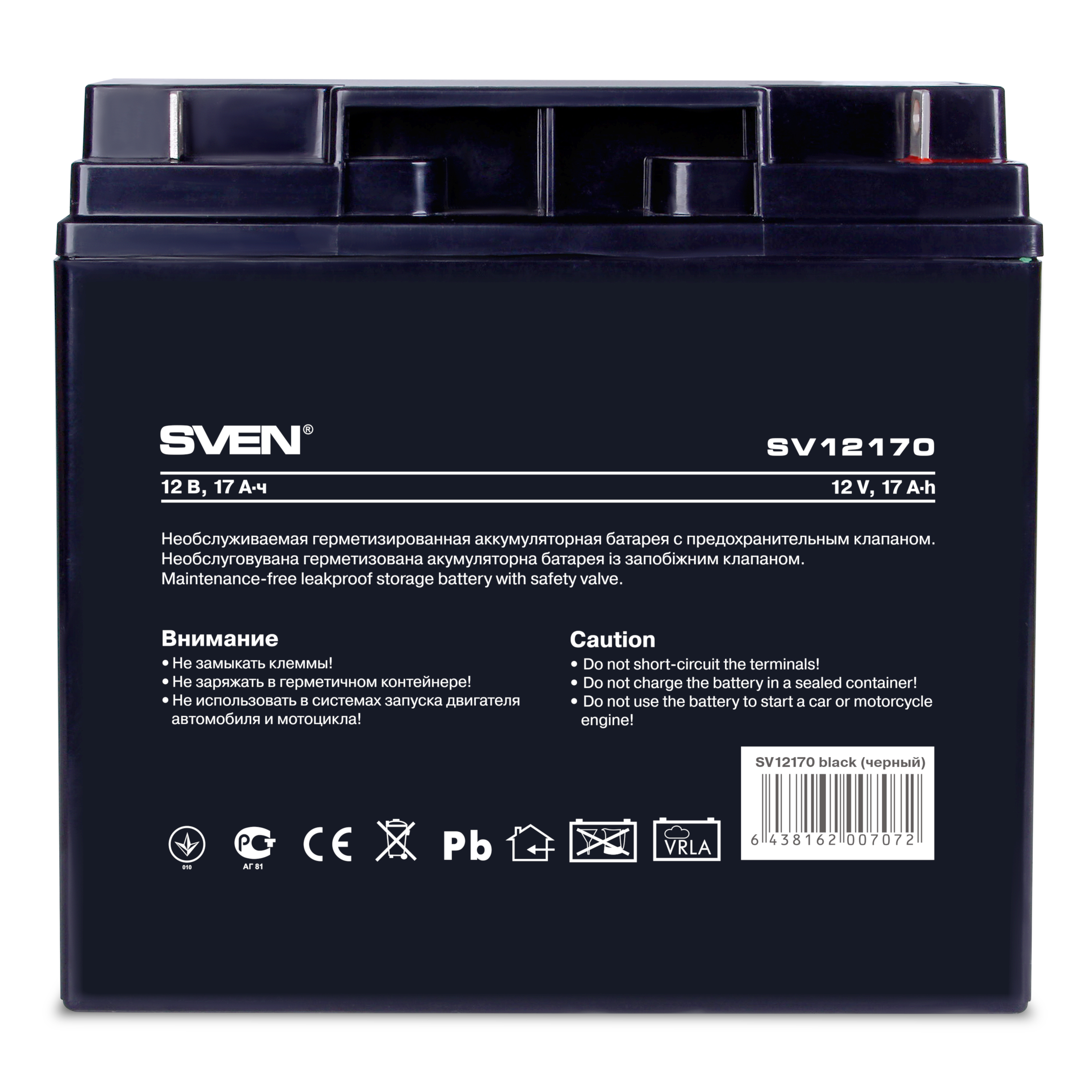

SVEN SV12170
UPS battery 12V 17Ah
AN: SV-0222017
SVEN SV12170
UPS battery 12V 17Ah
Short product description:
- Lead-acid battery of AGM type
- Leak-proof design
- Doesn't require maintenance and service
- Increased service life
Similar products
SVEN E-12 WD (SEB 12 WD)
SVEN E-10 BK (SEB 10 BK)
SVEN E-110
SVEN E-109 (SEB-109)
SVEN E-107
SVEN E-106
SVEN E-12 WD (SEB 12 WD)
SVEN E-10 BK (SEB 10 BK)
SVEN E-110
SVEN E-109 (SEB-109)
SVEN E-107
SVEN E-106
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Lead-acid battery of AGM type
- Leak-proof design
- Maintenance-free: doesn't require maintenance and can operate in any position
- Design of interelectrode separators made of glass fiber increases service life
- Does not liberate gas during operation
- Valve system protecting the battery against increased pressure
- Highly effective lead-calcium electrode grids increasing capacity
- Lowered self-discharge current
| Battery type | Lead-acid AGM type storage battery |
| Rated voltage, V | 12 |
| Maximum discharge current, A | 225 |
| Capacity (20 hours discharge), А • h | 17 |
| Maximum charging current, A | 5.1 |
| Internal resistance, MOhm | 15 |
| Self-discharge (at 25 °C of initial capacity) during the year | up to 36 % |
| Rated operating temperature, °C | 25 |
| Operating temperature range, °C | -20 up to +50 |
| Terminal type | T1 |
| Length, mm | 181 |
| Width, mm | 77 |
| Hight, mm | 167 |
| Total hight, mm | 167 |
| Weight, kg | 5.05 |
| Color | black |
| Life time | 5 years |
