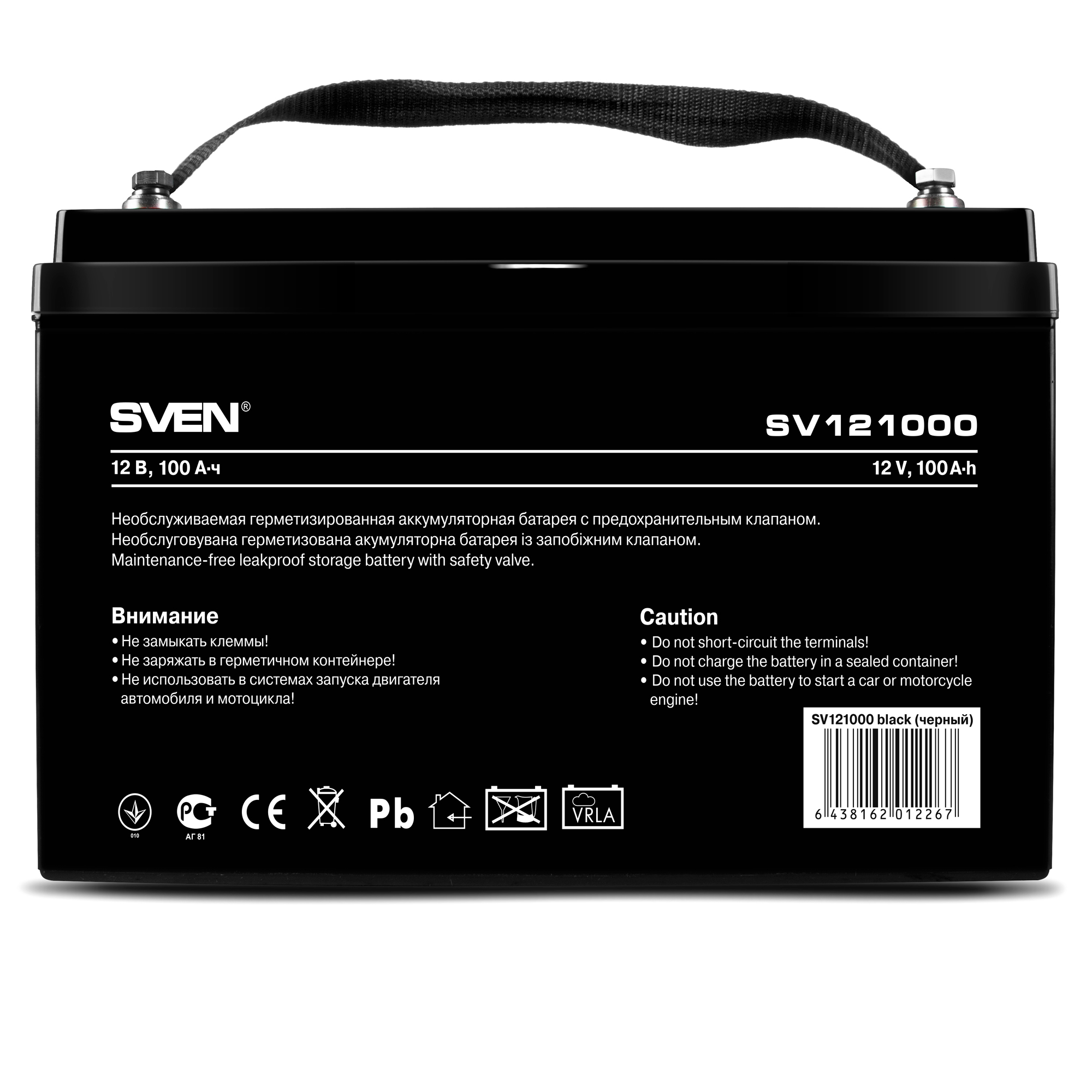

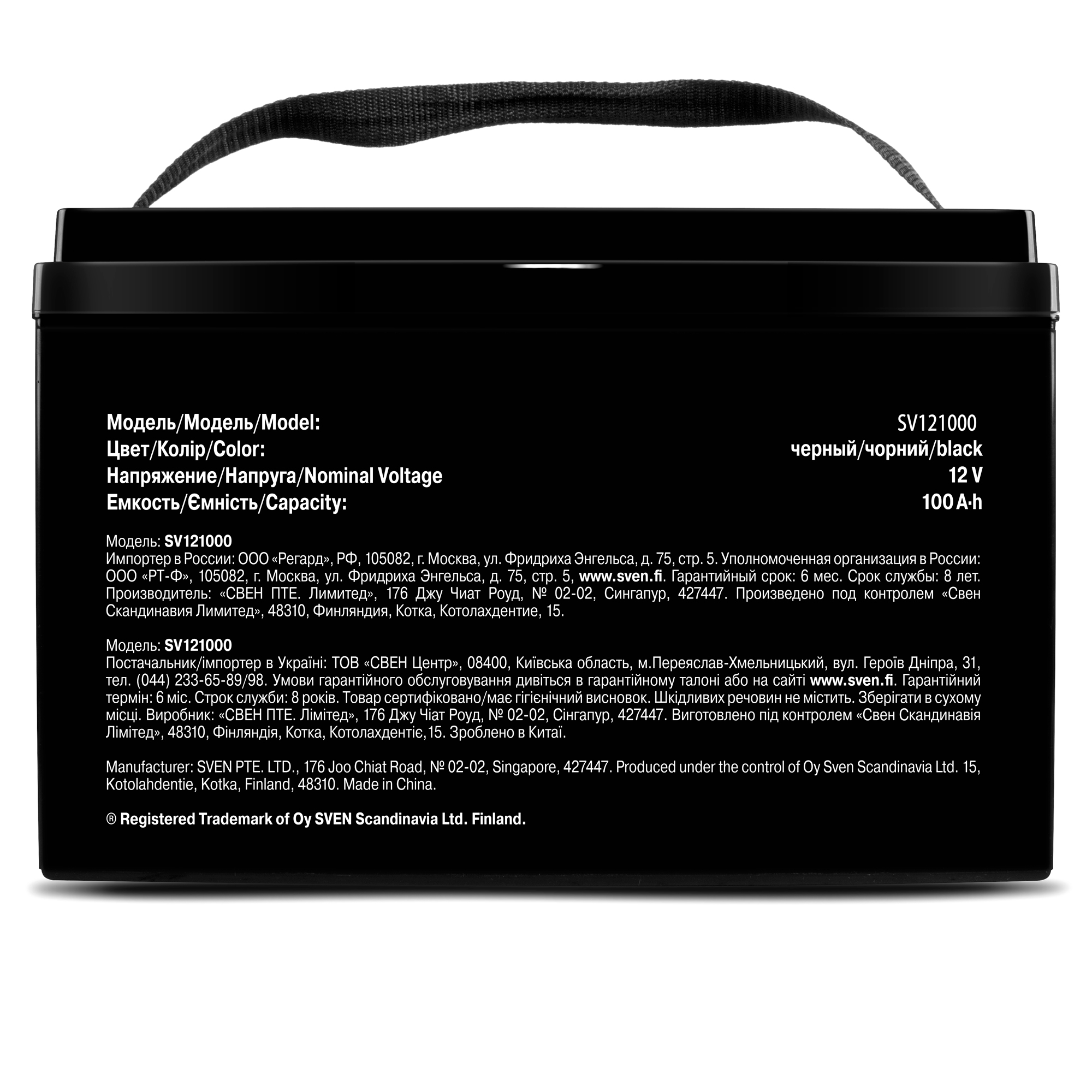

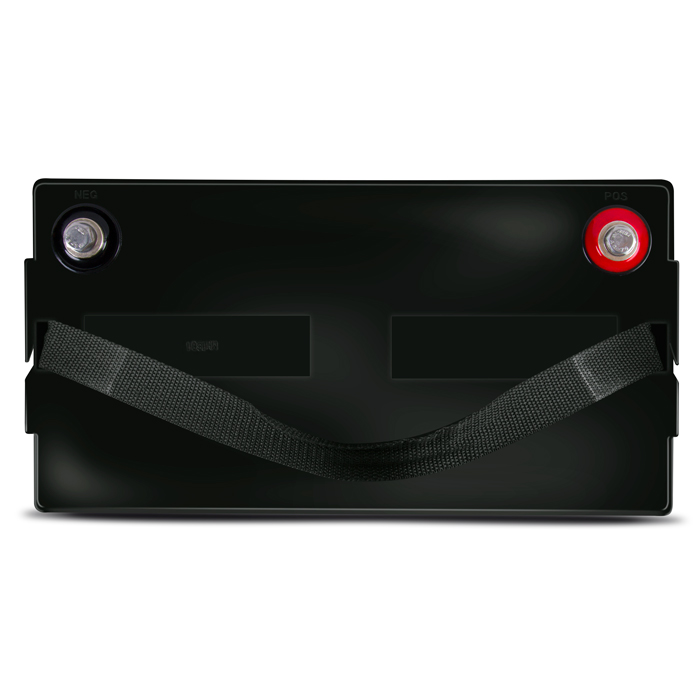

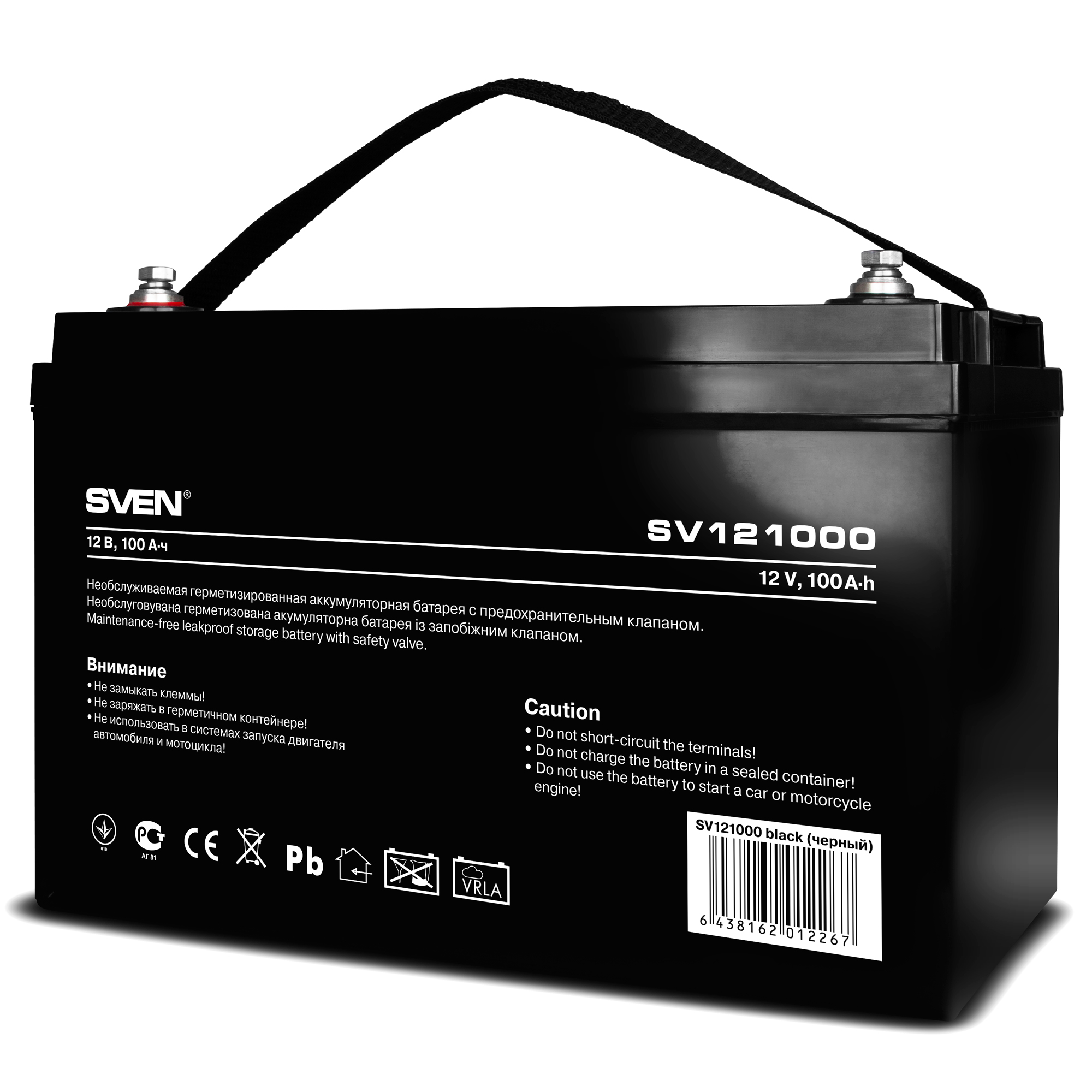

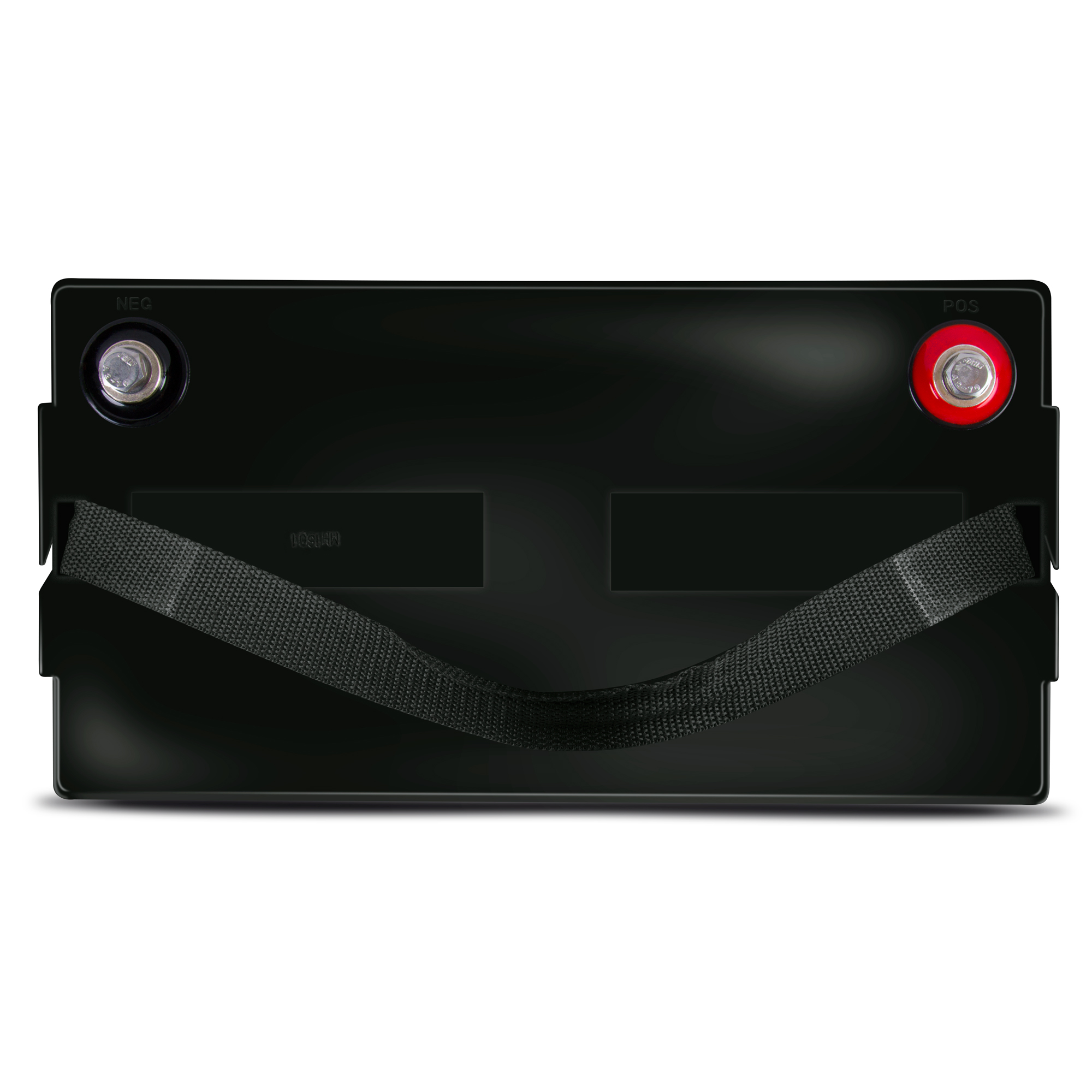

SVEN SV121000
UPS battery 12V 100Ah
AN: SV-012267
SVEN SV121000
UPS battery 12V 100Ah
Short product description:
- Lead-acid battery of AGM type
- Leak-proof design
- Doesn't require maintenance and service
- Increased service life
Similar products
SVEN SV645
SVEN SV1250
SVEN SV1270
SVEN SV1272
SVEN SV1290
SVEN SV12120
SVEN SV12170
SVEN SV645
SVEN SV1250
SVEN SV1270
SVEN SV1272
SVEN SV1290
SVEN SV12120
SVEN SV12170
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Lead-acid battery of AGM type
- Leak-proof design
- Maintenance-free: doesn't require maintenance and can operate in any position
- Design of interelectrode separators made of glass fiber increases service life
- Does not liberate gas during operation
- Valve system protecting the battery against increased pressure
- Highly effective lead-calcium electrode grids increasing capacity
- Lowered self-discharge current
| Battery type | Lead-acid AGM type storage battery |
| Rated voltage, V | 12 |
| Maximum discharge current, A | 1000 |
| Capacity (20 hours discharge), А • h | 100 |
| Maximum charging current, A | 30 |
| Internal resistance, MOhm | 6.5 |
| Self-discharge (at 25 °C of initial capacity) during the year | up to 36 % |
| Rated operating temperature, °C | 25 |
| Operating temperature range, °C | -20 up to +50 |

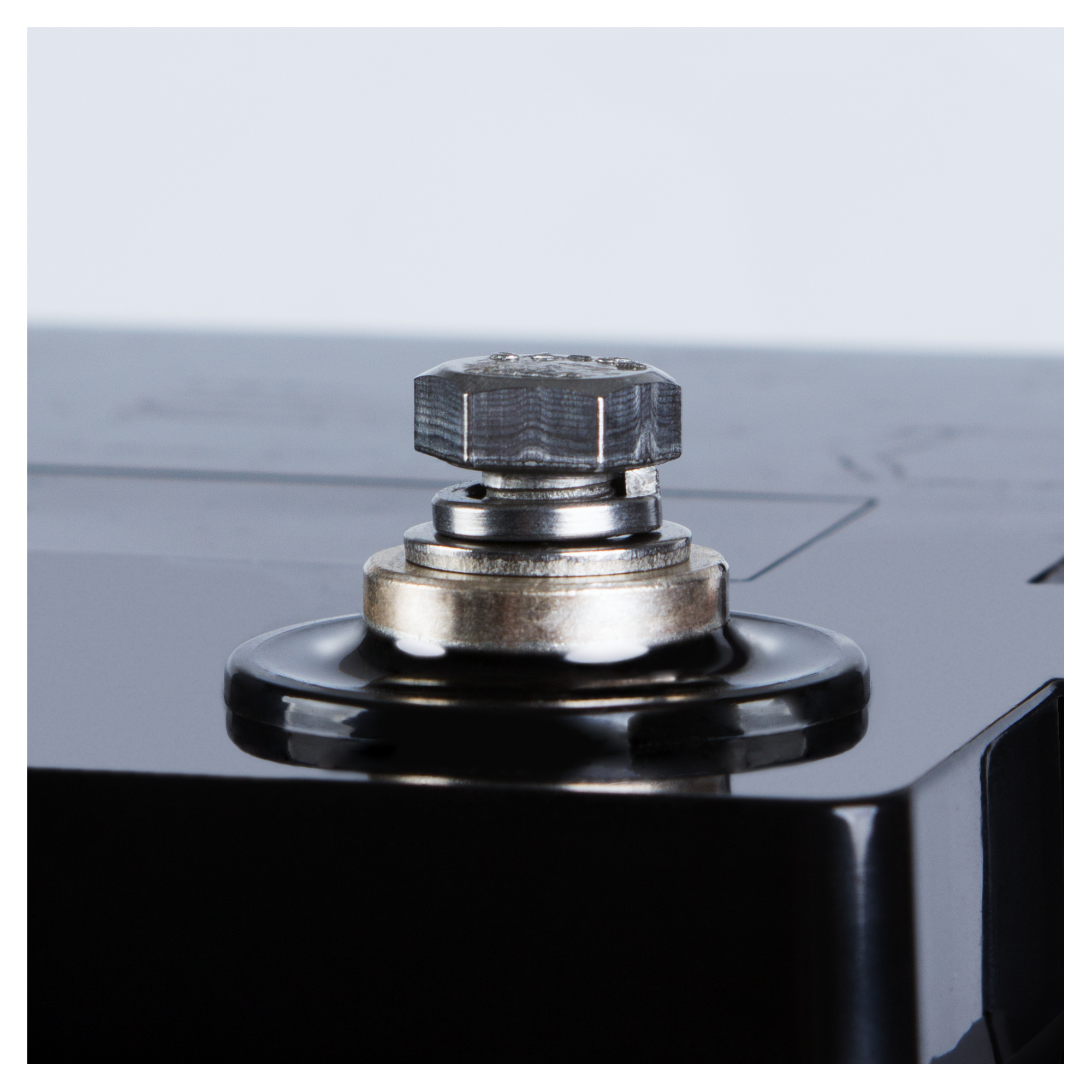

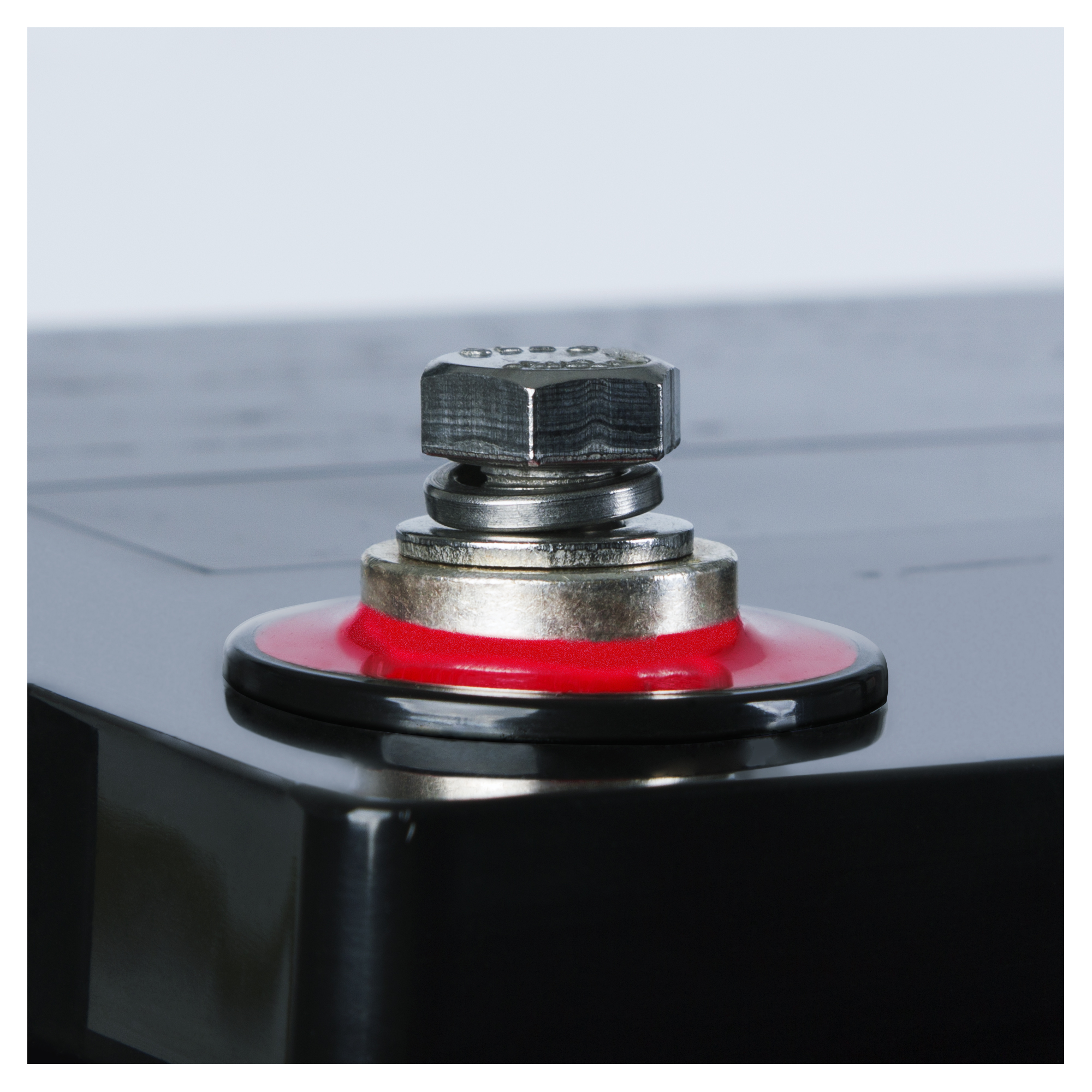

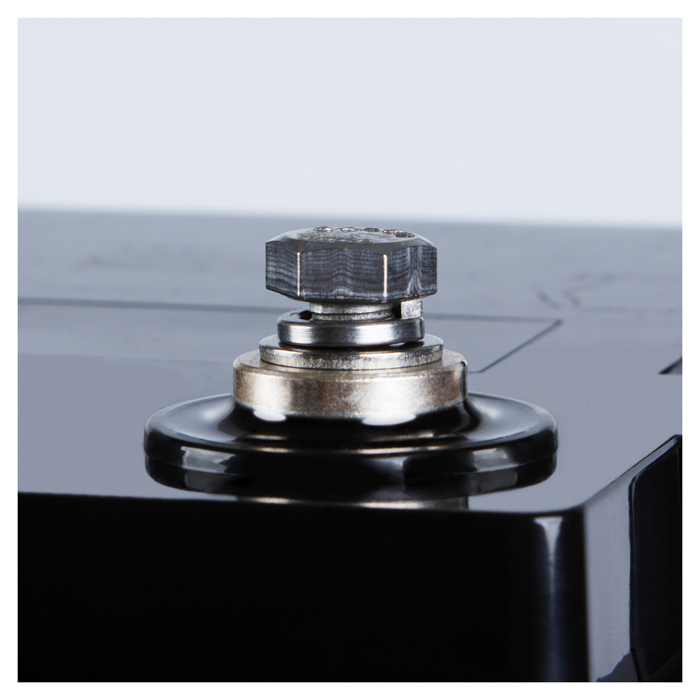

| Terminal type | T11 (M8) |
| Length, mm | 331 |
| Width, mm | 173 |
| Hight, mm | 213 |
| Total hight, mm | 233 |
| Weight, kg | 29.5 |
| Color | black |
| Life time | 8 years |
Other items
News
21.08.2025
SVEN PS-395 PORTABLE SPEAKER — A CLASSIC FORMAT IN A NEW INTERPRETATION
We continue to delight fans of portable speakers by offering increasingly original models - both in design and construction. Our engineers not only regularly update the design of speakers, but also rethink familiar formats.
Details >>
13.08.2025
SVEN RX-G980W GAMING MOUSE — PRECISION, SPEED AND COMPLETE FREEDOM OF ACTION
Just look at the new gaming mouse SVEN RX-G980W and you will see that this is a true flagship device which combines the most modern technologies from the world of computer-game peripherals.
Details >>
15.07.2025
SVEN AP-B800MV FULL-SIZE HEADSET — HARMONY OF SOUND AND SILENCE
We continue to develop the line of stylish and technological headphones, combining in new models everything that is important for a modern user: from high level of reliability and comfort to availability of the most advanced functions.
Details >>As of today the lead-acid maintenance-free batteries of AGM type are the most widespread type of batteries for the reserve power supply. The main fields of application are UPS; light, alarm and security systems; direct-current power supply; automatic control system.
Batteries of SVEN SV series are notable for the following specifications: low self-discharge current, wide operation temperature range, high coefficient of efficiency and quality of manufacture.
The most optimal variant of the use of external SVEN SV12500 and SVEN SV121000 storage batteries is their application jointly with Reserve Home UPS (Reserve Home-500, Reserve Home-800 or Reserve Home-1000) for uninterrupted power supply of heating systems, communication systems, security and fire systems. More information see in "Selection of uninterrupted power supply systems".
