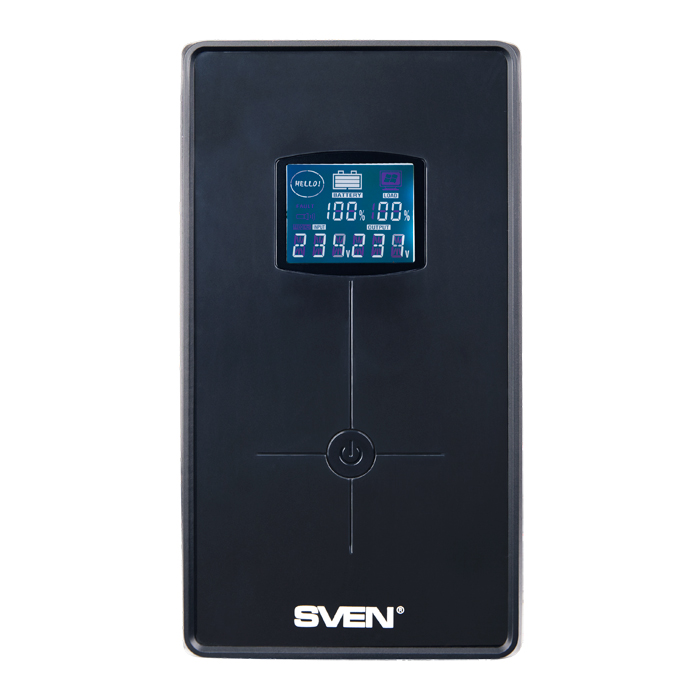

SVEN Pro+ 650 (LCD, USB)
SVEN Pro+ 650 (LCD, USB)
Short product description:
- Wide range of input voltage auto regulation
- Digital microprocessor control
- Indication of basic UPS operation modes
- Sound alarm at critical discharge level of storage batteries...
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1000 (USB)
SVEN Pro 1500 (LCD, USB)
SVEN UP-L800
SVEN UP-L1000E
SVEN RT-500
SVEN RT-1000
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Wide range of input voltage auto regulation
- Digital microprocessor control
- Indication of basic UPS operation modes
- Sound alarm at critical discharge level of storage batteries (without switch-off option)
- Sine approximated output voltage in off-line mode
- Cold start function
- Multifunction LCD display
- Transformer thermal protection
- Metal case
| UPS type | line-interactive |
| Total power, VА | 650 |
| Active power, W | 390 |
| Type of load | computer, monitor |
| Maximum load, W | 390 |
| Input voltage level, V | ~165 – 275 |
| Output voltage level, V | ~220 ± 10 % |
| Output voltage waveform | approximated sinusoid |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 ± 1 % (backup mode) |
| Communication port | USB, RJ-11 |
| Input socket | CEE 7/7 |
| Output sockets | CEE 7/4 |
| Protection | against short circuit, impulse and high frequency interferences; transformer thermal protection |
| Accumulator type | maintenance-free sealed lead-acid batteries (consumables) |
| Battery voltage, V | 12 |
| Battery capacity, А•h | 7 |
| Typical switching time, ms | ≤ 10 |
| Batteries operation time, min | 3 – 20, depending on the connected loading |
| Indicators | power LED, on-line operation LED, charge LED |
| Fuse | current limiter of voltage transducer |
| Environmental temperature, °С | 0 – 40 |
| Relative humidity, % | 10 – 90 |
| Efficiency, % | 80 |
| Case material | metal |
| Dimensions (W × H × D), mm | 95 × 165 × 340 |
| Weight, kg | 5.5 |
| Color | black |
| Life time | 5 years |
Other items
News
SVEN VR-F600 AUTOMATIC VOLTAGE REGULATOR — FULL POWER SAFETY CONFIDENCE
SVEN automatic voltage regulators range is well known to users seeking for truly high-quality and reliable protection of electrical appliances as comfortable as possible and without excessive costs.
Details >>
SVEN SF-10E-16 EXTENSION SURGE PROTECTOR — SAFE CONNECTION OF UP TO TEN DEVICES
The main thing that is interesting about SVEN SF-10E-16 is, undoubtedly, the safe and convenient connection of up to 10 devices at once, and with a solid total power.
Details >>
SVEN MC-50 ACOUSTIC HI-FI SYSTEM — PEOPLE'S FLAGSHIP FROM THE LEGENDARY LINE
For decades, multimedia 2.0 acoustics from our company have enabled a wide range of music lovers to experience real Hi-Fi. Our speakers have always been appreciated not only for their good sound, but also for their affordable price.
Details >>SVEN Pro+ 650 line-interactive UPS is designed for protection of PCs, workstations, as well as servers equipped with switch power supplies. Due to its battery, the UPS can operate even in case of complete absence of mains power, which gives the user a possibility to save data and shut down the operating system correctly. The built-in automatic voltage regulator allows increasing/reducing the input voltage without switching to battery mode and ensures long uninterruptible work. This feature is vital for networks with unstable voltage.
SVEN Pro+ 650 UPS is supplied with Cold Start function, allowing to switch on the UPS in conditions of complete absence of mains voltage. The built-in USB port gives a possibility to monitor the mains from your PC and shut down the PC in automatic mode. Besides, The UPS is equipped with a multifunction LCD display showing the mains status, load and battery discharge level.
