SVEN Reserve Home-500
SVEN Reserve Home-500
Short product description:
- Continuous action with prolonged back-up time
- Regular sinusoidal output signal
- Microprocessor control
- Intellectual charger for connected external batteries (stora...
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1000 (USB)
SVEN Pro 1500 (LCD, USB)
SVEN UP-L800
SVEN UP-L1000E
SVEN RT-500
SVEN RT-1000
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Continuous action with prolonged back-up time
- Regular sinusoidal output signal
- Microprocessor control
- Intellectual charger for connected external batteries (storage batteries) with the “training” mode of batteries
- Protection against short circuit, overvoltage or undervoltage of the mains and overload
- IP-20 ingress protection
- Self-diagnosis after switching on

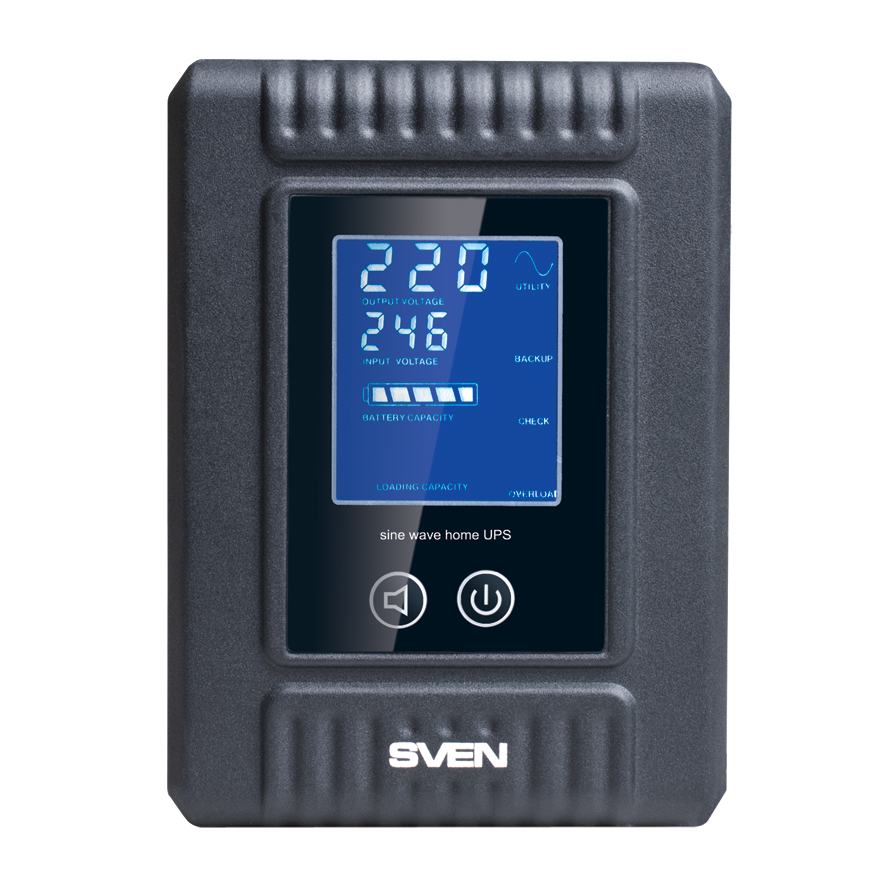

- Indication of operation modes on LCD display
- Mode switchover time ≤ 5 msec
- Built-in line regulator
- Automatic start function
- Low noise level
| UPS type | line-interactive of continuous action with long backup time |
| Built-in AVR | available |
| Total power, VА | 500 |
| Active power, W | 300 |
| Type of load | household and industrial equipment |
| Maximum load, W | 300 |
| Input voltage level, V | ~150 – 275 |
| Output voltage level, V | ~220 ± 10 % |
| Output voltage waveform | regular sinusoidal signal |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 |
| Number of phases | 1 |

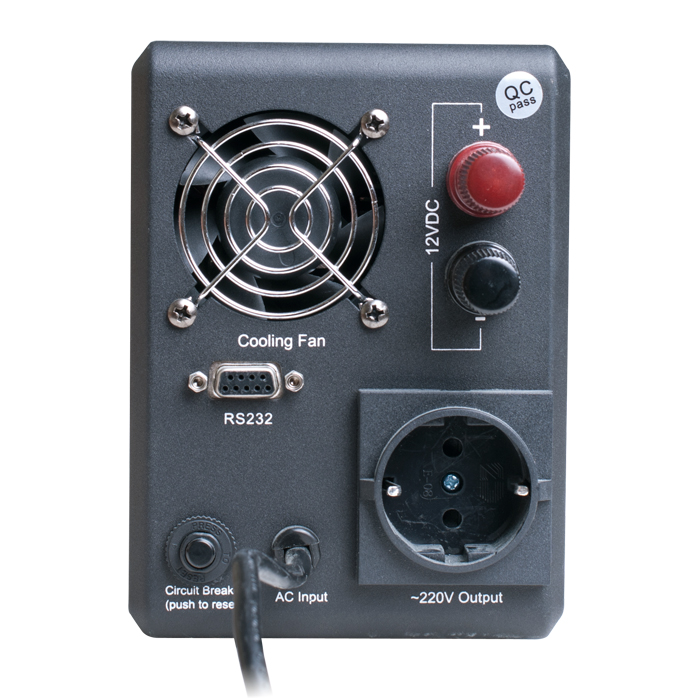

| Communication port | RS232 |
| Input terminals | terminals for battery connection |
| Input socket | 1 × CEE 7/7 |
| Output sockets | 1 × CEE7/4 |
| Allowable overload of the rated power, % | ≤ 110 |
| Overload protection acting, % | 120 |
| Protection | against short circuit, overvoltage or undervoltage of the mains and overload |
| Beeps | low battery charge, overload, error |
| Accumulator type | non-serviceable leakproof lead-acid batteries (not included) |
| Typical switching time, ms | < 5 |
| Cooling type | convective; by fan |
| Indication | operation modes on LCD display |
| Operation mode | continuous action with long backup time |
| Noise level, dB | 45 |
| Operating temperature, °С | from -5 to +40 |
| Operating humidity, % | 10-90, without condensation |
| Efficiency, % | 65 |
| Case material | metal |
| Dimensions (W × H × D), mm | 115 × 165 × 344 |
| Weight, kg | 4.6 |
| Color | black |
| Life time | 5 years |
Other items
News
SVEN PS-990 PORTABLE BOOMBOX SPEAKER — POWERFUL SOUND EVEN UNDER WATER
We introduce you the new portable acoustic system SVEN PS-990, which combines seemingly incompatible features: high power, compact, stylish design and water protection. This model is designed for those who are not used to limit parties to the walls of the house.
Details >>
SVEN PS-395 PORTABLE SPEAKER — A CLASSIC FORMAT IN A NEW INTERPRETATION
We continue to delight fans of portable speakers by offering increasingly original models - both in design and construction. Our engineers not only regularly update the design of speakers, but also rethink familiar formats.
Details >>
SVEN RX-G980W GAMING MOUSE — PRECISION, SPEED AND COMPLETE FREEDOM OF ACTION
Just look at the new gaming mouse SVEN RX-G980W and you will see that this is a true flagship device which combines the most modern technologies from the world of computer-game peripherals.
Details >>SVEN RESERVE HOME uninterrupted power supplies developed and produced by SVEN Company are the ideal solution for the uninterrupted power supply for heating systems, intellectual fire-control units and security systems, automation and refrigeration systems, etc. in conditions of low quality level of power supply or in case of its complete absence.
They are designed for equipment, which is critical to the input current form: gas boilers, refrigeration equipment, devices with electric motors, compressors, transformers, etc., where UPS with clear output sinusoid is required.
SVEN RESERVE HOME line-interactive uninterrupted power supplies with a proper sinusoid in combination with batteries SVEN SV12500 and SVEN SV121000 are the optimal and universal choice to create the uninterrupted power supply system based on the price, consumer properties, coefficient of efficiency and battery service life.
Notice! Batteries are not included.
