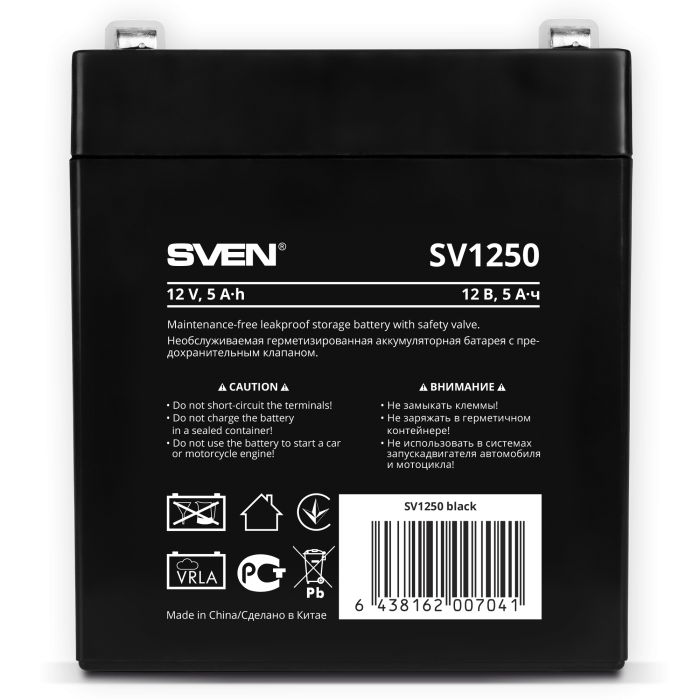

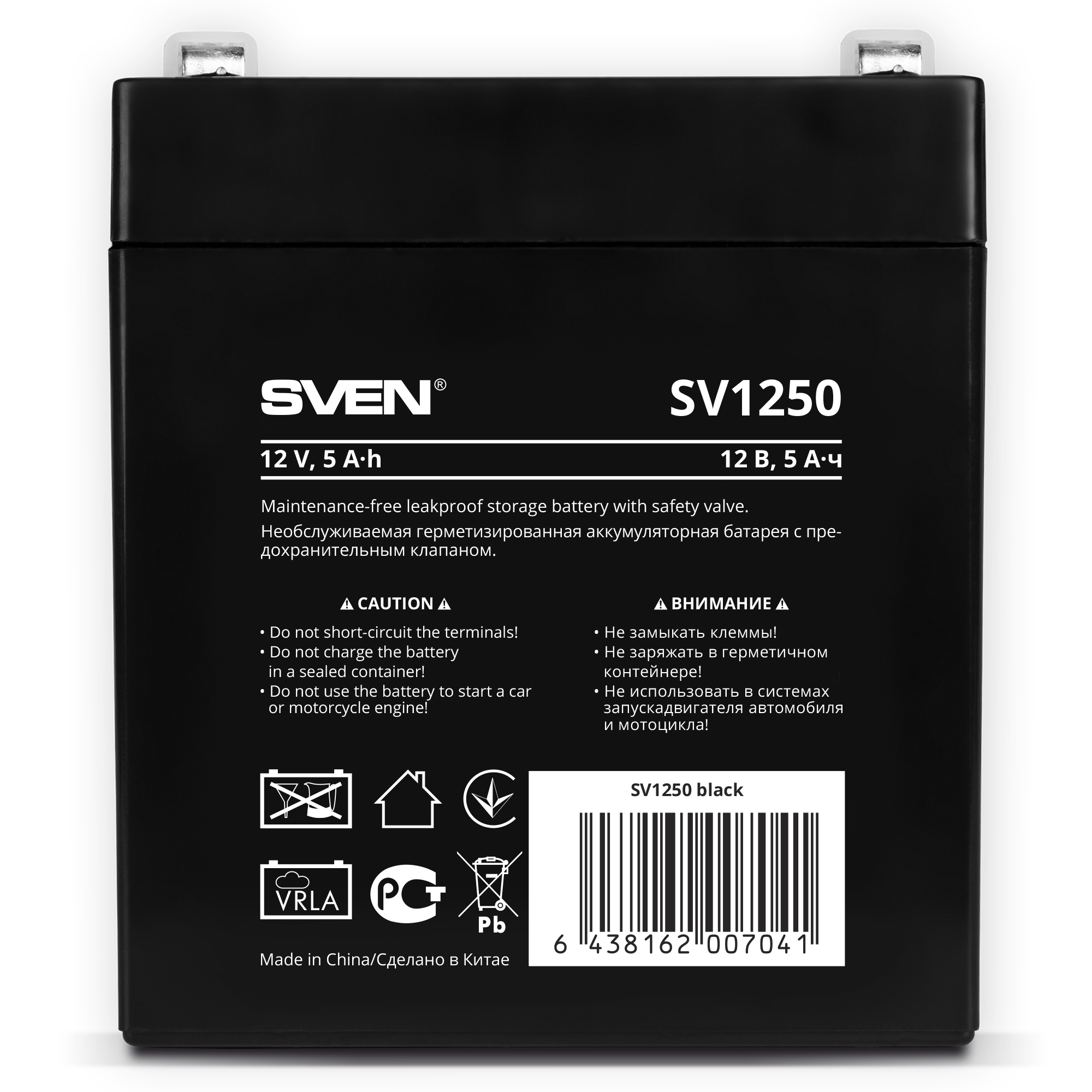

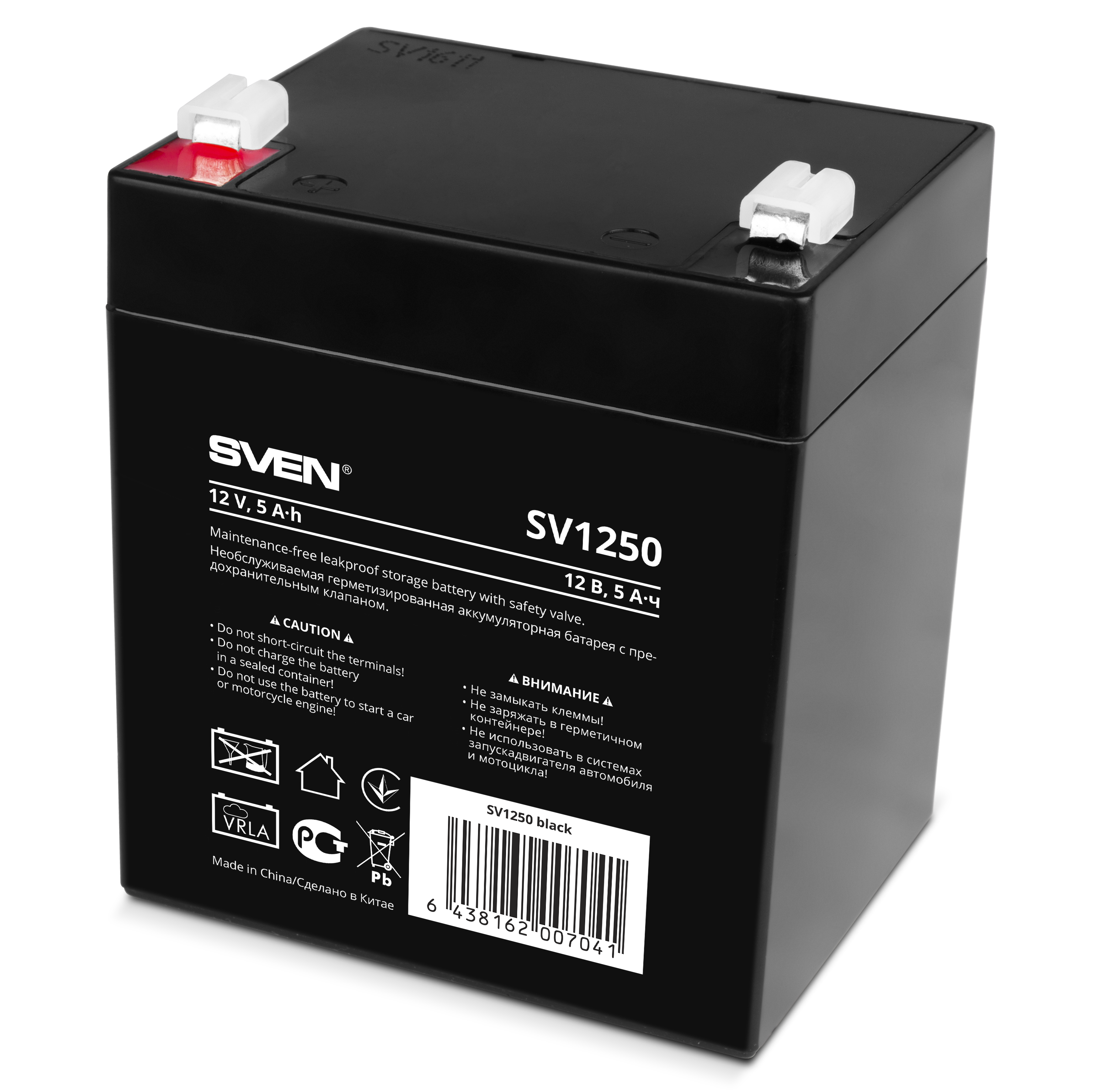

SVEN SV1250

UPS battery 12V 5Ah

Catalog Electrical Equipment Batteries SVEN SV1250

AN: SV-0222005

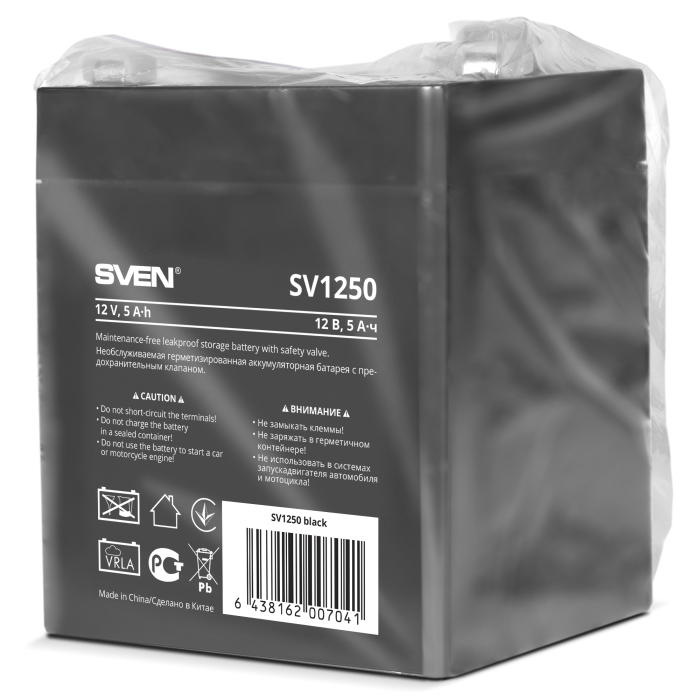

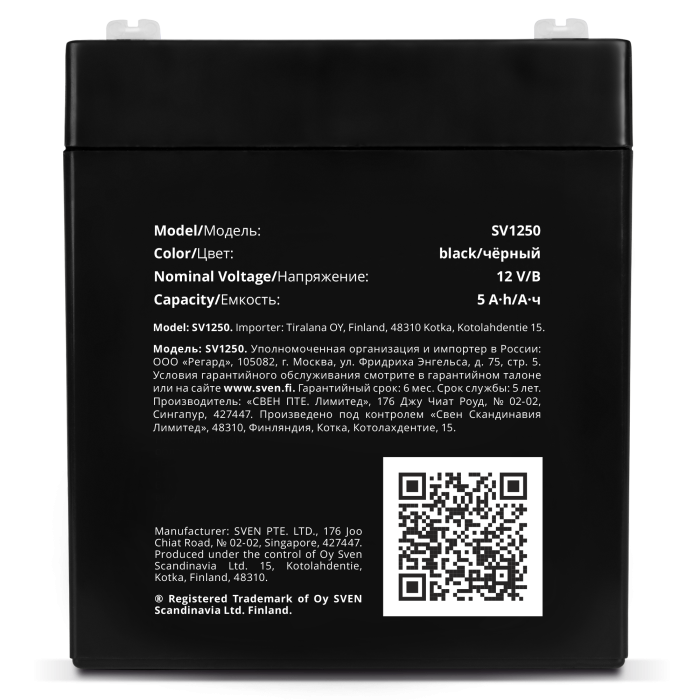

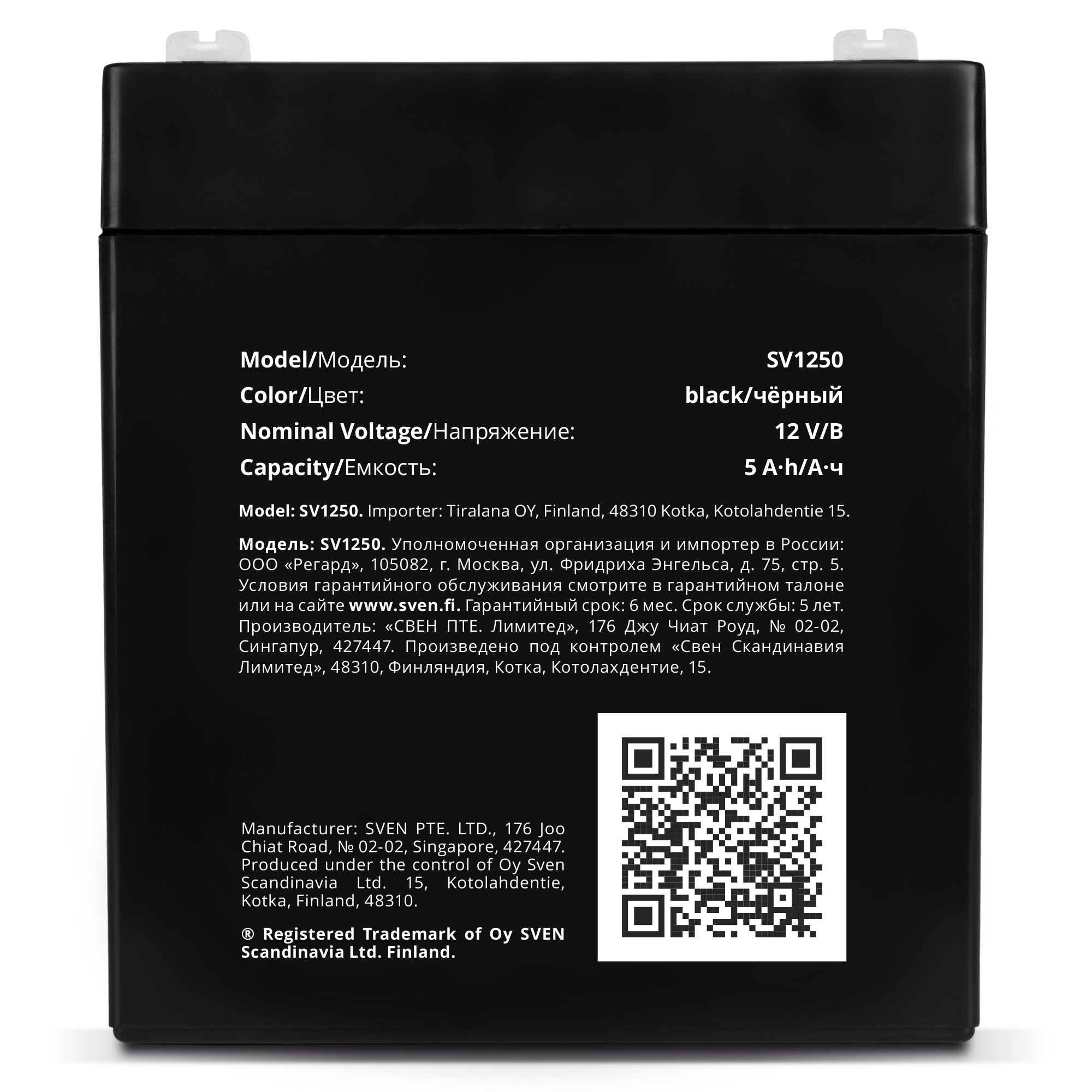

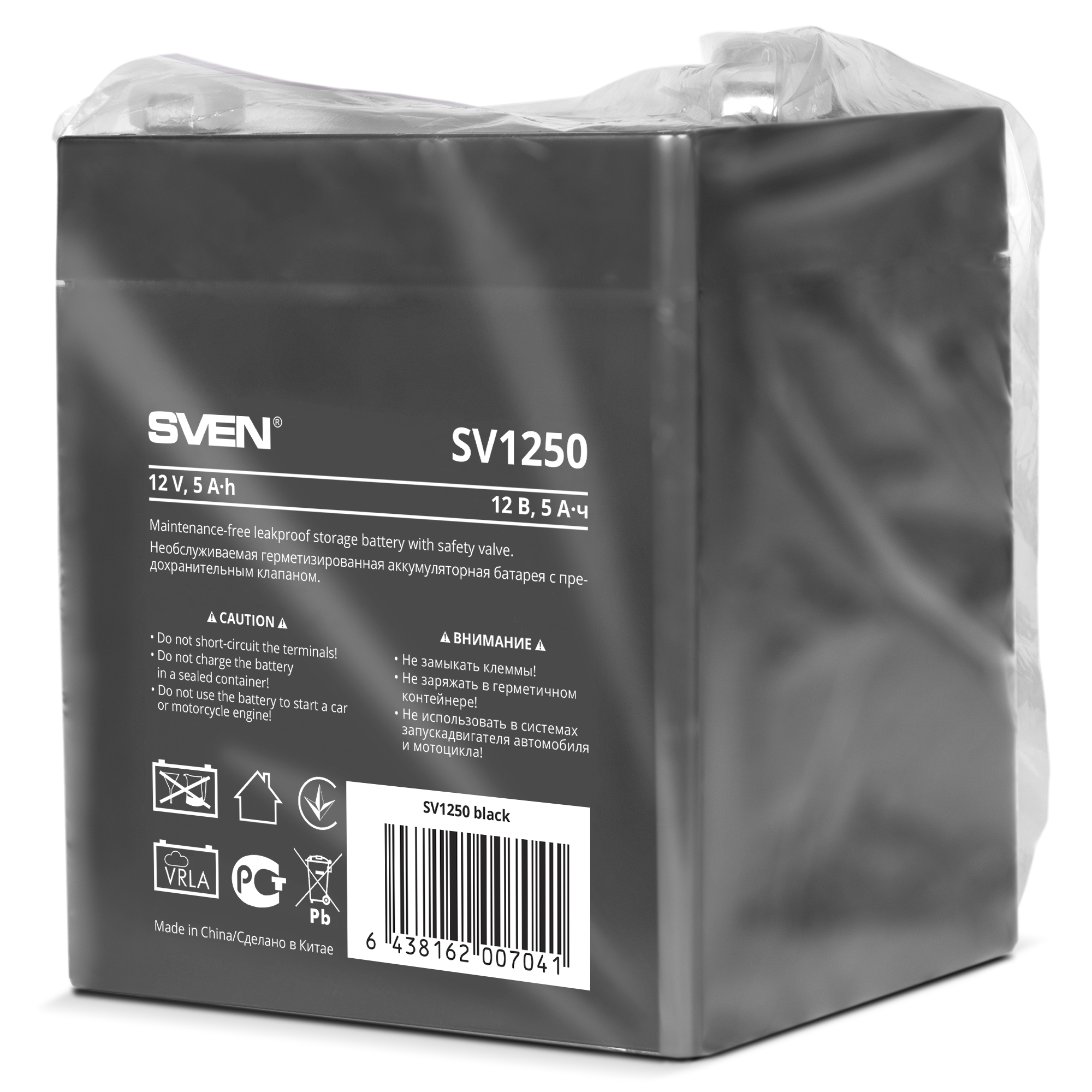

SVEN SV1250

UPS battery 12V 5Ah

Short product description:

Lead-acid battery of AGM type
Leak-proof design
Doesn't require maintenance and service
Increased service life

All features

Similar products

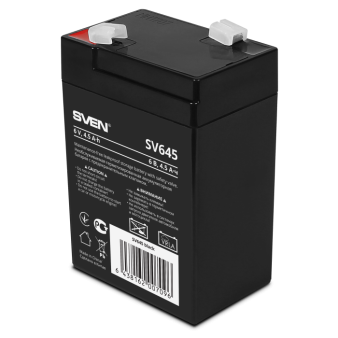

SVEN SV645

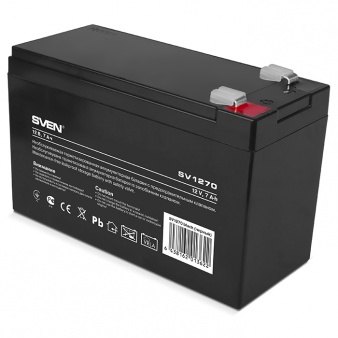

SVEN SV1270

SVEN SV1272

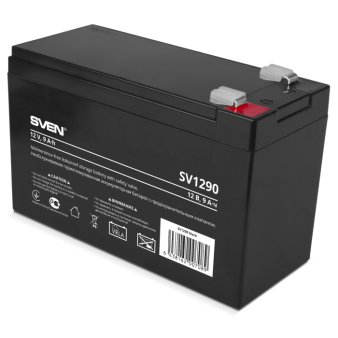

SVEN SV1290

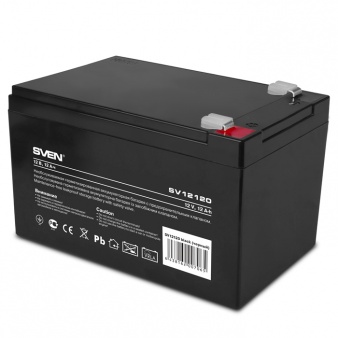

SVEN SV12120

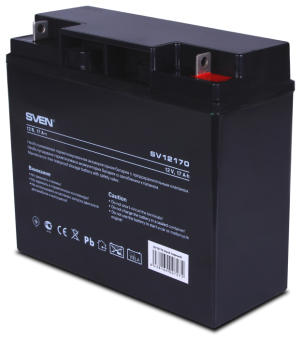

SVEN SV12170

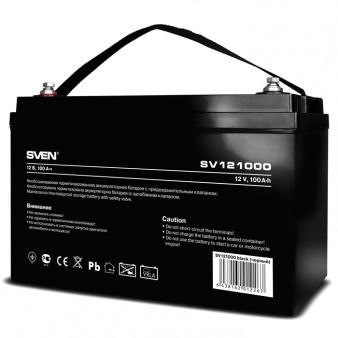

SVEN SV121000

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Lead-acid battery of AGM type
Leak-proof design
Maintenance-free: doesn't require maintenance and can operate in any position
Design of interelectrode separators made of glass fiber increases service life
Does not liberate gas during operation
Valve system protecting the battery against increased pressure
Highly effective lead-calcium electrode grids increasing capacity
Lowered self-discharge current

Battery type	Lead-acid AGM type storage battery
Rated voltage, V	12
Maximum discharge current, A	80
Capacity (20 hours discharge), А • h	5
Maximum charging current, A	1.5
Internal resistance, MOhm	27
Self-discharge (at 25 °C of initial capacity) during the year	up to 36 %
Rated operating temperature, °C	25
Operating temperature range, °C	-20 up to +50
Terminal type	F1
Length, mm	90
Width, mm	70
Hight, mm	101
Total hight, mm	106
Weight, kg	1.5
Color	black
Life time	5 years

Other items

SVEN VR-L1000

Relay automatic voltage regulator, 320 W, 2 sockets

SVEN E-110

Wired in-ear earbuds

SVEN AP-545MV

On-ear wired headset

SVEN E-310B

TWS earbuds with ANC

SVEN 315

Speakers with volume control on the back

SVEN VR-L600

Relay automatic voltage regulator, 200 W, 2 sockets

SVEN HP

Fabric mouse pad with rubber backing

SVEN RX-G800

Programmable gaming mouse

SVEN AVR SLIM-2000 LCD

Relay automatic voltage regulator, wall-mounted, LCD, 1200 W, 2 sockets

SVEN GC-W700 Racing Wheel

Windows compatible gaming steering wheel with shift lever

SVEN AP-G999MV

Gaming headset with metal cups and detachable microphone

SVEN PS-550

Multifunctional portable karaoke speaker system with backlight

As of today the lead-acid maintenance-free batteries of AGM type are the most widespread type of batteries for the reserve power supply. The main fields of application are UPS; light, alarm and security systems; direct-current power supply; automatic control system.

Batteries of SVEN SV series are notable for the following specifications: low self-discharge current, wide operation temperature range, high coefficient of efficiency and quality of manufacture.
